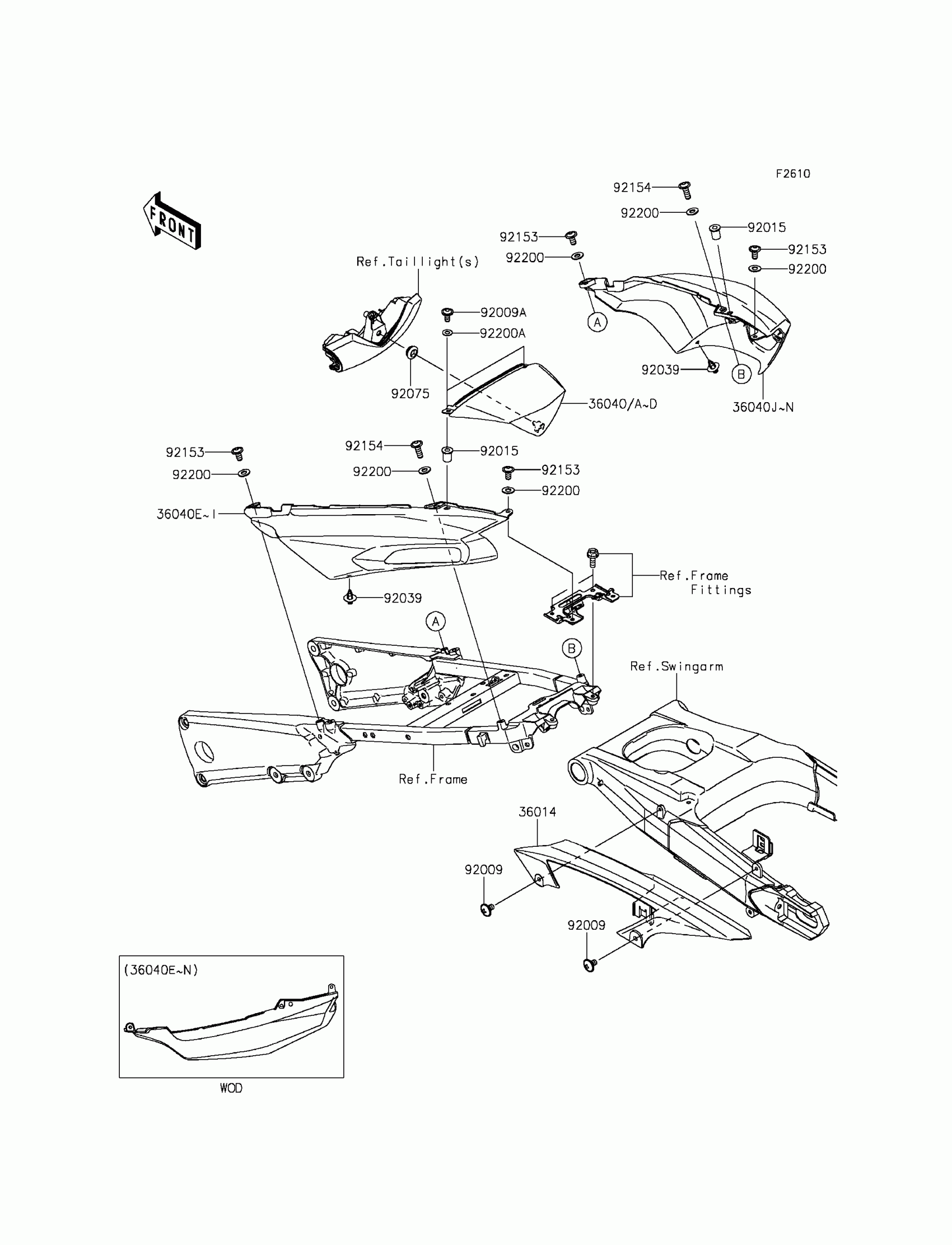

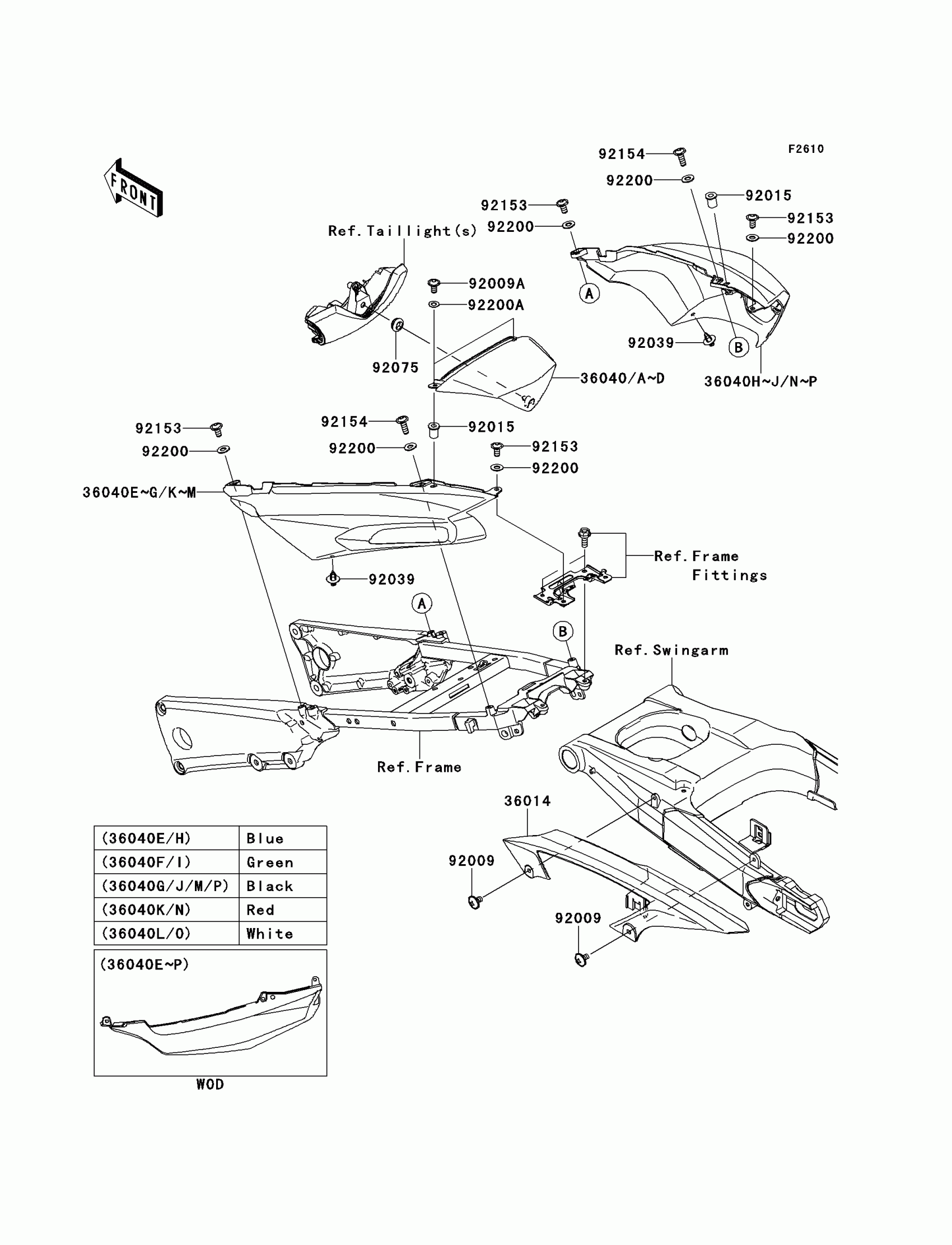

Kawasaki NINJA® ZX™-14R Side Covers/Chain Cover Diagram

Description

Price

36014

CASE-CHAIN

36014-0030

$74.54

36040

COVER-TAIL,CNT,C.B.ORANGE

36040-0058-17L

$99.85

36040A

COVER-TAIL,CNT,G.B.GREEN

36040-0058-40R

$96.47

36040B

COVER-TAIL,CNT,F.EBONY

36040-0058-45L

$95.58

36040E

COVER-TAIL,LH,C.B.ORANGE

36040-0136-17L

$268.20

36040F

COVER-TAIL,LH,G.B.GREEN

36040-0136-40R

$258.19

36040G

COVER-TAIL,LH,F.EBONY

36040-0136-45L

$255.85

36040J

COVER-TAIL,RH,C.B.ORANGE

36040-0137-17L

$268.20

36040K

COVER-TAIL,RH,G.B.GREEN

36040-0137-40R

$258.19

36040L

COVER-TAIL,RH,F.EBONY

36040-0137-45L

$255.85

92009

SCREW,6X10

92009-1661

$4.31

92009A

SCREW,5X16

92009-1909

$2.03

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-1289

$2.80

92075

DAMPER,6X16X7

92075-1011

$7.33

92153

BOLT,SOCKET,6X12

92153-1617

$1.34

92154

BOLT,SOCKET,6X18

92154-0139

$1.74

92200

WASHER,6.5X14X1

92200-1388

$2.46

92200A

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.59
