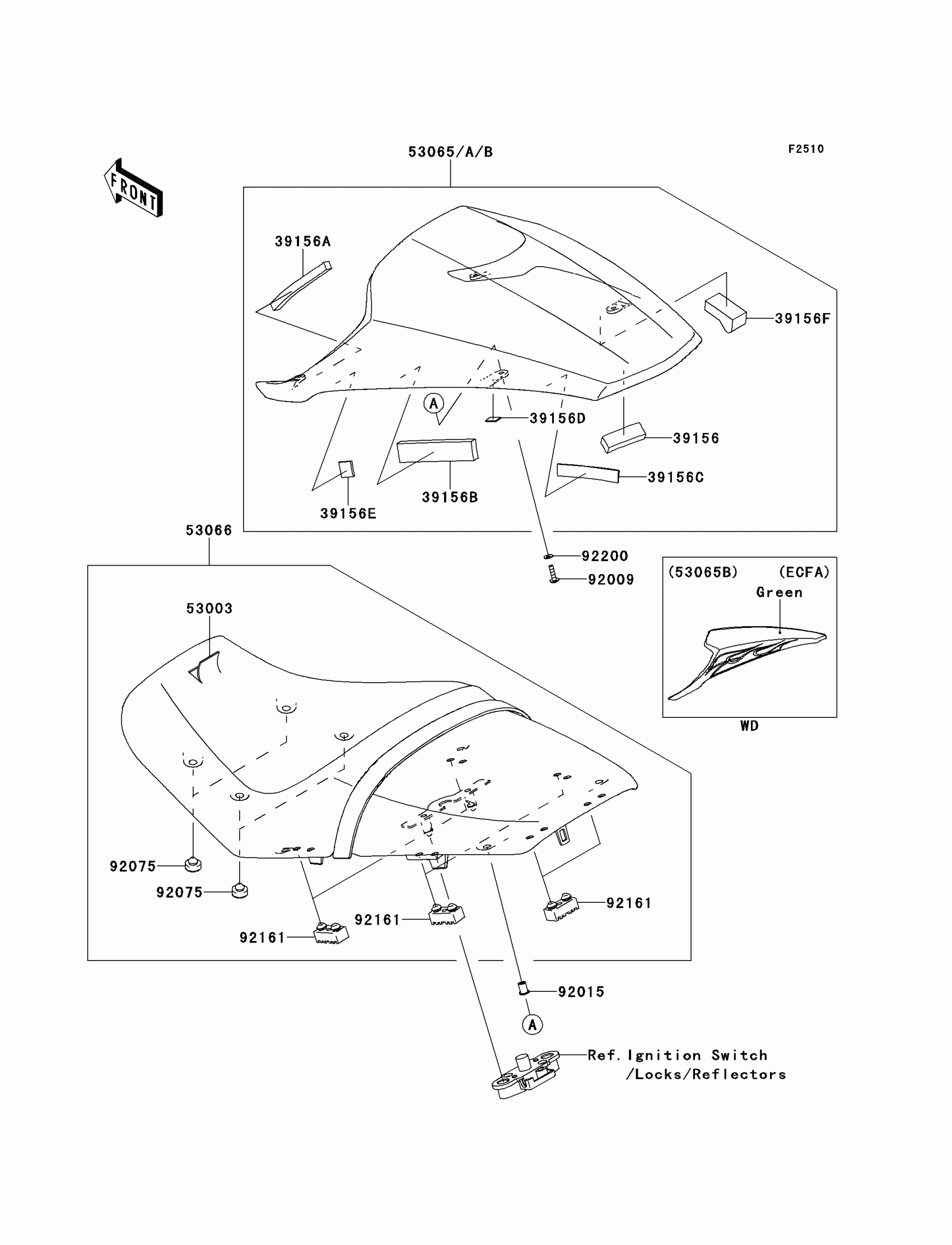

Kawasaki NINJA® ZX™-14R Seat(ECF/ECFA) Diagram

Description

Price

39156

PAD,20X50X11

39156-0839

$1.93

39156A

PAD,10X130X10

39156-0880

$3.70

39156B

PAD,25X120X10

39156-0881

$3.70

39156C

PAD,15X90X2

39156-0883

$3.32

39156D

PAD,12X16X1.5

39156-0884

$1.93

39156E

PAD,20X20X3

39156-0896

$1.81

39156F

PAD

39156-0919

$11.88

53003

LEATHER,SEAT,BLACK

53003-0314-MA

$221.23

53065

COVER SEAT,C.S.BLUE

53065-0066-25V

Unavailable

53065A

COVER SEAT,M.S.BLACK

53065-0066-660

Unavailable

53066

SEAT-ASSY,DUAL,W/BAND,BLK+BLK

53066-0328-12Y

$565.99

92009

SCREW,5X20

92009-1934

$1.52

92015

NUT,WELL,5MM

92015-1757

$7.29

92075

DAMPER,10X20X8

92075-1927

$4.39

92161

DAMPER,SEAT

92161-0050

$7.68

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.59
