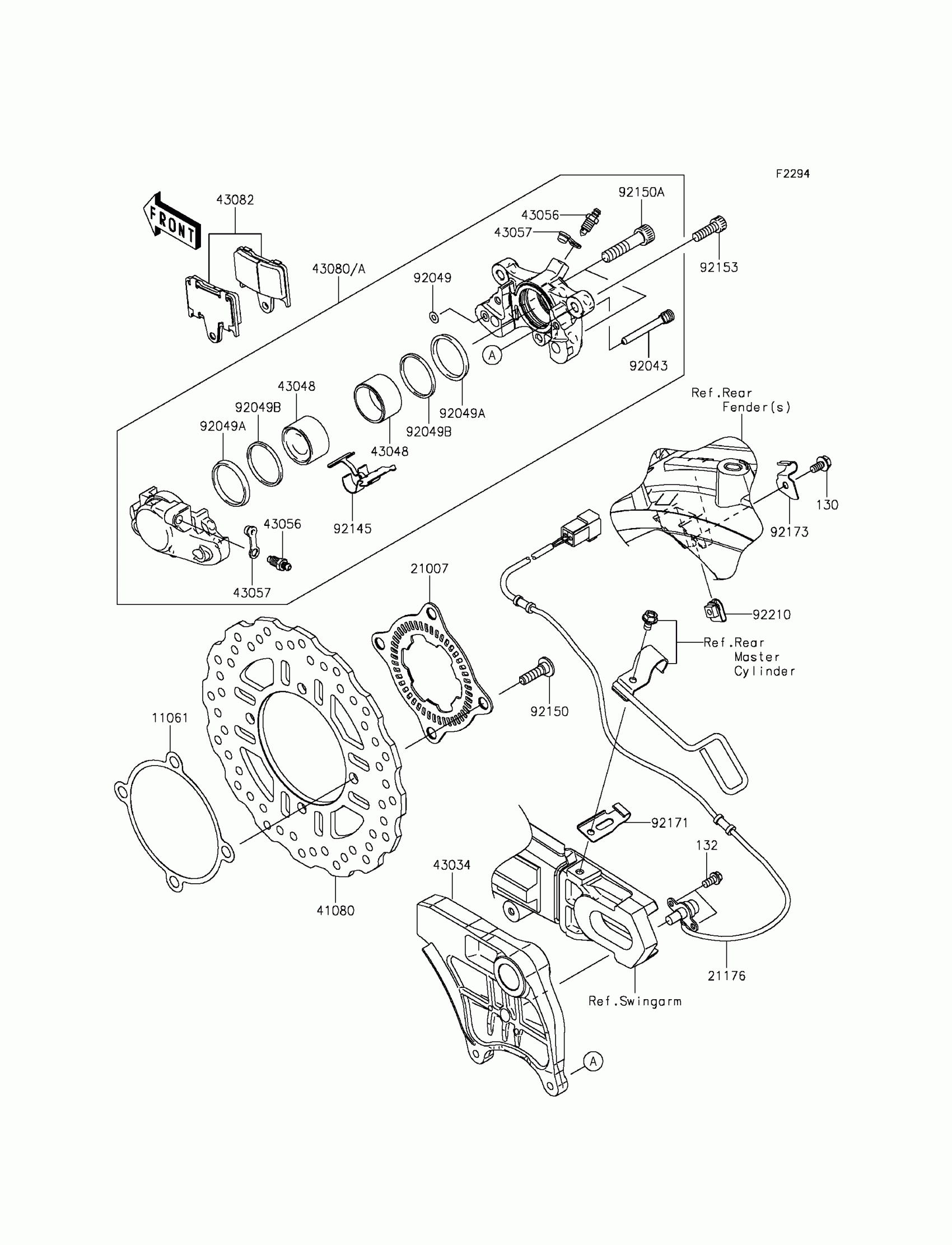

Kawasaki NINJA® ZX™-14R Rear Brake Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BB0614

$2.49

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

11061

GASKET,DISC PLATE

11061-0204

$21.82

21007

ROTOR,SENSOR,RR

21007-0141

$89.65

21176

SENSOR,SPEED,RR

21176-0060

$133.34

41080

DISC,RR

41080-0089

$334.16

43034

HOLDER-BRAKE,REAR CALIPER

43034-0091

$113.30

43048

PISTON-CALIPER

43048-0017

$38.36

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0088-DJ

$298.03

43080A

CALIPER-SUB-ASSY,RR,RED

43080-0088-46D

$312.53

43082

PAD-ASSY-BRAKE

43082-0055

$90.89

92043

PIN,PAD

92043-0106

$7.75

92049

SEAL-OIL

92049-1448

$3.92

92049A

SEAL-OIL

92049-1449

$5.00

92049B

SEAL-OIL

92049-1450

$4.31

92145

SPRING,PAD

92145-0379

$5.60

92150

BOLT,SOCKET,8X30

92150-1771

$4.69

92150A

BOLT

92150-1972

$4.87

92153

BOLT,SOCKET,8X25

92153-1625

$4.65

92171

CLAMP

92171-0619

$7.75

92173

CLAMP

92173-0845

$5.92

92210

NUT,6MM

92210-0277

$4.92
