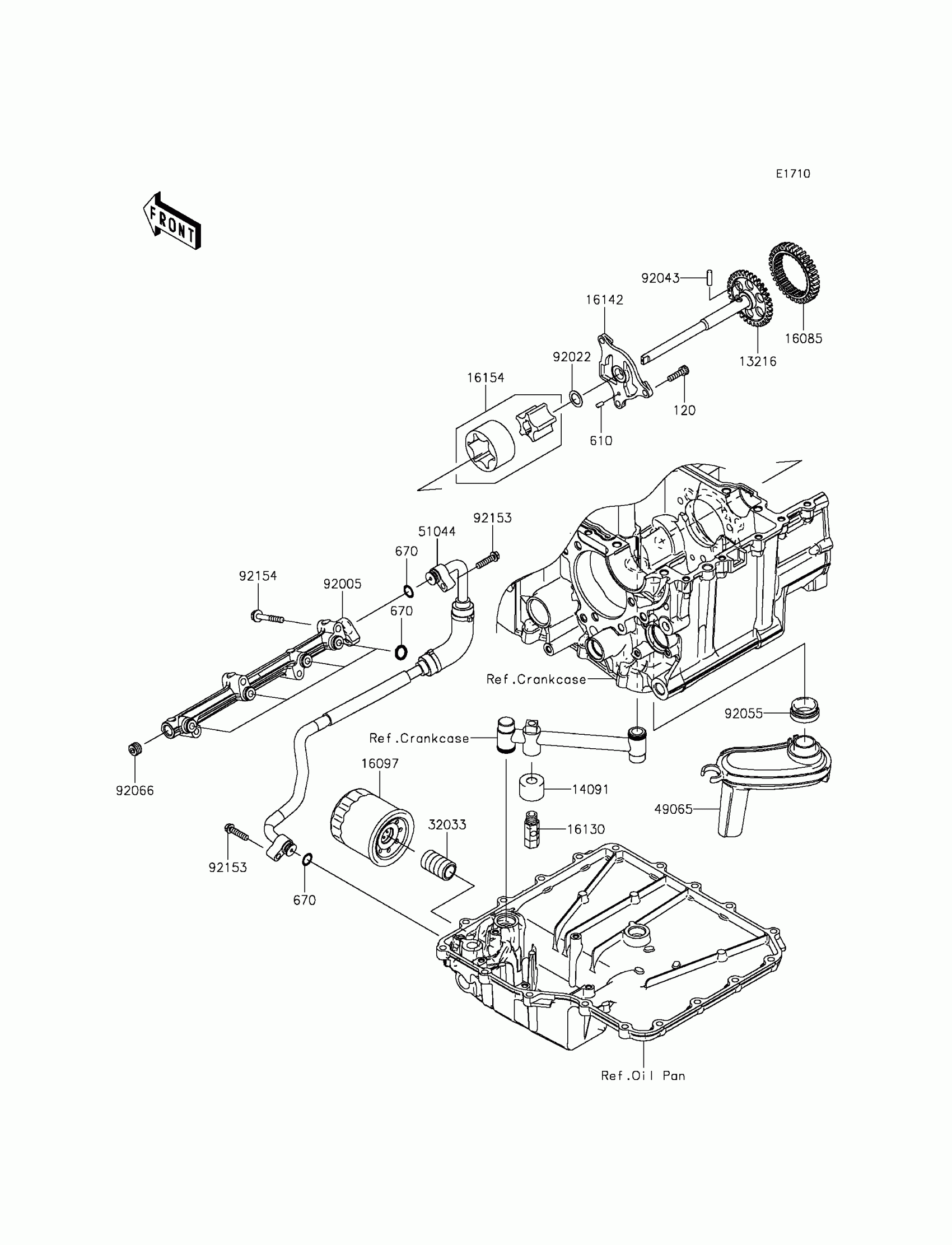

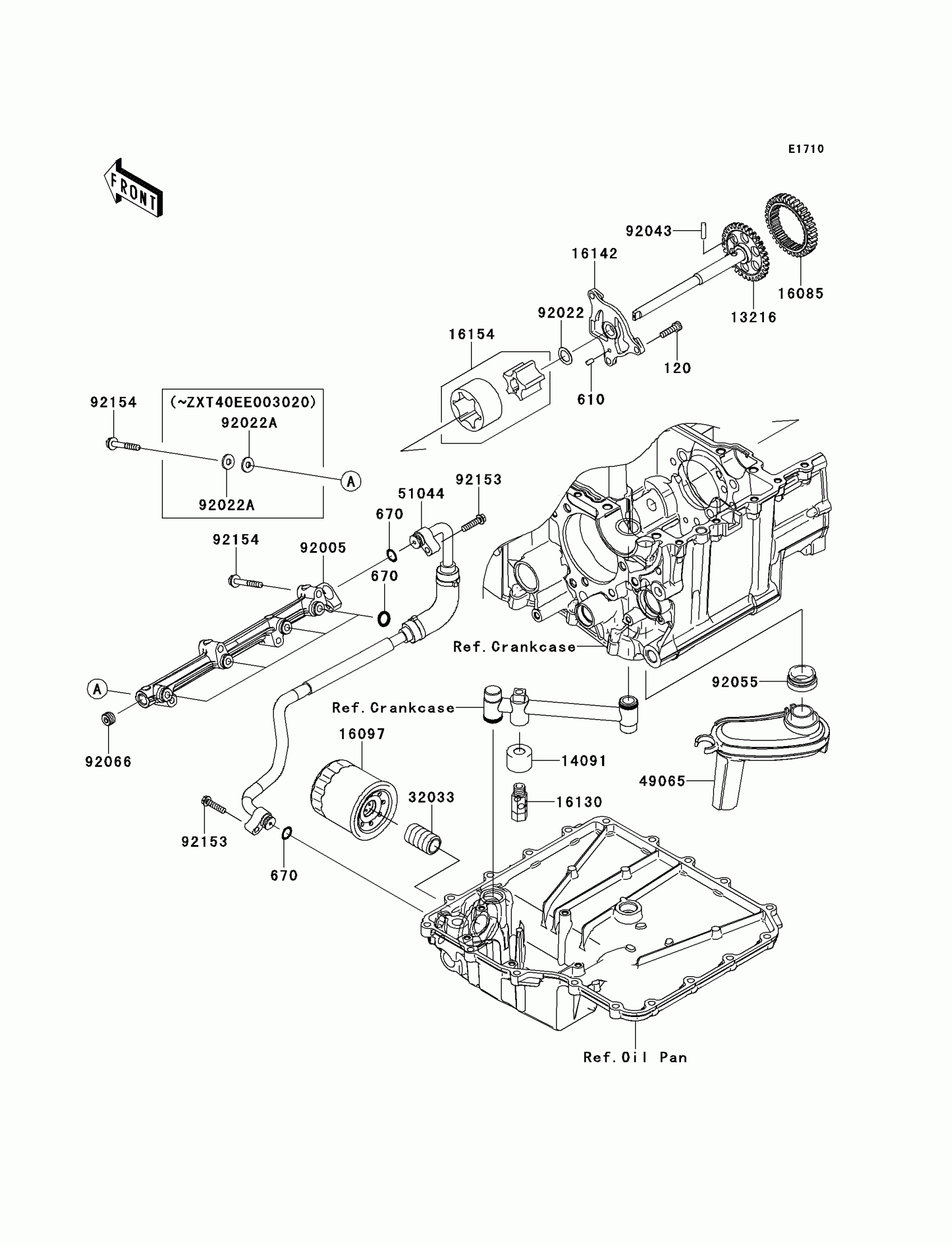

Kawasaki NINJA® ZX™-14R Oil Pump/Oil Filter Diagram

Description

Price

120

BOLT-SOCKET,6X20

120CA0620

$1.77

610

ROLLER,4X8

610A0408

$4.31

670

O RING,11MM

670D2011

$1.39

13216

GEAR-COMP,OIL COMP

13216-0030

$124.54

14091

COVER,VALVE

14091-0497

$5.60

16085

GEAR,34T

16085-0079

$75.22

16097

FILTER-ASSY-OIL

16097-0008

$14.50

16130

VALVE-ASSY-RELIEF

16130-1059

$41.98

16142

COVER-PUMP

16142-0027

$55.77

16154

ROTOR-PUMP

16154-0047

$31.86

32033

PIPE,OIL FILTER

32033-1535

$12.96

49065

FILTER-OIL

49065-0014

$25.19

51044

TUBE-ASSY

51044-0713

$243.98

92005

FITTING

92005-0752

$143.47

92022

WASHER,13.2X20X0.5

92022-1224

$4.31

92043

PIN,17.9X5.0

92043-1444

$4.31

92055

RING-O,OIL FILTER

92055-1503

$9.51

92066

PLUG

92066-3778

$11.06

92153

BOLT,FLANGED,6X25

92153-1795

$2.15

92154

BOLT,FLANGED,6X40

92154-1052

$3.02
