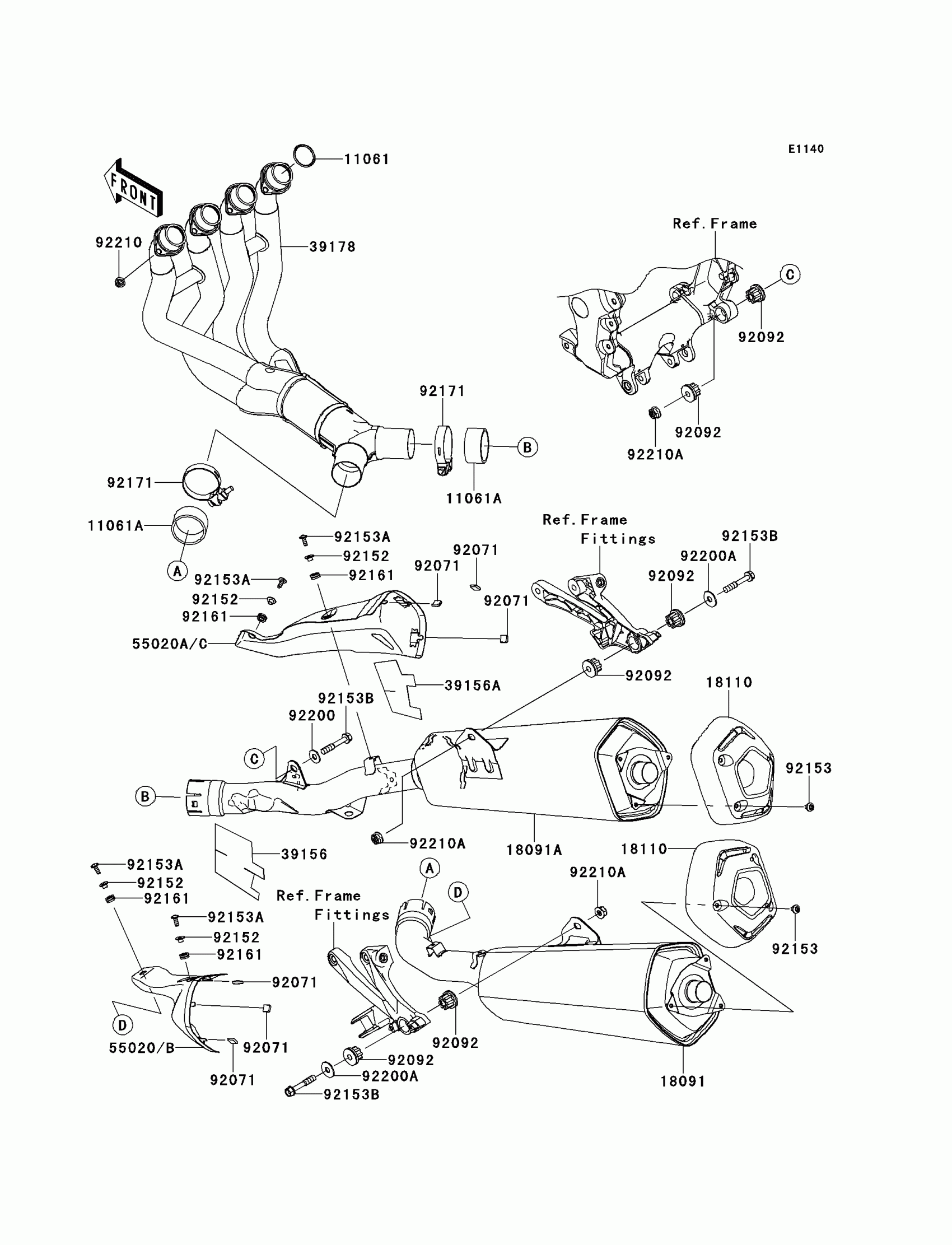

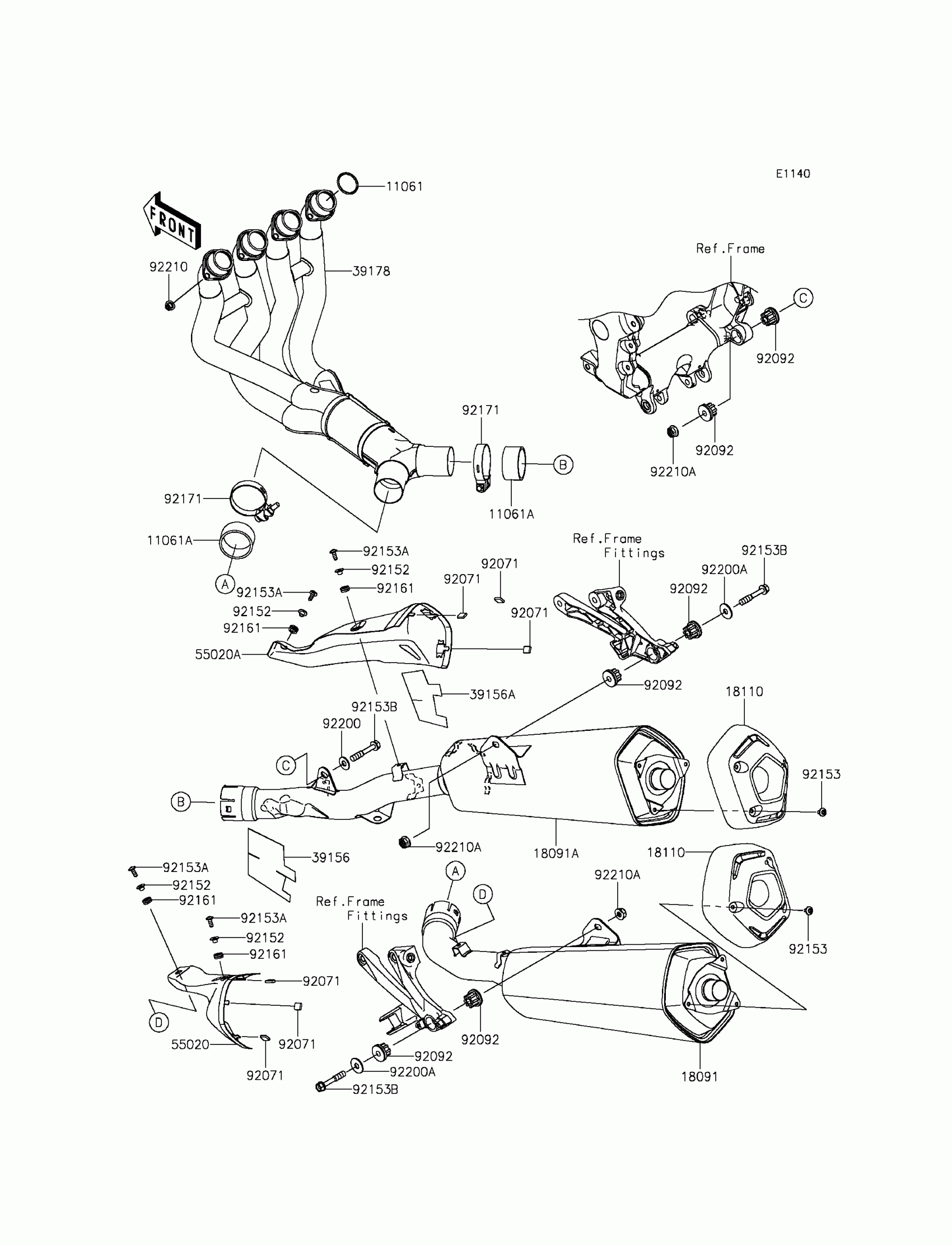

Kawasaki NINJA® ZX™-14R Muffler(s) Diagram

Description

Price

11061

GASKET,EX PIPE

11061-0027

$7.60

11061A

GASKET,54X62X30

11061-0448

$21.89

18091

BODY-COMP-MUFFLER,LH

18091-0804

Unavailable

18091A

BODY-COMP-MUFFLER,RH

18091-0805

Unavailable

18110

BODY END-MUFFLER

18110-0151

$109.79

39156

PAD,LH GUARD

39156-0821

$5.29

39156A

PAD,RH GUARD

39156-0822

$6.57

39178

MANIFOLD-COMP-EXHAUST

39178-0174

$1,293.10

55020B

GUARD,LH

55020-0880

$168.50

55020C

GUARD,RH

55020-0882

$171.37

92071

GROMMET

92071-1270

$7.22

92092

BUSHING-RUBBER,MUFFLER

92092-1087

$19.90

92152

COLLAR,6.3X8.3X16

92152-0286

$5.65

92153

BOLT,SOCKET,6X10

92153-0411

$2.80

92153A

BOLT,SOCKET,6X16

92153-0817

$2.15

92153B

BOLT,SOCKET,10X60

92153-1837

$13.60

92161

DAMPER

92161-0306

$5.65

92171

CLAMP,64.5MM

92171-0683

$23.84

92200

WASHER,10.5X25X2.0

92200-1377

$4.18

92200A

WASHER

92200-3762

$2.61

92210

NUT,8MM

92210-0076

$5.48

92210A

NUT,10X1.25

92210-0316

$11.30
