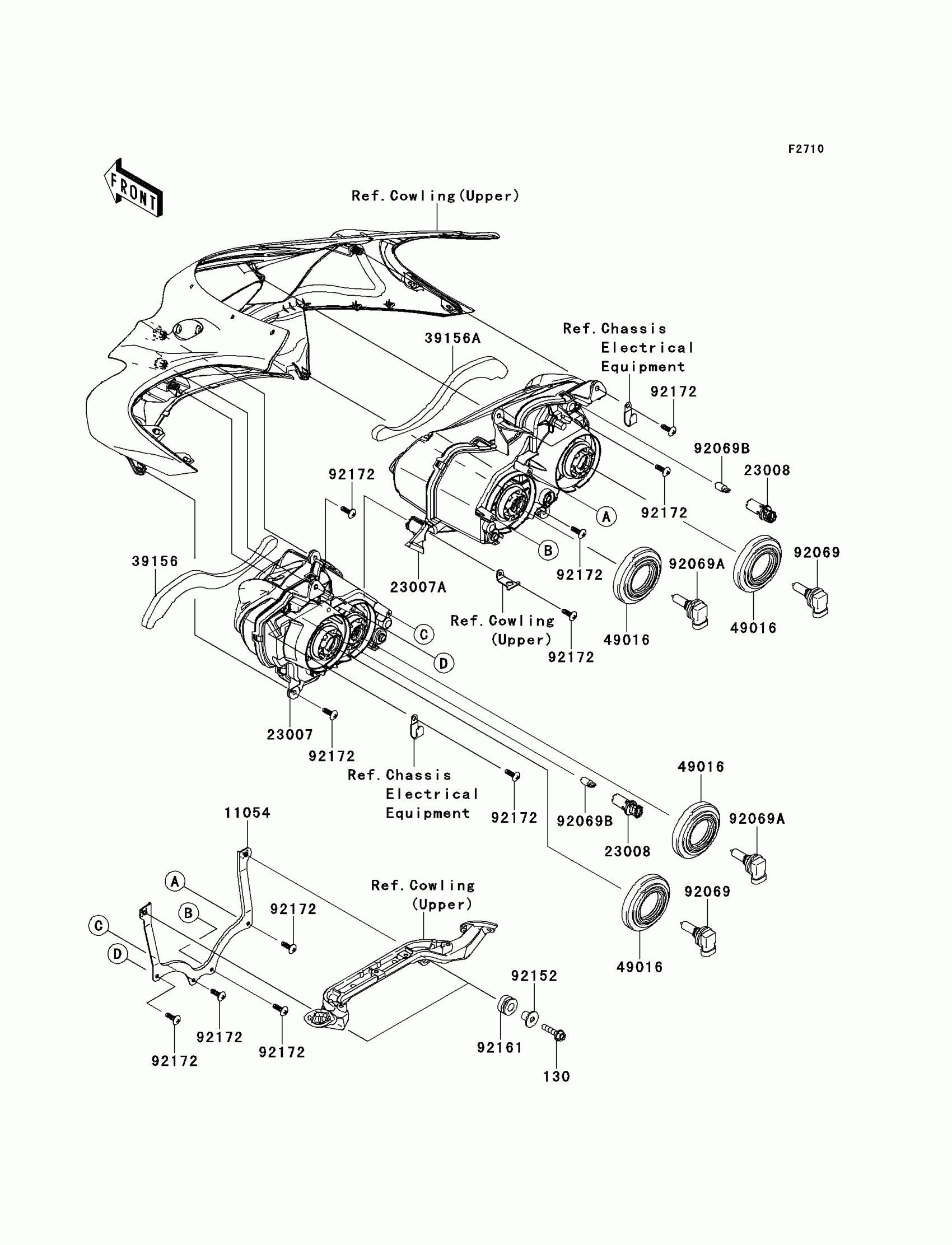

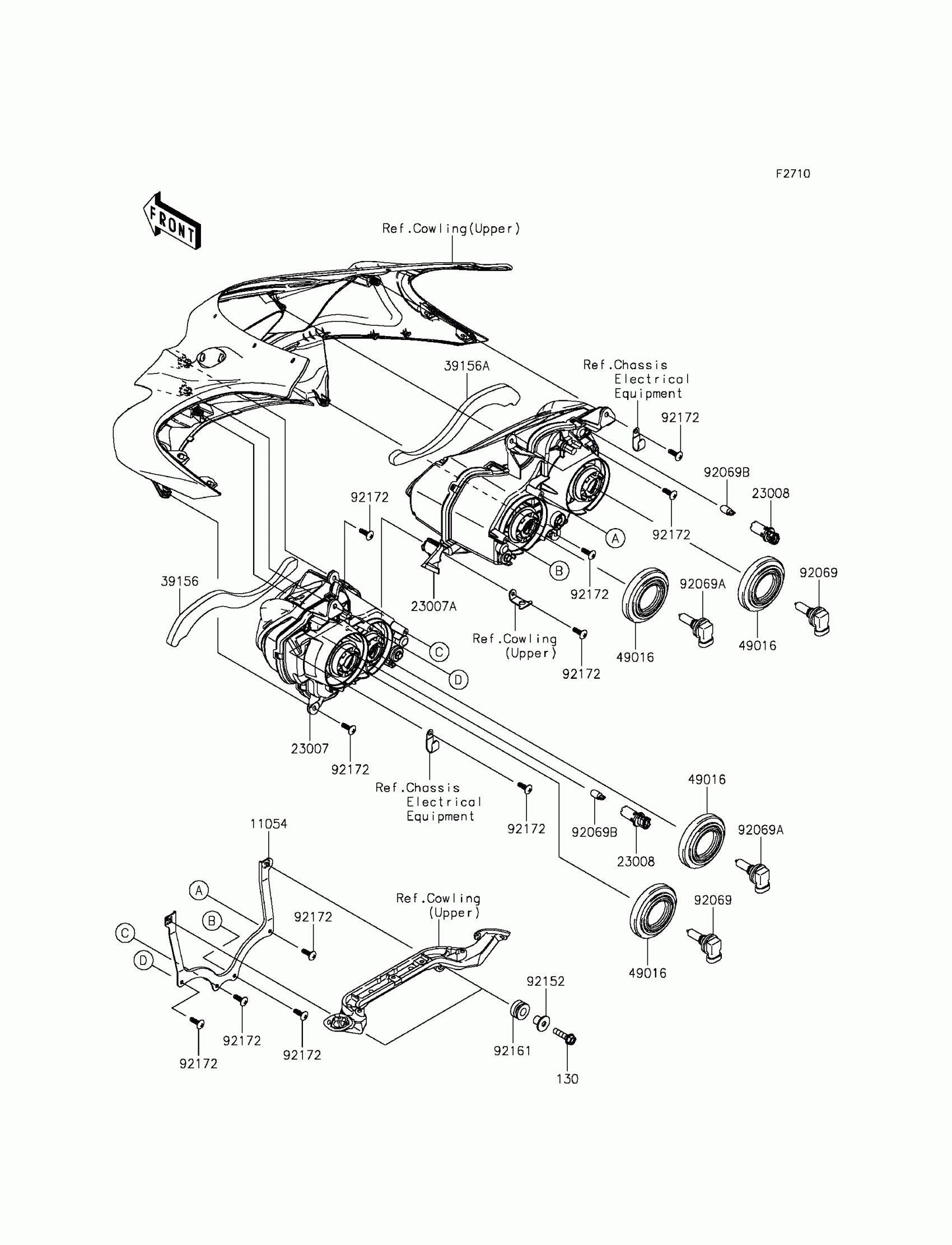

Kawasaki NINJA® ZX™-14R Headlight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X25

130BA0625

$1.20

11054

BRACKET,HEAD LAMP

11054-0198

$46.79

23007

LENS-COMP,HEAD LAMP,LH

23007-0161

Unavailable

23007A

LENS-COMP,HEAD LAMP,RH

23007-0162

Unavailable

23008

SOCKET-ASSY,HEAD LAMP

23008-0053

$26.91

39156

PAD,HEAD LAMP,LH

39156-0806

$5.01

39156A

PAD,HEAD LAMP,RH

39156-0807

$5.01

49016

COVER-SEAL,HEAD LAMP

49016-0023

$13.45

92069

BULB,12V 65W,H9

92069-0055

$46.83

92069A

BULB,12V 55W,H11

92069-0056

$41.56

92069B

BULB,12V 5W

92069-1016

$6.52

92152

COLLAR,6.5X10X13.1

92152-0332

$5.65

92161

DAMPER

92161-0036

$2.80

92172

SCREW,TAPPING,5X16

92172-0238

$1.00
