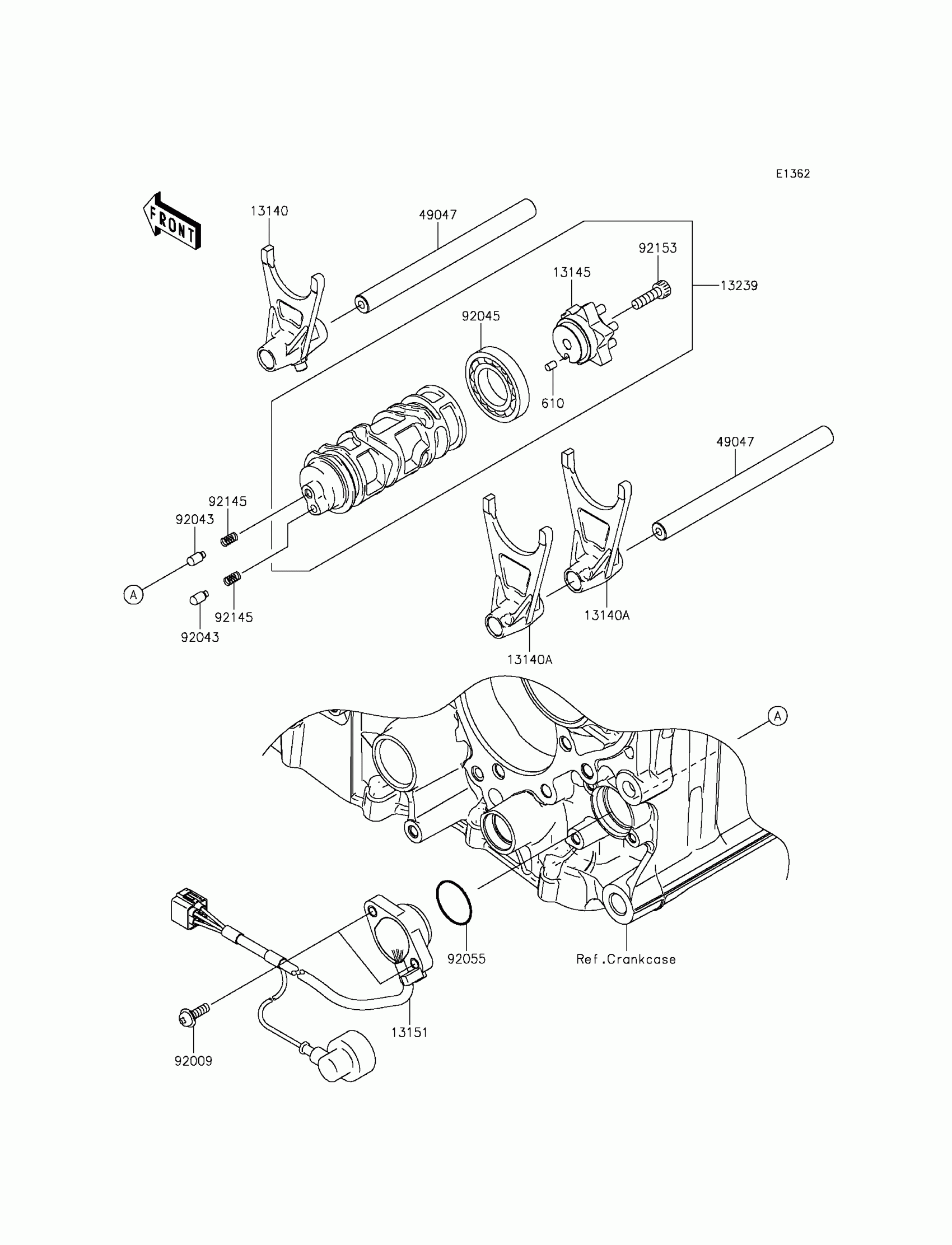

Kawasaki NINJA® ZX™-14R Gear Change Drum/Shift Fork(s) Diagram

Description

Price

610

ROLLER,4X6

610A0406

$4.31

13140

FORK-SHIFT,INPUT

13140-0049

$104.02

13140A

FORK-SHIFT,OUTPUT

13140-0050

$104.16

13145

CAM-CHANGE DRUM

13145-0023

$58.69

13151

SWITCH-COMP,NEUTRAL

13151-0031

$146.33

13239

DRUM-ASSY-CHANGE

13239-0023

$230.25

49047

ROD-SHIFT

49047-0023

$29.16

92009

SCREW

92009-1895

$1.83

92043

92043-1654

$3.74

92045

BEARING-BALL,16005

92045-1045

$28.25

92055

RING-O,27.7X2.4

92055-091

$6.22

92145

SPRING

92145-1414

$4.14

92153

BOLT,SOCKET,6X20

92153-1031

$2.15
