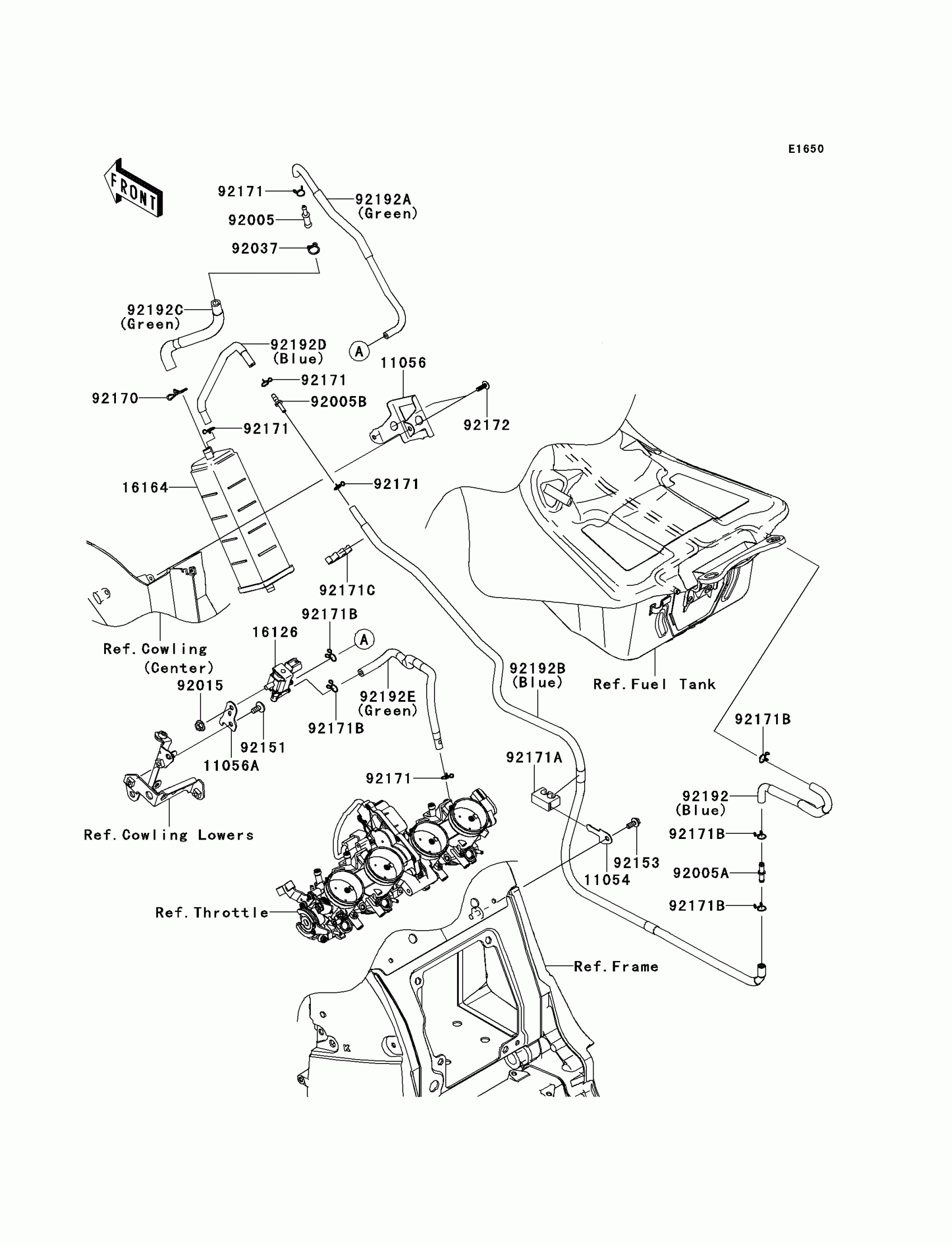

Kawasaki NINJA® ZX™-14R Fuel Evaporative System(CA) Diagram

Description

Price

11054

BRACKET

11054-0464

$16.97

11056

BRACKET,CANISTER

11056-1176

$9.73

11056A

BRACKET,SOLENOID VALVE

11056-1739

$4.10

16126

VALVE,SOLENOID

16126-0705

$106.99

16164

CANISTER

16164-0009

$137.47

92005

FITTING

92005-0032

$5.60

92005A

FITTING

92005-0721

$9.09

92005B

FITTING

92005-1206

$8.68

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP,12.5MM

92037-1271

$2.79

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92153

BOLT,FLANGED,6X14

92153-1571

$2.15

92170

CLAMP

92170-1695

$2.78

92171

CLAMP

92171-0576

$5.00

92171A

CLAMP

92171-0693

$11.93

92171B

CLAMP

92171-0718

$2.15

92171C

CLAMP

92171-1213

$8.76

92172

SCREW,TAPPING,5X16

92172-0175

$1.78

92192

TUBE,TANK-CANISTER,BLUE

92192-0512

$71.73

92192A

TUBE,5X9.7X331,GREEN

92192-1056

$66.06

92192B

TUBE,4X9.2X1105,BLUE

92192-1058

$141.84

92192C

TUBE,CANISTER-VALVE,GREEN

92192-1152

$55.60

92192D

TUBE,4X9.2X240,BLUE

92192-1153

$49.63

92192E

TUBE,VALVE-THROTTLE,GREEN

92192-1166

$69.09
