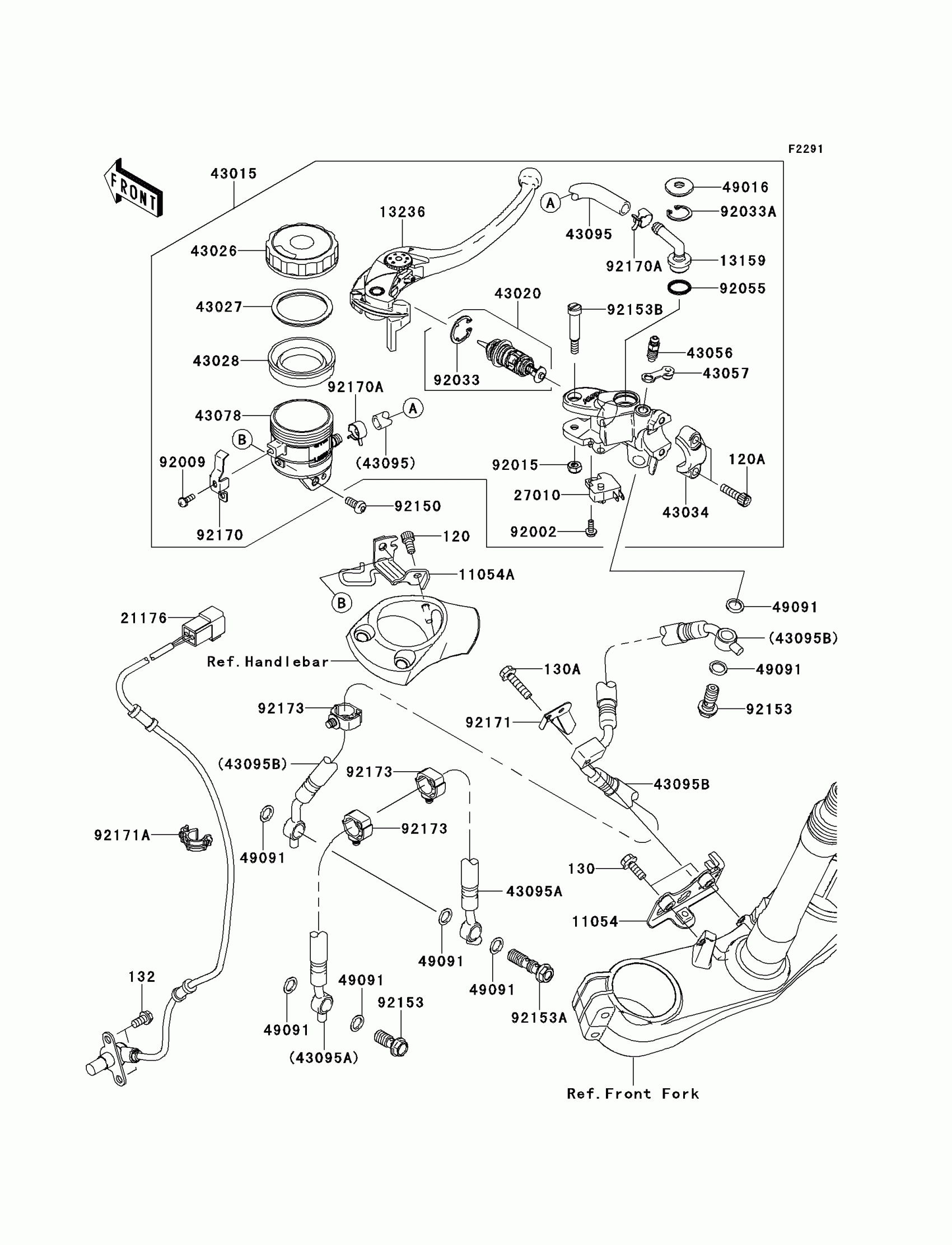

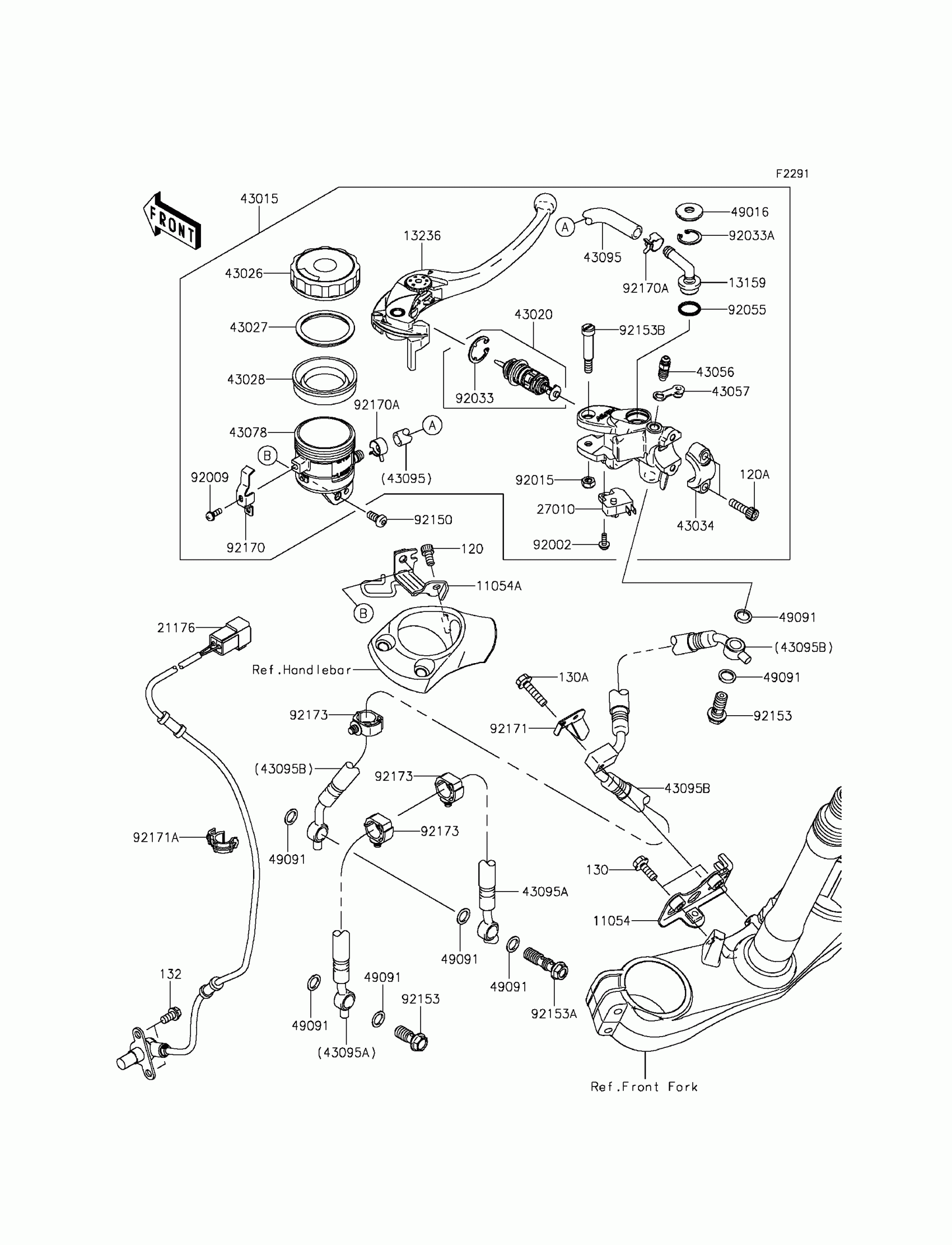

Kawasaki NINJA® ZX™-14R Front Master Cylinder Diagram

#

Description
Price

120

BOLT-SOCKET,6X12

120CA0612

$1.27

120A

BOLT-SOCKET,6X22

120CB0622

$4.68

130

BOLT-FLANGED,6X18

130BA0618

$1.17

130A

BOLT-FLANGED,6X25

130BB0625

$1.84

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

11054

BRACKET,JOINT

11054-0029

$29.21

11054A

BRACKET,RESERVOIR TANK,FR

11054-0636

Unavailable

13159

CONNECTOR

13159-1061

$9.85

13236

LEVER-COMP,FRONT BRAKE

13236-0103

$63.89

21176

SENSOR,SPEED,FR

21176-0051

$149.11

27010

SWITCH,BRAKE

27010-0025

$32.62

43015

CYLINDER-ASSY-MASTER,FR

43015-0150

$418.09

43020

PISTON-COMP-BRAKE

43020-0010

$59.13

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0056

$21.59

43056

BREATHER-BRAKE

43056-1056

$10.86

43057

CAP-BREATHER

43057-1001

$3.73

43078

RESERVOIR

43078-1099

$28.99

43095

HOSE-BRAKE,FR MASTER CYLINDER

43095-0040

$9.11

43095A

HOSE-BRAKE,FR

43095-0400

$53.06

43095B

HOSE-BRAKE,M/C-CALIPER

43095-0677

$134.28

49016

COVER-SEAL

49016-1147

$4.72

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92002

BOLT,SCREW,4X12

92002-1323

$2.99

92009

SCREW

92009-1570

$2.49

92015

NUT,FLANGED,6MM

92015-1528

$4.18

92033

RING-SNAP

92033-0034

$4.07

92033A

RING-SNAP,20.5MM

92033-1186

$3.78

92055

RING-O,14.8X2.4

92055-0741

$2.82

92150

BOLT,SOCKET,6X14

92150-1836

$3.57

92153

BOLT,OIL,L=23

92153-0627

$4.15

92153A

BOLT,OIL,L=37

92153-0628

$9.00

92153B

BOLT,LEVER

92153-0868

$5.98

92170

CLAMP

92170-1090

$13.69

92170A

CLAMP,HOSE

92170-1091

$3.81

92171

CLAMP

92171-0624

$8.46

92171A

CLAMP,BRAKE HOSE

92171-1703

$4.14

92173

CLAMP,HOLDER CLIP

92173-0868

$2.11
