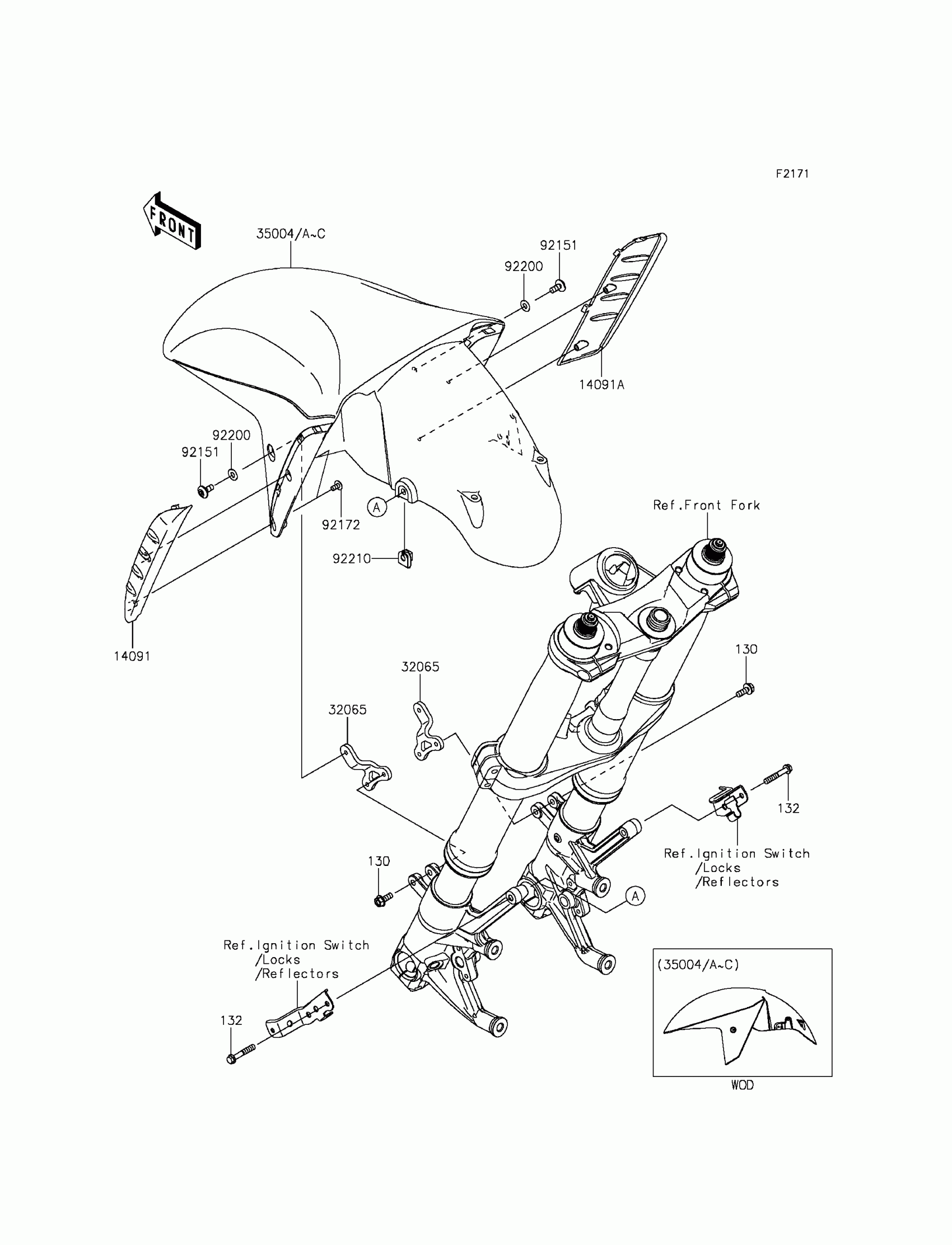

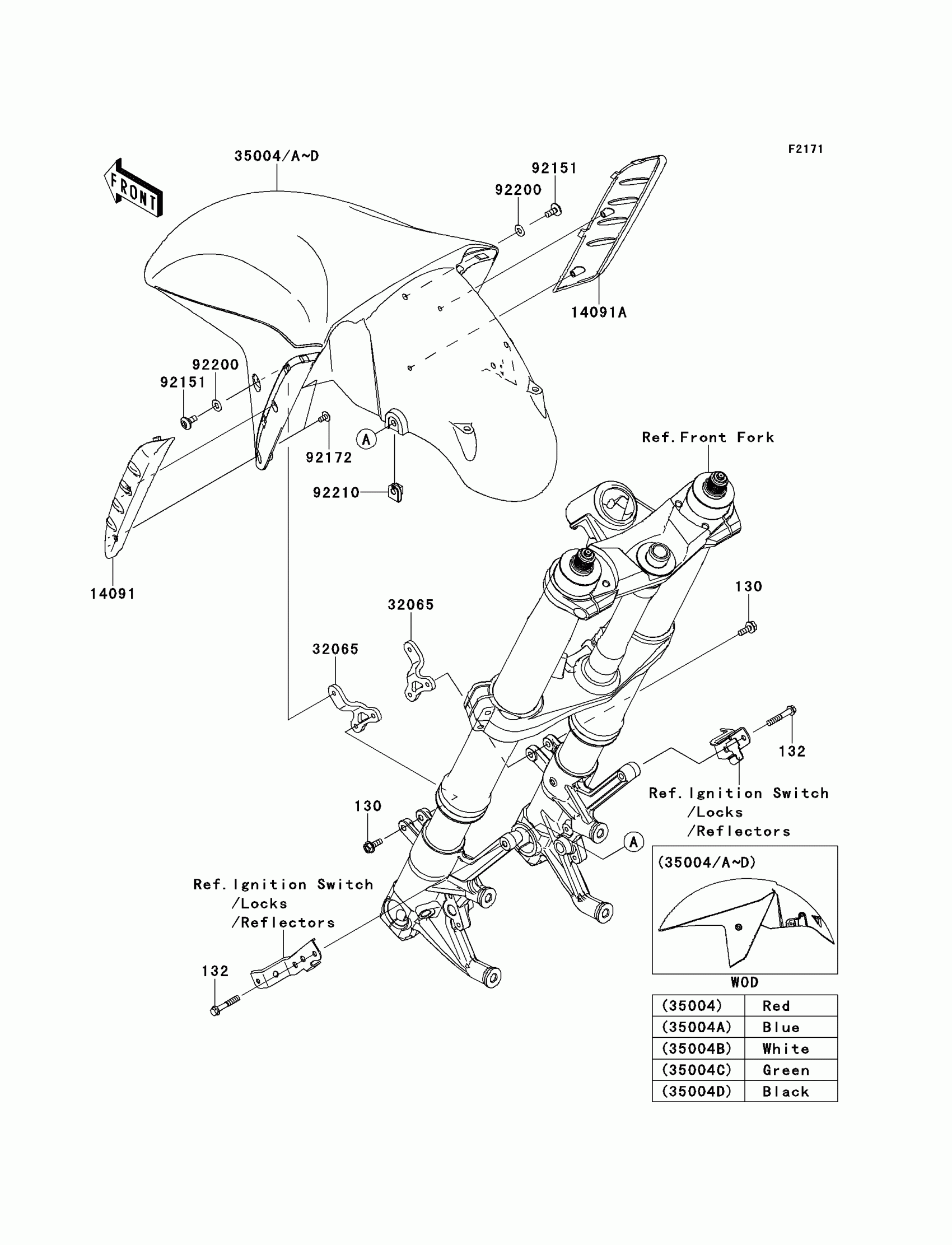

Kawasaki NINJA® ZX™-14R Front Fender(s) Diagram

Description

Price

130

BOLT-FLANGED,6X18

130BA0618

$1.54

132

BOLT-FLANGED-SMALL,6X35

132BB0635

$4.12

14091

COVER,FRONT FENDER,LH

14091-0598

$30.76

14091A

COVER,FRONT FENDER,RH

14091-0599

$30.76

32065

BRACKET-FENDER

32065-0020

Unavailable

35004

FENDER-FRONT,C.B.ORANGE

35004-0131-17L

$253.72

35004A

FENDER-FRONT,G.B.GREEN

35004-0131-40R

$256.29

35004B

FENDER-FRONT,F.EBONY

35004-0131-45L

$242.04

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92200

WASHER,6.5X14X1

92200-1388

$2.46

92210

NUT,6MM

92210-0277

$4.92
