Description

Price

11054

BRACKET,RR FENDER,FR

11054-0225

$25.46

11054A

BRACKET,REAR FENDER&TAIL COVER

11054-0694

$23.84

11054B

BRACKET,REGULATOR

11054-0718

$16.97

11056

BRACKET,FUEL TANK,RR

11056-2121

$47.23

11061

GASKET

11061-0107

$2.58

11065

CAP,AIR CLEANER,RH

11065-0223

$46.35

11065A

CAP,AIR CLEANER,LH

11065-0763

$46.80

13271

PLATE,TOOL CASE

13271-0779

$11.93

13280

HOLDER,HELMET,LH

13280-0753

$28.69

13280A

HOLDER,HELMET,RH

13280-0754

$28.69

14092

COVER,F.BLACK

14092-0903-6Z

$11.83

14092A

COVER,BATTERY

14092-0981

$41.04

21176

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

32098

CASE-TOOL

32098-0058

$31.96

35063

STAY,RR,LH,F.S.BLACK

35063-0782-18R

$157.44

35063A

STAY,RR,RH,F.S.BLACK

35063-0783-18R

$157.44

35063B

STAY,FR,LH,F.S.BLACK

35063-0853-18R

$75.95

35063C

STAY,FR,RH,F.S.BLACK

35063-0854-18R

$102.03

36001

COVER-SIDE,BATTERY,RH,BLACK

36001-0080-18T

$43.61

49016

COVER-SEAL,FRAME

49016-0578

$46.04

53044

TRIM,L=100

53044-1200

$7.45

55020

GUARD,FRONT STEP,LH

55020-0211

$74.54

55020A

GUARD,FRONT STEP,RH

55020-0212

$74.54

55020B

GUARD,RR STEP,LH

55020-0866

$41.55

55020C

GUARD,RR STEP,RH

55020-0867

$41.55

92009

SCREW,6X10

92009-1661

$4.31

92015

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,6.5X16X1

92022-1143

$3.92

92066

PLUG

92066-1081

$8.60

92066A

PLUG

92066-1547

$3.62

92071

GROMMET

92071-1115

$5.46

92093

SEAL

92093-1507

$4.78

92151

BOLT,SOCKET,6X25

92151-1611

$2.34

92151A

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR

92152-0470

$4.65

92152A

COLLAR

92152-0668

$4.78

92153

BOLT,6X18

92153-0478

$2.55

92153A

BOLT,6X16

92153-1423

$1.34

92153B

BOLT,SOCKET,10X23

92153-1522

$7.75

92153C

BOLT,SOCKET,8X20

92153-1621

$2.15

120

BOLT-SOCKET,6X30

120CB0630

$3.01

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,6X16

130BA0616

$1.20

130B

BOLT-FLANGED,6X18

130BA0618

$1.54

130C

BOLT-FLANGED,6X22

130BA0622

$1.29

220

SCREW-PAN-CROS,5X18

220AB0518

$3.69

92153D

BOLT,6MM

92153-1622

$3.39

92153E

BOLT,SOCKET,8X30

92153-1630

$2.61

92153F

BOLT,FLANGED,6X14

92153-1676

$2.15

92153G

BOLT,SOCKET,6X16

92153-1785

$2.61

92160

DAMPER

92160-1613

$3.74

92200

WASHER,6.5X20X1.6

92200-0283

$1.40

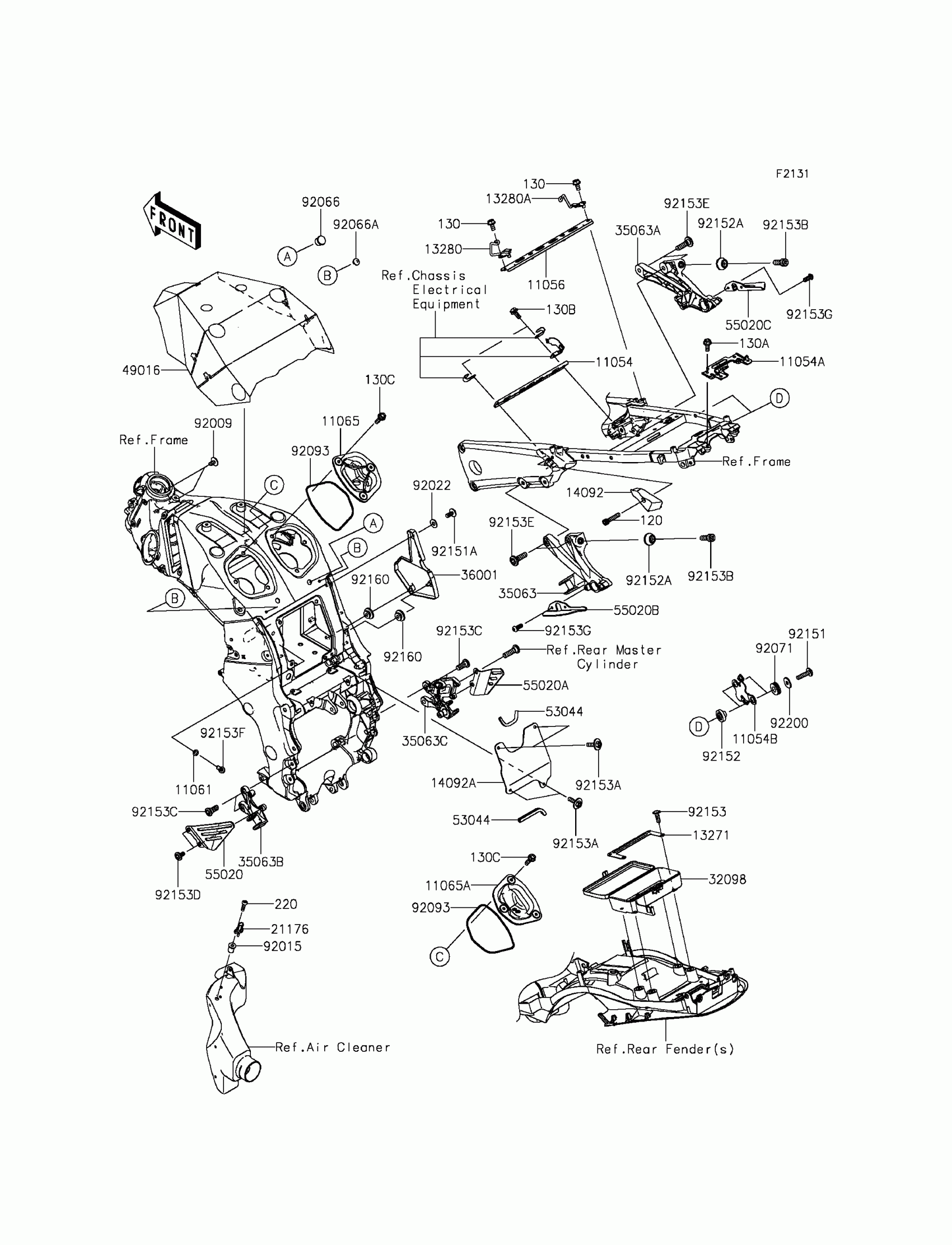

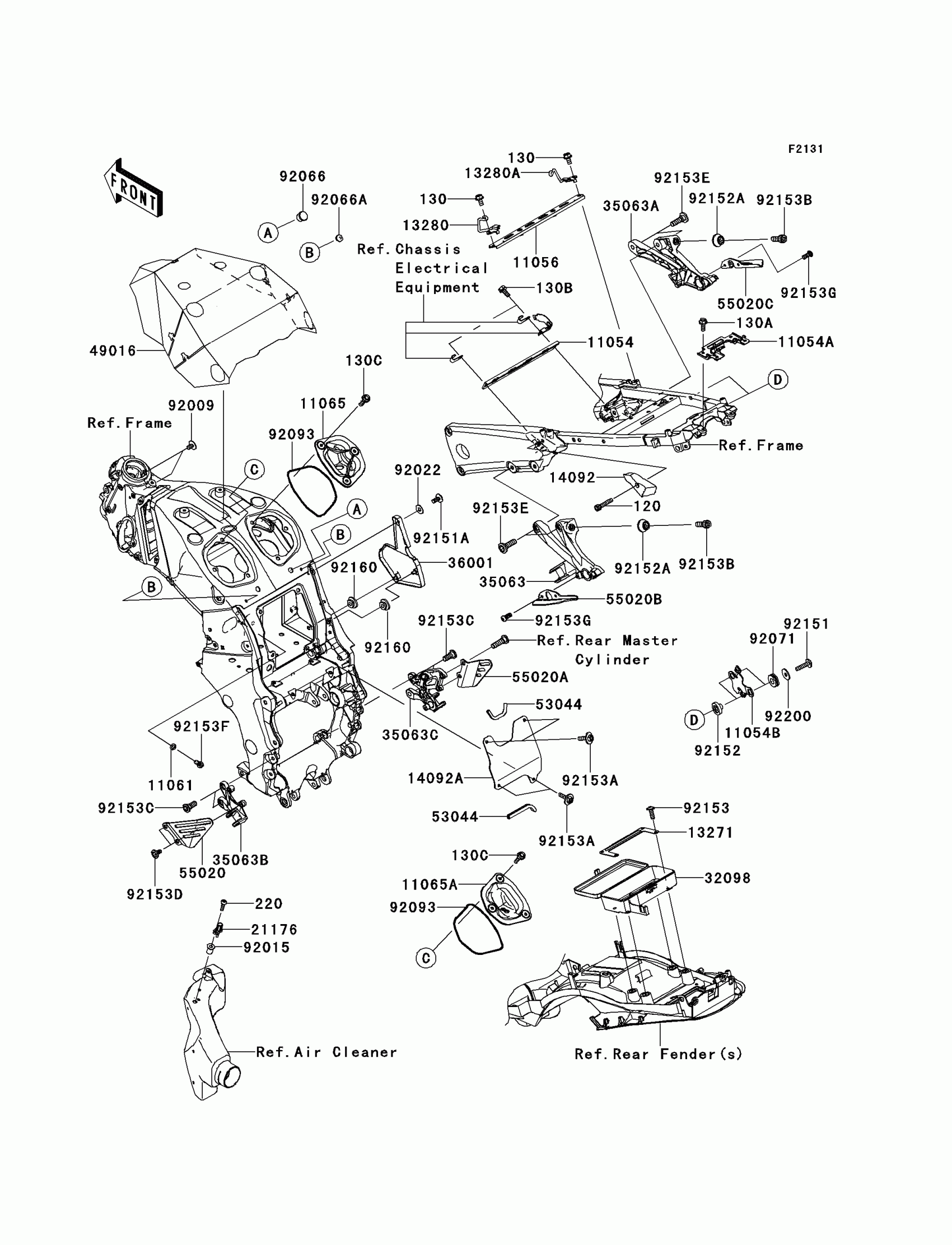

Kawasaki NINJA® ZX™-14R Frame Fittings Diagram

BRACKET,RR FENDER,FR

BRACKET,REAR FENDER&TAIL COVER

BRACKET,REGULATOR

BRACKET,FUEL TANK,RR

GASKET

CAP,AIR CLEANER,RH

CAP,AIR CLEANER,LH

PLATE,TOOL CASE

HOLDER,HELMET,LH

HOLDER,HELMET,RH

COVER,F.BLACK

COVER,BATTERY

SENSOR,AIR TEMPERATURE

CASE-TOOL

STAY,RR,LH,F.S.BLACK

STAY,RR,RH,F.S.BLACK

STAY,FR,LH,F.S.BLACK

STAY,FR,RH,F.S.BLACK

COVER-SIDE,BATTERY,RH,BLACK

COVER-SEAL,FRAME

TRIM,L=100

GUARD,FRONT STEP,LH

GUARD,FRONT STEP,RH

GUARD,RR STEP,LH

GUARD,RR STEP,RH

SCREW,6X10

NUT,WELL,5MM

WASHER,6.5X16X1

PLUG

PLUG

GROMMET

SEAL

BOLT,SOCKET,6X25

BOLT,SOCKET,6X14

COLLAR

COLLAR

BOLT,6X18

BOLT,6X16

BOLT,SOCKET,10X23

BOLT,SOCKET,8X20

BOLT-SOCKET,6X30

BOLT-FLANGED,6X14

BOLT-FLANGED,6X16

BOLT-FLANGED,6X18

BOLT-FLANGED,6X22

SCREW-PAN-CROS,5X18

BOLT,6MM

BOLT,SOCKET,8X30

BOLT,FLANGED,6X14

BOLT,SOCKET,6X16

DAMPER

WASHER,6.5X20X1.6
