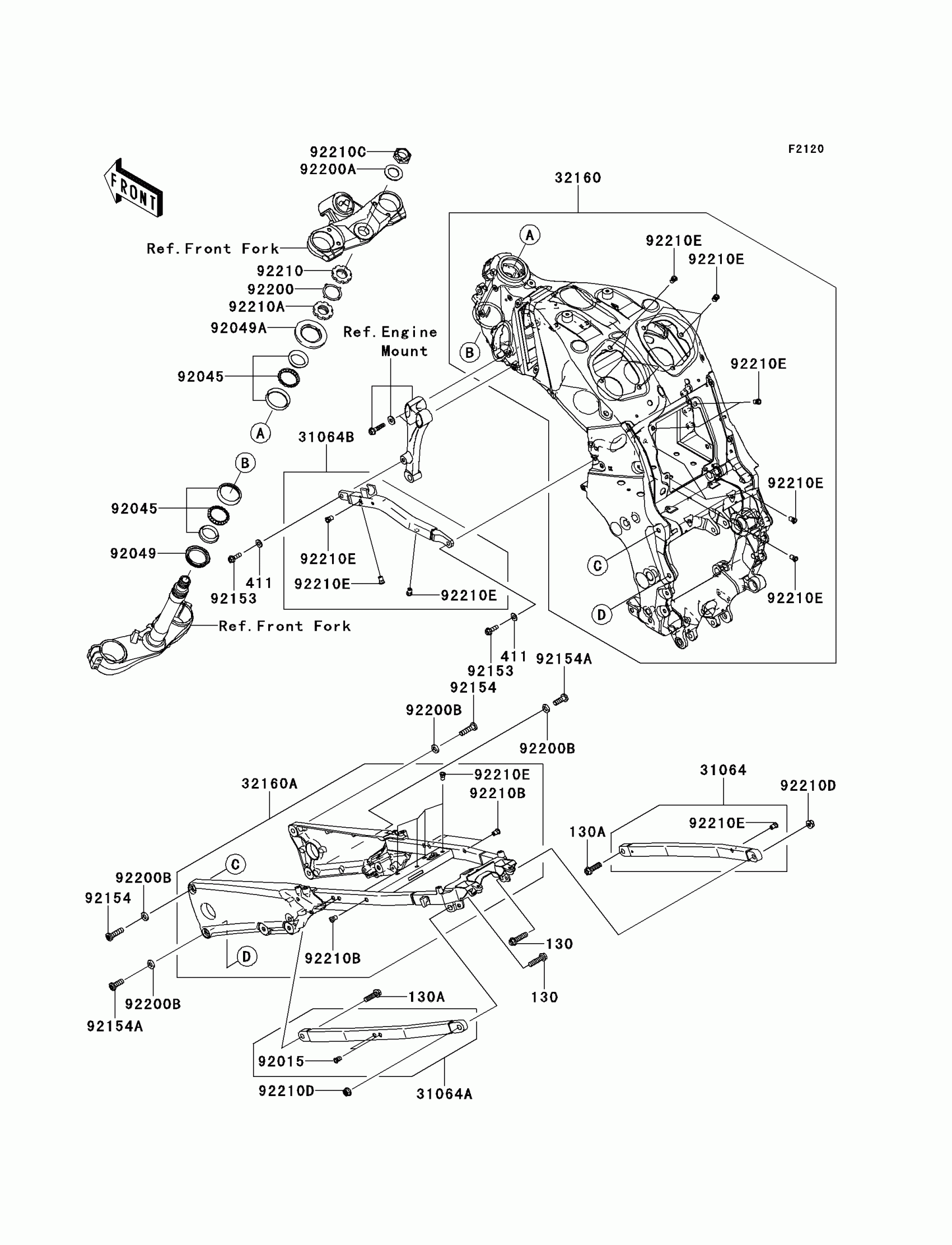

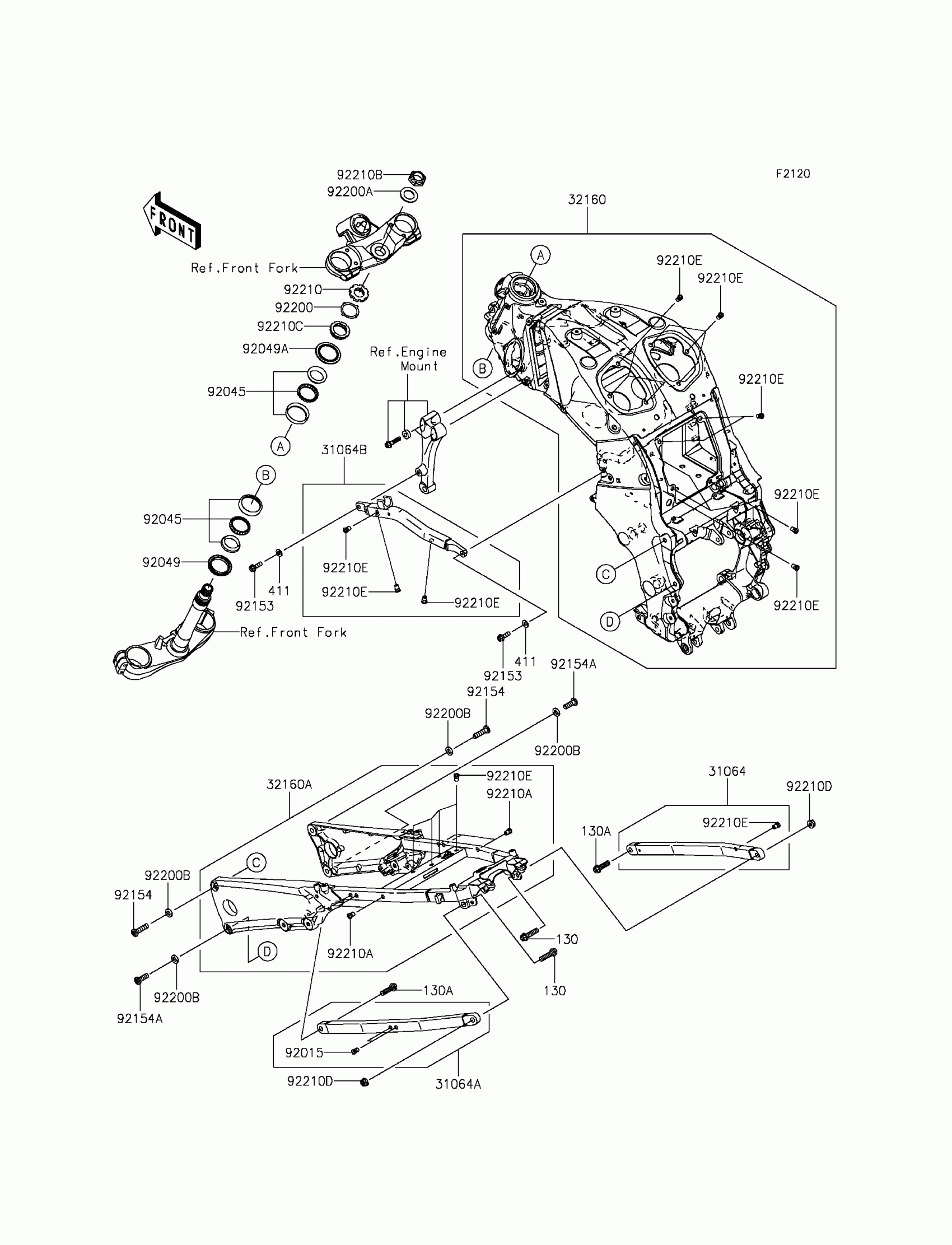

Kawasaki NINJA® ZX™-14R Frame Diagram
#
Description
Price
130
BOLT-FLANGED,10X40
130BA1040
$2.01
130A
BOLT-FLANGED,10X35
130BB1035
$6.24
411
WASHER-PLAIN,8MM
411AA0800
$0.96
31064
PIPE-COMP,RR,RH,F.S.BLACK
31064-0045-18R
$120.63
31064A
PIPE-COMP,RR,LH,F.S.BLACK
31064-0065-18R
$120.63
31064B
PIPE-COMP,SUB FRAME,LH
31064-0099
$154.02
32160
FRAME-COMP,FR,F.S.BLACK
32160-0580-18R
$3,226.66
32160A
FRAME-COMP,RR,F.S.BLACK
32160-0700-18R
$1,000.05
92015
NUT,POP,6MM,L=15
92015-1791
$4.69
92045
BEARING-BALL,SF07A17PX1V1
92045-1384
$45.69
92049
SEAL-OIL,DS35X55X4
92049-0022
$17.39
92049A
SEAL-OIL,43X55.5X8.6
92049-0742
$17.91
92153
BOLT,FLANGED,8X25
92153-1768
$3.90
92154
BOLT,SOCKET,10X40
92154-0994
$6.63
92154A
BOLT,SOCKET,10X30
92154-0995
$6.00
92200
WASHER
92200-0281
$3.90
92200A
WASHER,25.5X42X2.3
92200-0282
$2.63
92200B
WASHER,11X20X3
92200-0805
$7.58
92210
NUT,35MM
92210-0095
$18.25
92210A
NUT,POP,6MM,L=16.5
92210-0324
$5.33
92210B
NUT,25MM
92210-0758
$74.93
92210C
NUT,35MM
92210-0823
$24.27
92210D
NUT,LOCK,FLANGED,10MM
92210-1139
$4.18
92210E
NUT,POP,6MM,L=15
92210-1397
$5.48
