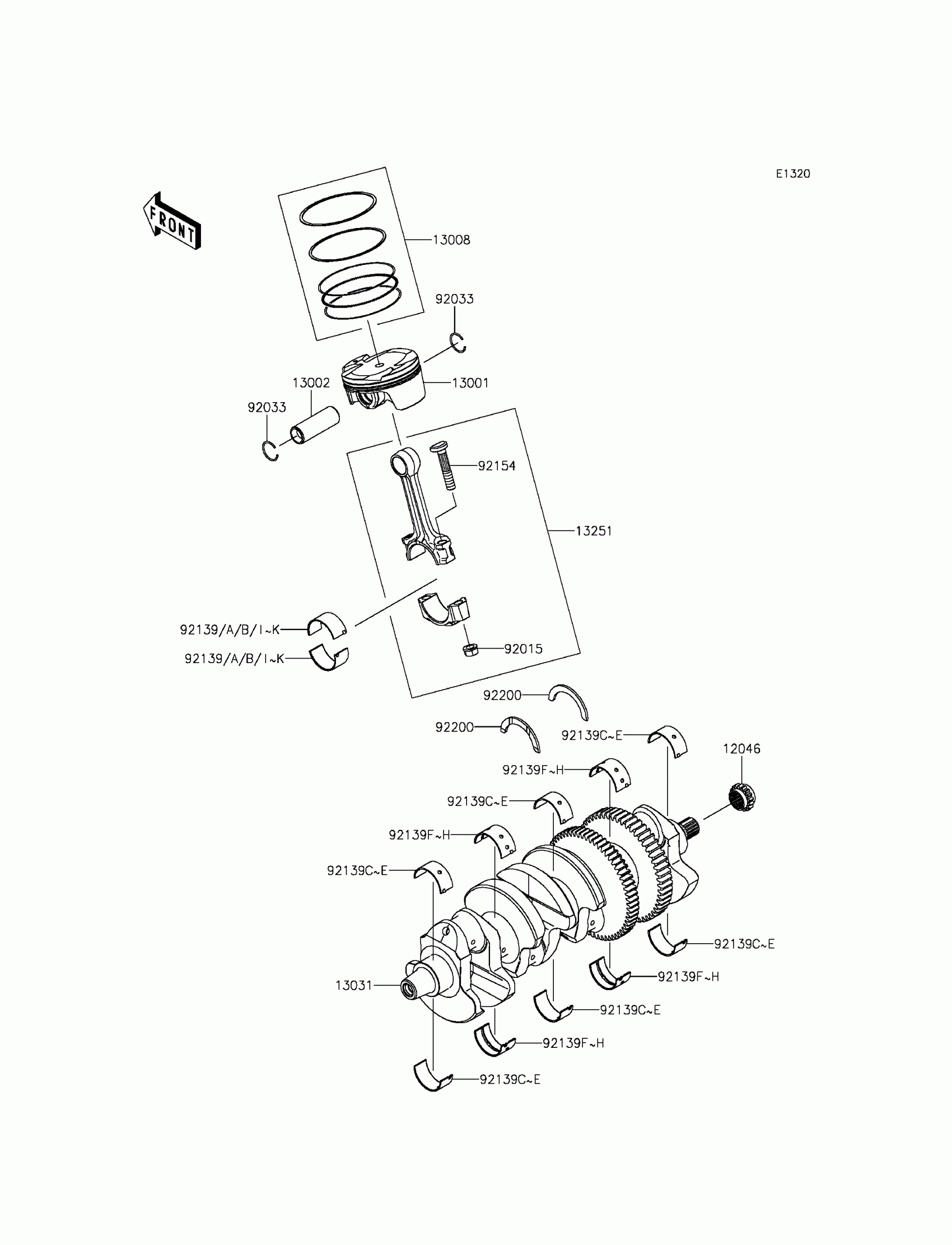

Kawasaki NINJA® ZX™-14R Crankshaft/Piston(s) Diagram

Description

Price

12046

SPROCKET,17T

12046-0569

$40.51

13001

PISTON-ENGINE

13001-0715

$152.77

13002

PIN-PISTON

13002-0010

$33.38

13008

RING-SET-PISTON

13008-0556

$57.81

13031

CRANKSHAFT-COMP

13031-0724

$1,354.08

13251

ROD-ASSY-CONNECTING

13251-0708-II

$268.05

92015

NUT,CONNECTING ROD

92015-1559

$6.22

92033

RING-SNAP

92033-1207

$2.38

92139

BUSHING,CON-ROD,BLUE

92139-0129

$23.43

92139A

BUSHING,CON-ROD,BLACK

92139-0130

Unavailable

92139B

BUSHING,CON-ROD,BROWN

92139-0131

Unavailable

92139C

BUSHING,CRANK,#1,BLUE

92139-0738

$21.89

92139D

BUSHING,CRANK,#1,BLACK

92139-0739

Unavailable

92139E

BUSHING,CRANK,#1,BROWN

92139-0740

Unavailable

92139F

BUSHING,CRANK,#2,BLUE

92139-0741

$21.89

92139G

BUSHING,CRANK,#2,BLACK

92139-0742

Unavailable

92139H

BUSHING,CRANK,#2,BROWN

92139-0743

Unavailable

92139I

BUSHING,CON-ROD,BLUE

92139-0828

$23.43

92139J

BUSHING,CON-ROD,BLACK

92139-0829

Unavailable

92139K

BUSHING,CON-ROD,BROWN

92139-0830

Unavailable

92154

BOLT,CONNECTING ROD,9MM

92154-0828

$5.05

92200

WASHER,T=2.5

92200-0744

$11.16

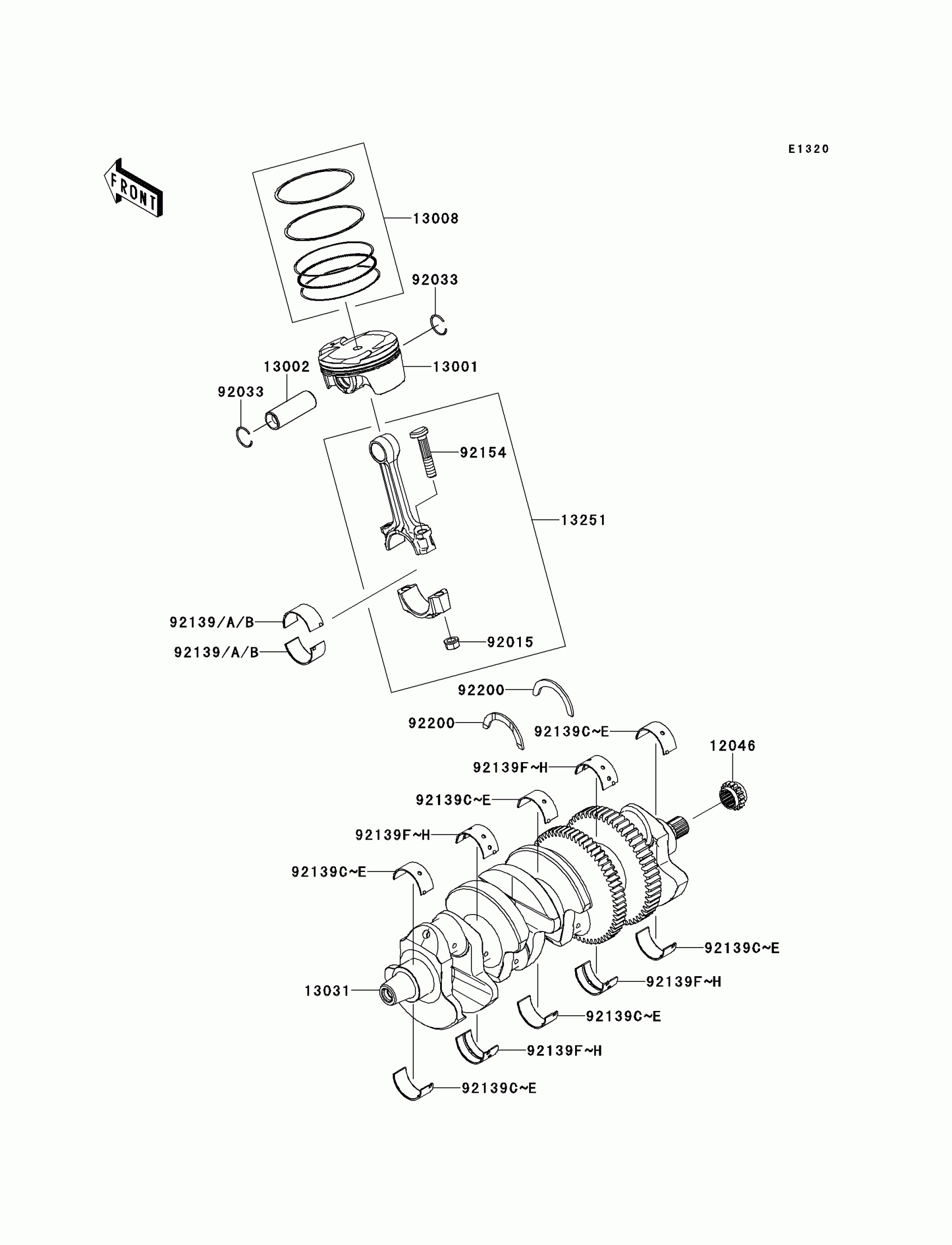

Kawasaki NINJA® ZX™-14R Crankshaft/Piston(s) Diagram

SPROCKET,17T

PISTON-ENGINE

PIN-PISTON

RING-SET-PISTON

CRANKSHAFT-COMP

ROD-ASSY-CONNECTING

NUT,CONNECTING ROD

RING-SNAP

BUSHING,CON-ROD,BLUE

BUSHING,CON-ROD,BLACK

BUSHING,CON-ROD,BROWN

BUSHING,CRANK,#1,BLUE

BUSHING,CRANK,#1,BLACK

BUSHING,CRANK,#1,BROWN

BUSHING,CRANK,#2,BLUE

BUSHING,CRANK,#2,BLACK

BUSHING,CRANK,#2,BROWN

BUSHING,CON-ROD,BLUE

BUSHING,CON-ROD,BLACK

BUSHING,CON-ROD,BROWN

BOLT,CONNECTING ROD,9MM

WASHER,T=2.5

BUSHING,CRANK,#1,BLUE

BUSHING,CRANK,#1,BLACK

BUSHING,CRANK,#1,BROWN
