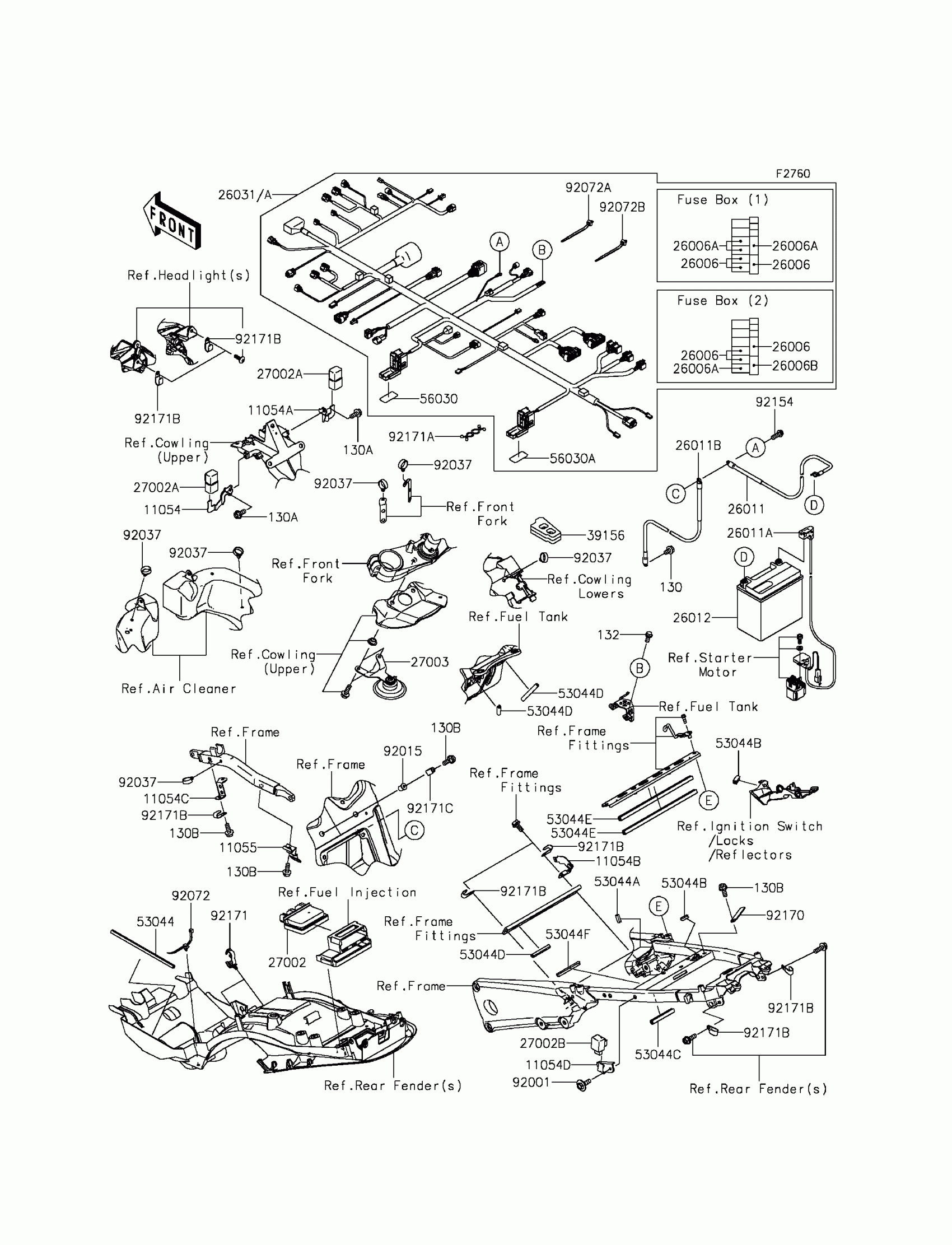

Kawasaki NINJA® ZX™-14R Chassis Electrical Equipment Diagram

#

Description
Price

11054

BRACKET,RELAY,LH

11054-0497

$15.20

11054A

BRACKET,RELAY,RH

11054-0498

$15.20

11054B

BRACKET,HARNESS

11054-0549

$8.03

11054C

BRACKET,HARNESS

11054-0551

$8.68

11054D

BRACKET,SIGNAL LAMP RELAY

11054-0811

$8.99

11055

BRACKET,HARNESS

11055-0411

$10.30

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26006B

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,BATTERY(-)

26011-0087

$29.43

26011A

WIRE-LEAD,BATTERY(+)

26011-0120

$56.84

26011B

WIRE-LEAD,BATTERY(-)

26011-0255

$29.75

26011C

WIRE-LEAD,CONNECTOR COVER

26011-0275

$14.13

26012

BATTERY,FTX14-BS,12V 12AH

26012-0047

Unavailable

27002

RELAY-ASSY

27002-0007

Unavailable

27002A

RELAY-ASSY

27002-1086

$36.91

27002B

RELAY-ASSY,TURN SIGNAL

27002-1101

$72.36

27003

HORN

27003-0069

$80.64

39156

PAD

39156-0846

$14.76

53044

TRIM,L=220

53044-0022

$13.60

53044A

TRIM,L=15

53044-0025

$3.39

53044B

TRIM,L=22

53044-0031

$3.39

53044C

TRIM,L=85

53044-0561

$5.05

53044D

TRIM,L=60

53044-1249

$6.57

53044E

TRIM,AIR DUCT COVER

53044-1265

$11.99

53044F

TRIM,L=75

53044-1279

$9.50

56030

LABEL,FUSE BOX1

56030-0767

$4.37

56030A

LABEL,FUSE BOX2

56030-0768

$4.58

92001

BOLT,6X20

92001-1773

$3.96

92015

NUT

92015-1700

$8.58

92037

CLAMP,HOSE

92037-1827

$7.45

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X14

130BA0614

$1.20

130B

BOLT-FLANGED,6X16

130BA0616

$1.20

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

92072

BAND

92072-0066

$3.39

92072A

BAND

92072-1392

$3.74

92154

BOLT,FLANGED,6X16

92154-0551

$1.63

92170

CLAMP

92170-1925

$2.40

92171

CLAMP,CLIP,DIA=20

92171-0068

$2.80

92171A

CLAMP

92171-0476

$3.90

92171B

CLAMP

92171-0739

$5.65

92171C

CLAMP

92171-0813

$8.68

26031

HARNESS,MAIN

26031-1417

$952.12

26031A

HARNESS,MAIN

26031-1418

$952.12

92072B

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92072B

BAND,OS170-FT7(BLACK)

92072-1414

$3.74
