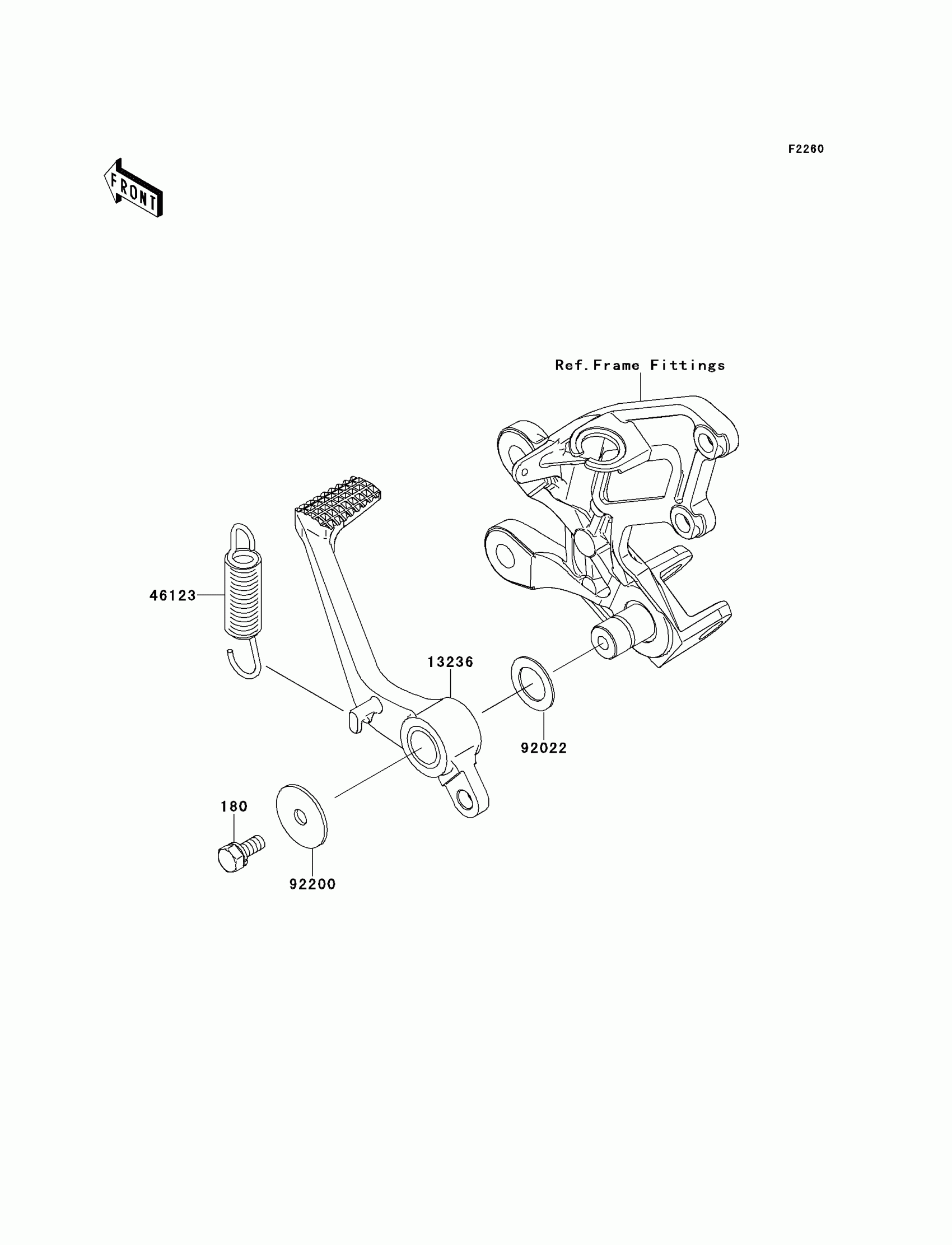

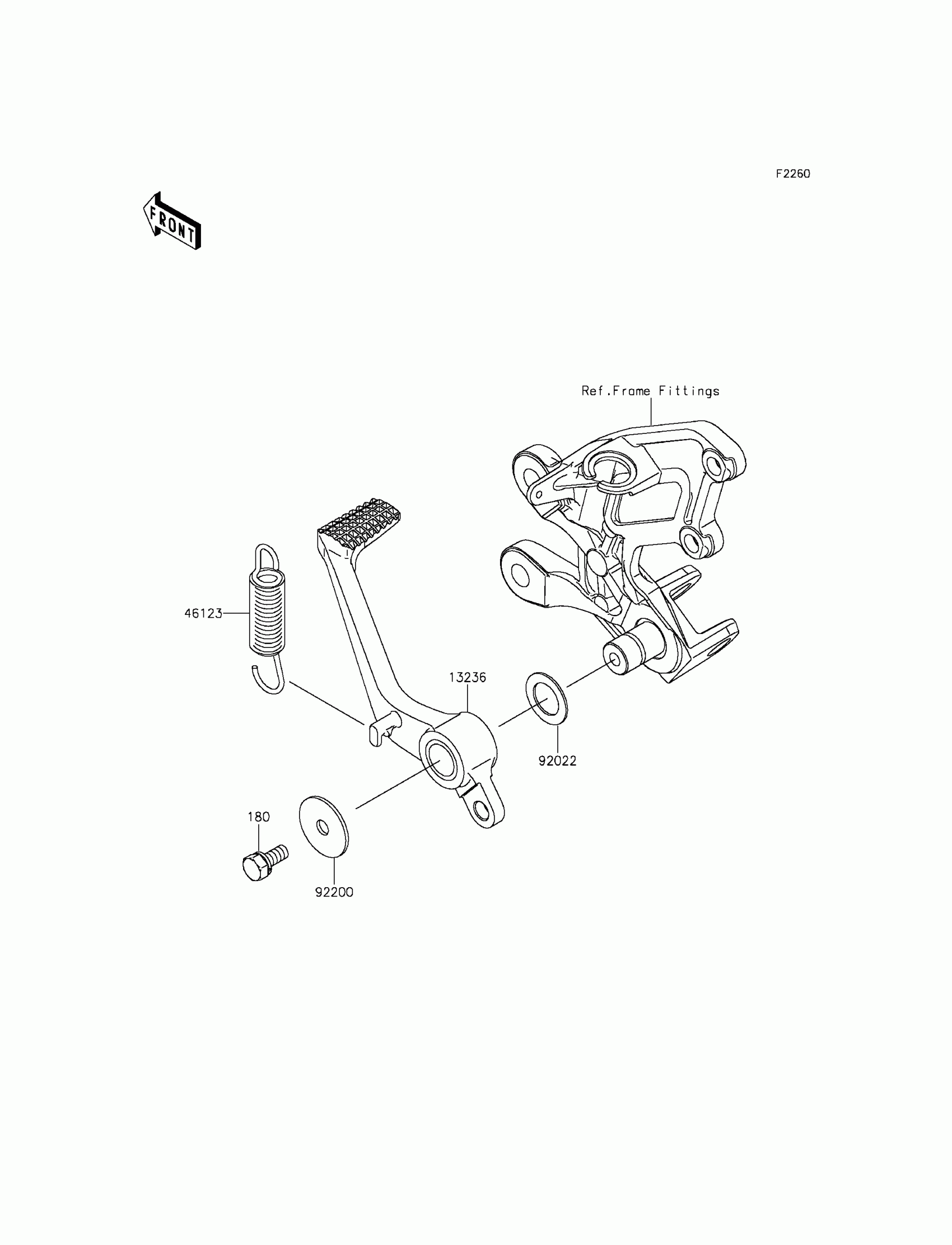

Kawasaki NINJA® ZX™-14R Brake Pedal/Torque Link Diagram

#

Description

Price

180

BOLT-UPSET-WS,6X14

180BA0614

$1.00

13236

LEVER-COMP,BRAKE PEDAL

13236-0096

$101.71

46123

SPRING-COMP,BRAKE PEDAL RETURN

46123-0003

$4.92

92022

WASHER,15.3X24X1

92022-326

$2.99

92200

WASHER,7X28X1.6

92200-0279

$1.53
