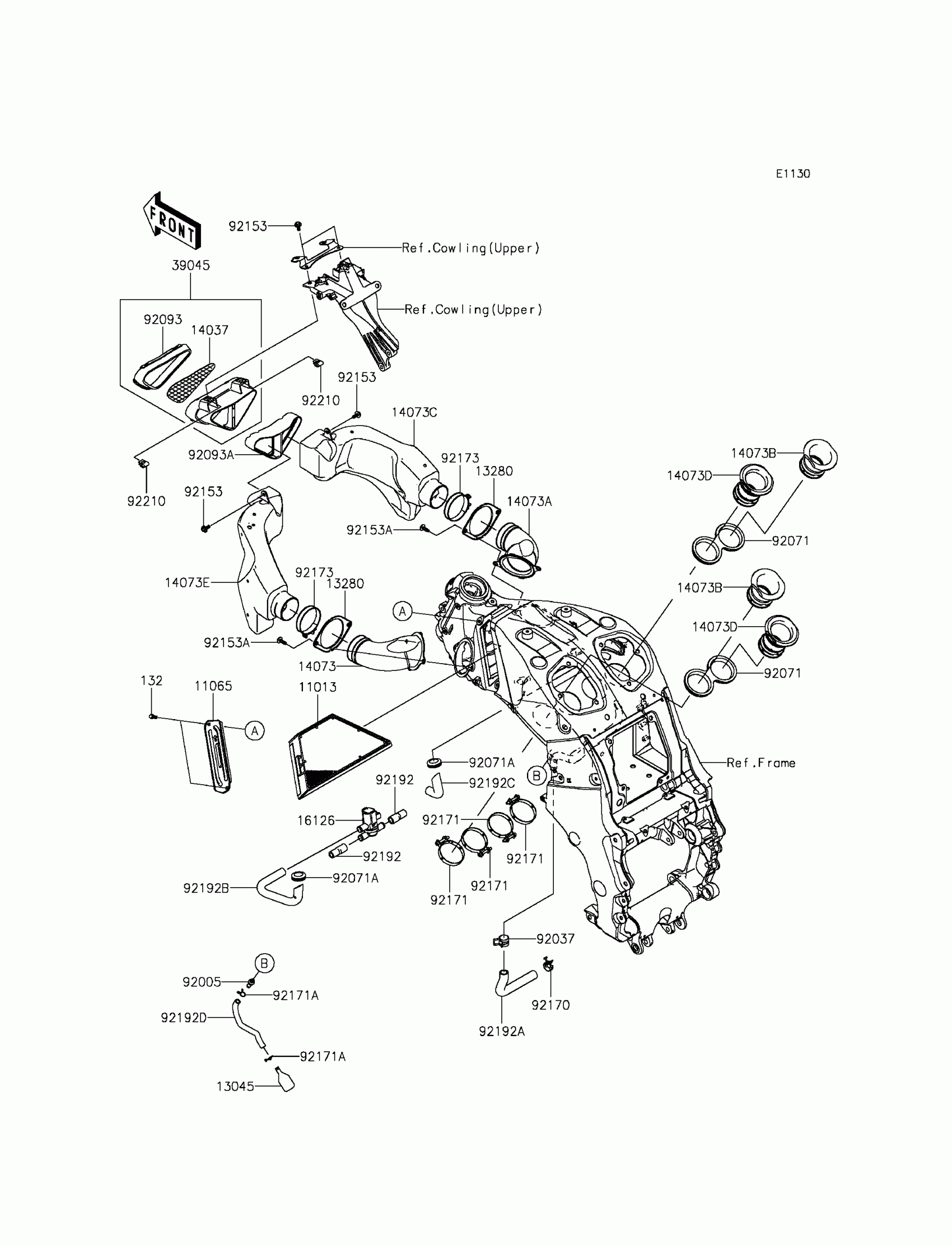

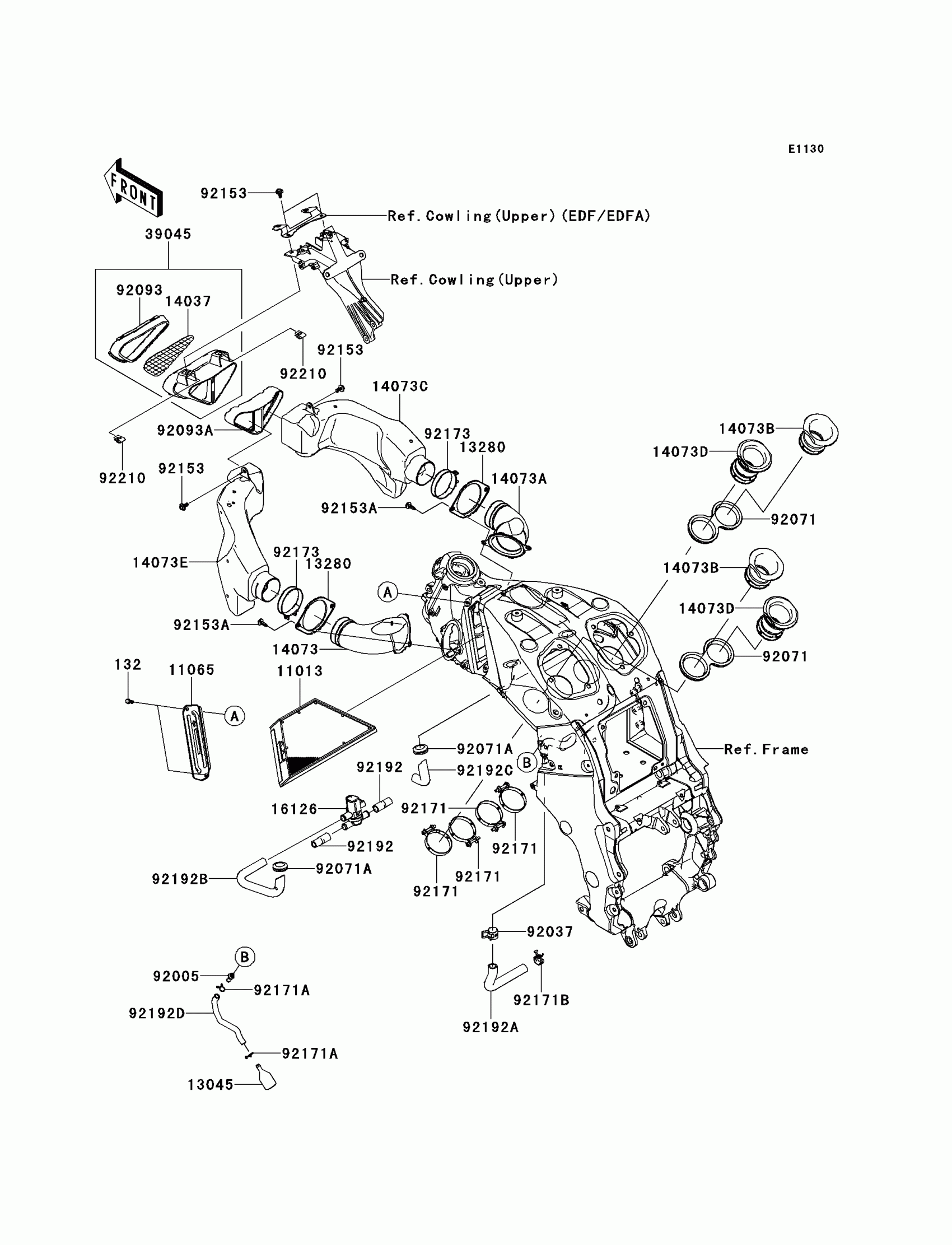

Kawasaki NINJA® ZX™-14R Air Cleaner Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.46

11013

ELEMENT-AIR FILTER

11013-0718

$66.51

11065

CAP

11065-0367

$34.79

13045

RECEIVER-OIL

13045-1057

$9.82

13280

HOLDER

13280-0154

$11.82

14037

SCREEN

14037-0044

$46.79

14073

DUCT,RAM-FRAME,LH

14073-0101

$50.76

14073A

DUCT,RAM-FRAME,RH

14073-0102

$50.76

14073B

DUCT,FUNNEL

14073-0168

$37.51

14073C

DUCT,RAM AIR,RH

14073-0732

$113.02

14073D

DUCT,FUNNEL

14073-0737

$37.95

14073E

DUCT,RAM AIR,LH

14073-0747

$113.02

16126

VALVE,AIR SWITCHING

16126-0038

$189.89

39045

DUCT-ASSY,RAM AIR,FR

39045-0016

$146.04

92005

FITTING

92005-0055

$24.61

92037

CLAMP,HOSE CLIP

92037-1460

$10.81

92071

GROMMET

92071-0023

$15.06

92071A

GROMMET,AIR FILTER

92071-1042

$7.27

92093

SEAL

92093-0052

$34.51

92093A

SEAL,RAM,DUCT

92093-0053

$34.51

92153

BOLT,UPSET-WP,6X16

92153-1587

$1.78

92153A

BOLT,SOCKET,6X20

92153-1927

$2.61

92171

CLAMP

92171-0677

$12.29

92171A

CLAMP

92171-0721

$2.97

92171B

CLAMP

92171-0771

$8.10

92173

CLAMP,65MM

92173-0080

$13.18

92192

TUBE,REED VALVE-ASV

92192-0376

$5.60

92192A

TUBE,BREATHER

92192-0701

$17.30

92192B

TUBE,FITTING-ASV

92192-1007

$14.18

92192C

TUBE,FITTING-ISCV

92192-1008

$9.91

92192D

TUBE,7X12X180

92192-1116

$3.70

92210

NUT

92210-0318

$7.37
