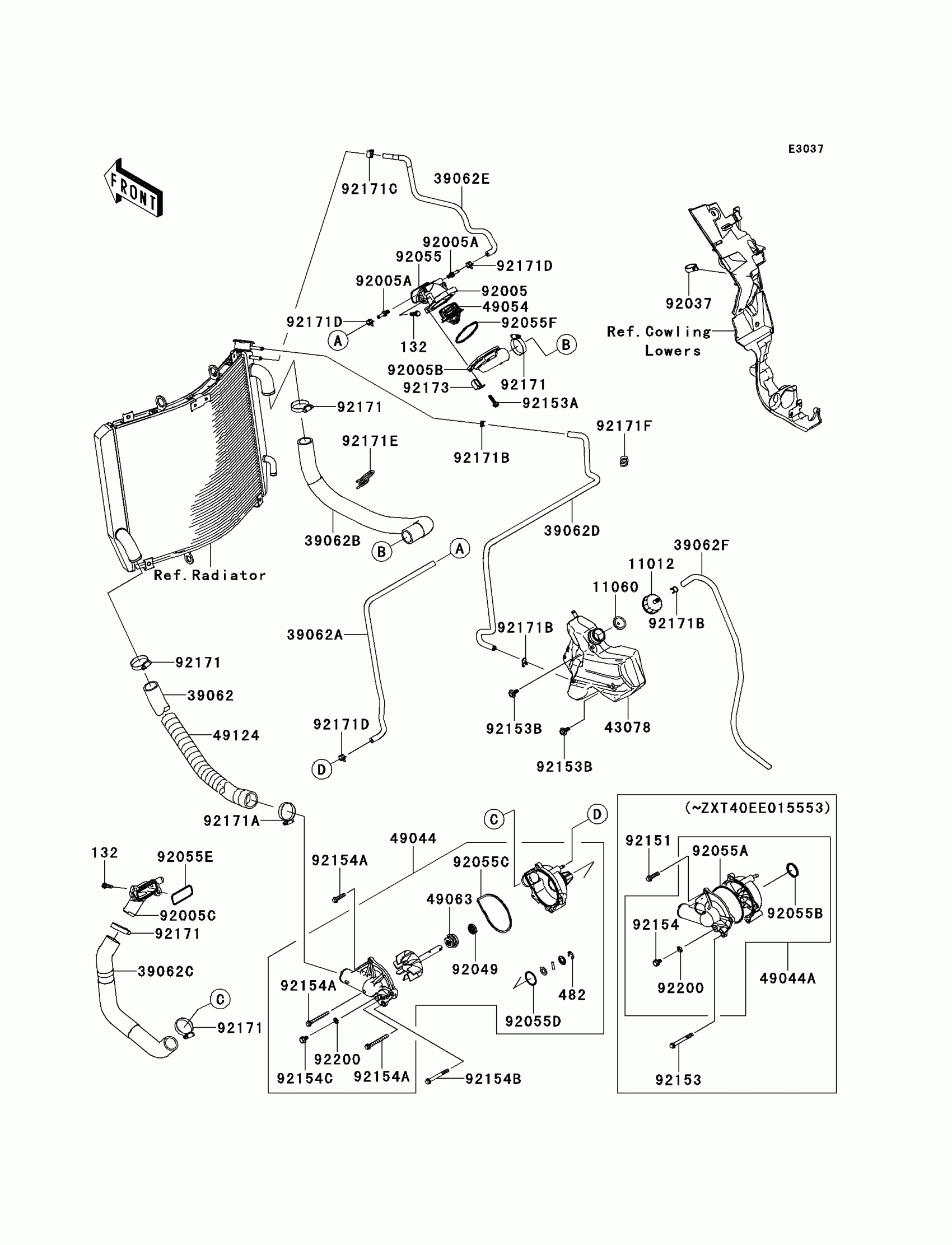

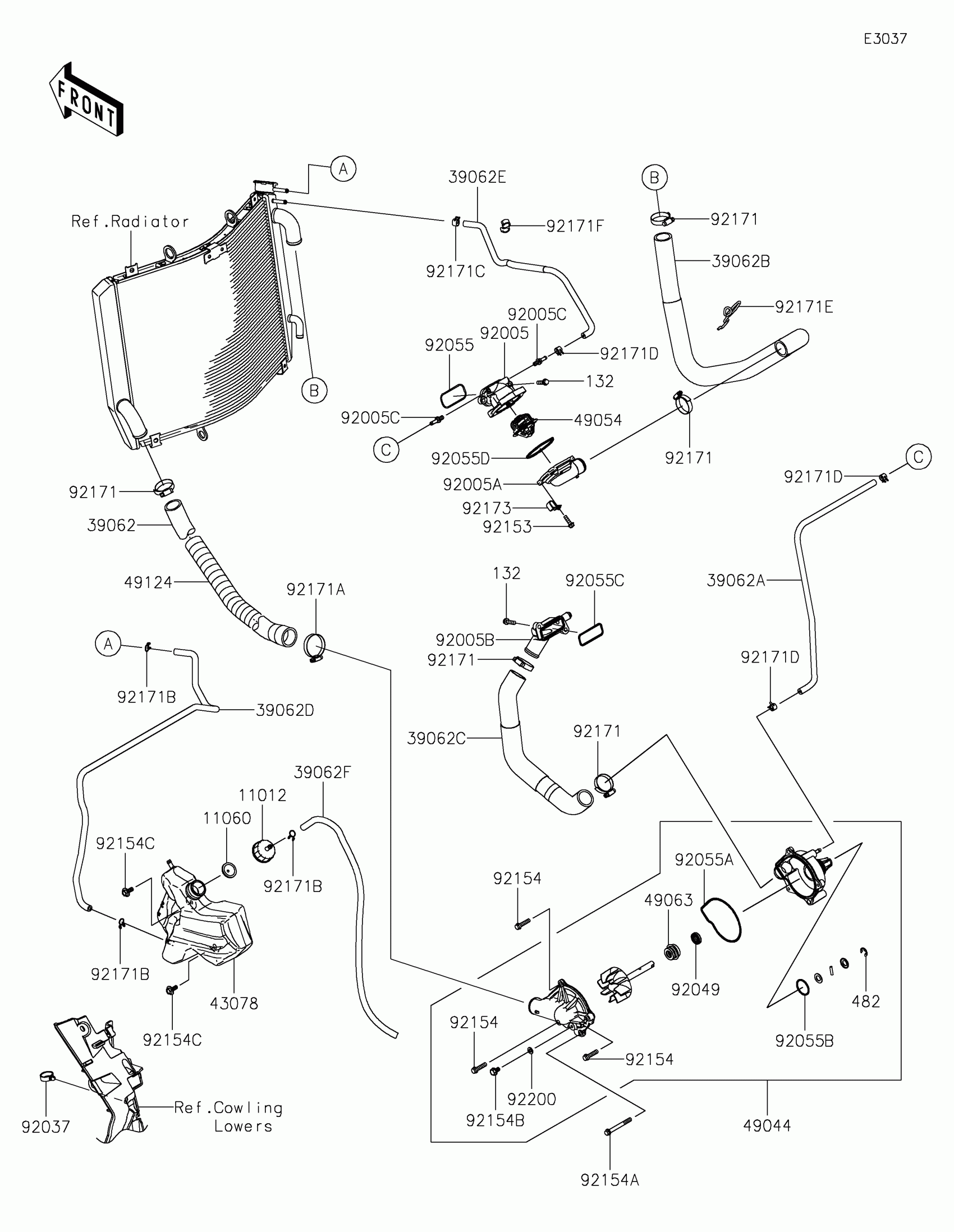

Kawasaki NINJA® ZX™-14R ABS Water Pipe Diagram

#

Description
Price

11012

CAP

11012-1854

$9.43

11060

GASKET,RESERVOIR TANK CAP

11060-1349

$5.46

132

BOLT-FLANGED-SMALL,6X20

132BC0620

$1.34

39062

HOSE-COOLING,RAD-W/P

39062-0113

$37.51

39062A

HOSE-COOLING,L=514.9

39062-0123

$8.60

39062B

HOSE-COOLING,CYL.HEAD-RAD.

39062-0212

$74.54

39062C

HOSE-COOLING,W/P-CYLINDER

39062-0611

$43.92

39062D

HOSE-COOLING,RAD.-RESERVOIR

39062-0613

$15.06

39062E

HOSE-COOLING,AIR VENT

39062-0614

$13.54

39062F

HOSE-COOLING,5.5X10.5X550

39062-1208

$37.82

43078

RESERVOIR

43078-0556

$32.25

49044

PUMP-WATER

49044-0010

$310.57

49054

THERMOSTAT

49054-0004

$59.01

49063

SEAL-MECHANICAL

49063-0001

$33.24

49124

SPRING-TUBE GUARD

49124-0003

$47.03

92005

FITTING,THERMO CASE

92005-0047

$41.04

92005A

FITTING,THERMO CAP

92005-0814

$79.65

92005B

FITTING,CYLINDER

92005-0815

$39.87

92005C

FITTING

92005-0826

$10.21

92037

CLAMP,HOSE

92037-1827

$7.45

92049

SEAL-OIL

92049-0752

$18.13

92055

RING-O,YP 27.6 57.6 1.9

92055-0021

$3.73

92055A

RING-O

92055-0770

$15.48

92055B

RING-O

92055-0771

$9.58

92055C

RING-O

92055-1402

$7.84

92055D

RING-O,THERMOSTAT CAP

92055-1699

$9.07

92153

BOLT,FLANGED,5X18

92153-1588

$1.34

92154

BOLT,FLANGED,6X25

92154-1287

$2.80

92154A

BOLT,FLANGED,6X55

92154-1288

$1.71

92154B

BOLT,DRAIN

92154-1362

$8.64

92154C

BOLT,UPSET-WP,6X16

92154-1850

$1.78

92171

CLAMP

92171-0179

$8.20

92171A

CLAMP

92171-0180

$13.37

92171B

CLAMP

92171-0718

$2.15

92171C

CLAMP

92171-0719

$2.15

92171D

CLAMP

92171-0720

$1.30

92171E

CLAMP

92171-0786

$7.75

92171F

CLAMP

92171-1184

$2.46

92173

CLAMP

92173-0082

$6.22

92200

WASHER,DRAIN

92200-0498

$3.29

482

CIRCLIP-TYPE-E,8MM

482EA8000

$0.68
