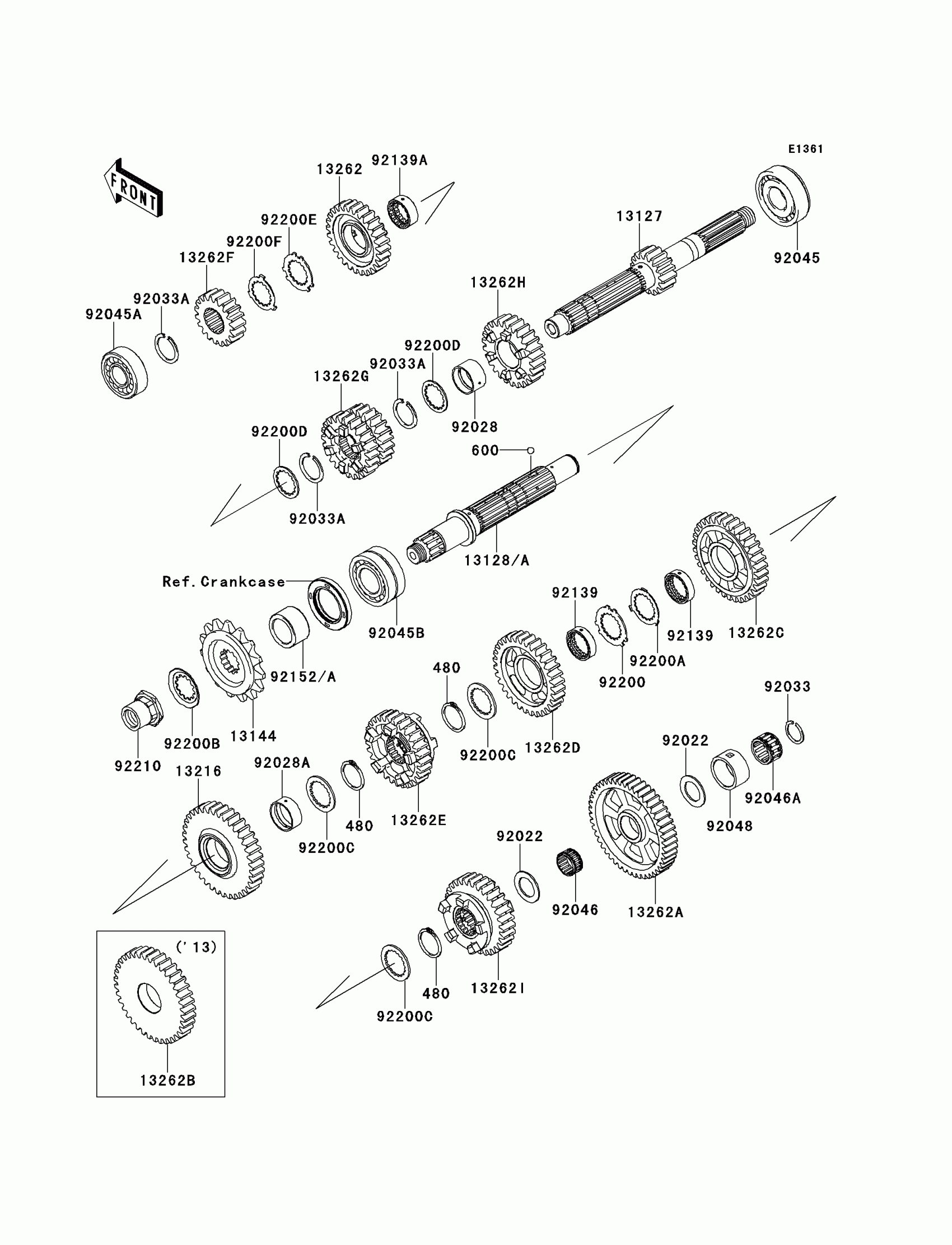

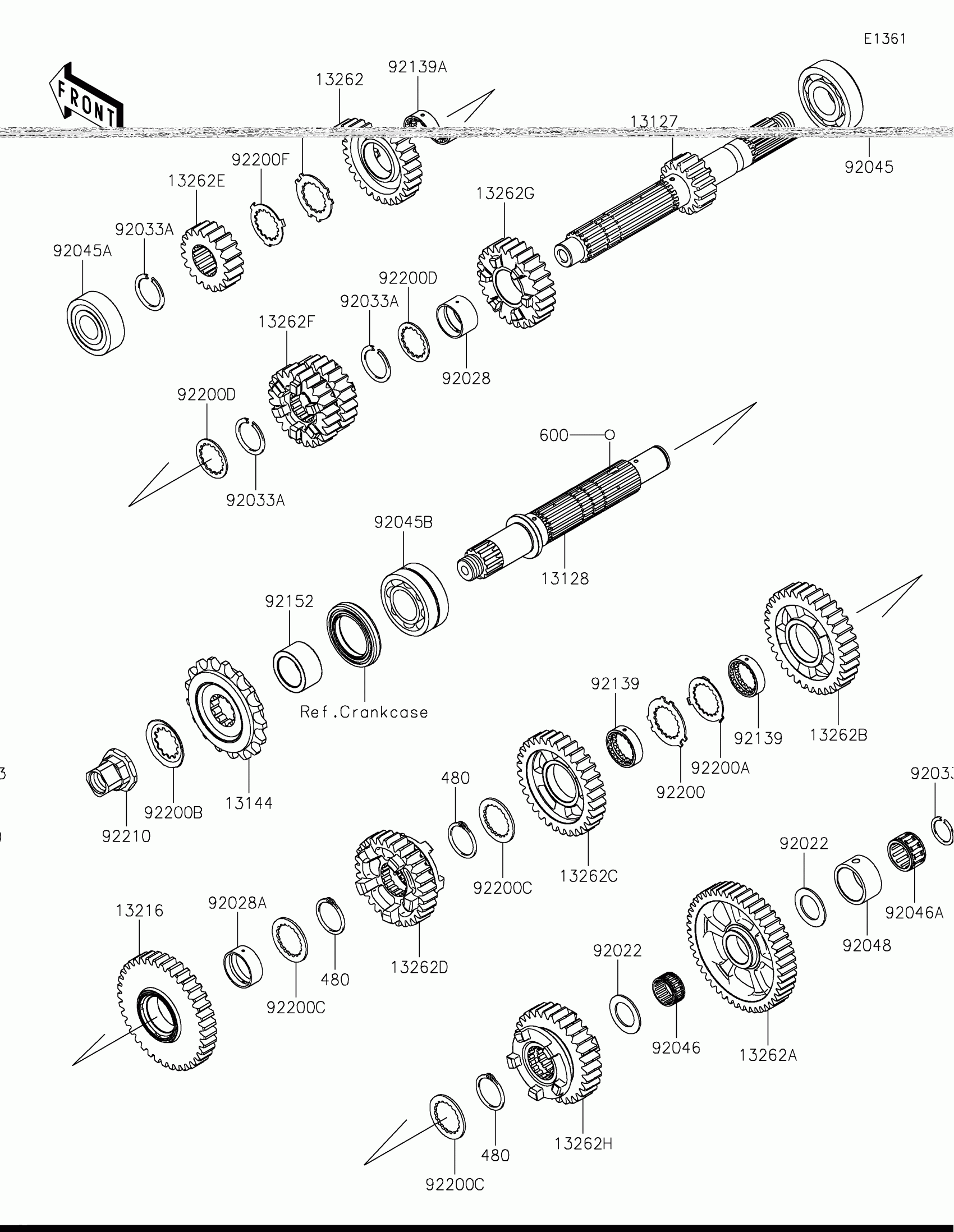

Kawasaki NINJA® ZX™-14R ABS Transmission Diagram

#

Description
Price

480

CIRCLIP

480J2900

$5.42

600

BALL-STEEL,5/32

600A0500

$0.68

13127

SHAFT-TRANSMISSION INPUT,18T

13127-0646

$335.56

13128A

SHAFT-TRANSMISSION OUTPUT

13128-0683

$272.85

13144

SPROCKET-OUTPUT,17T

13144-0040

$49.06

13216

GEAR-COMP,OUTPUT 2ND,37T

13216-0881

$165.57

13262

GEAR,INPUT TOP,28T

13262-0925

Unavailable

13262A

GEAR,OUTPUT LOW,47T

13262-0941

$150.88

13262C

GEAR,OUTPUT 3RD,34T

13262-0943

$124.76

13262D

GEAR,OUTPUT 4TH,32T

13262-0944

$129.32

13262E

GEAR,OUTPUT TOP,29T

13262-0945

$156.45

13262F

GEAR,INPUT 2ND,19T

13262-0946

$81.31

13262G

GEAR,INPUT 3RD&4TH,22T&24T

13262-0947

$205.35

13262H

GEAR,INPUT 5TH,26T

13262-0948

Unavailable

13262I

GEAR,OUTPUT 5TH,30T

13262-0957

$177.74

92022

WASHER,22.3X35X1.6

92022-212

$9.58

92028

BUSHING

92028-1935

$19.88

92028A

BUSHING

92028-1937

$14.05

92033

RING-SNAP,20X25.5X1.2

92033-025

$3.78

92033A

RING-SNAP,T=1.5

92033-1249

$3.78

92045

BEARING-BALL,830045-5SH2

92045-0047

$36.96

92045A

BEARING-BALL,DG2152RDDSH2

92045-0048

$42.78

92045B

BEARING-BALL,DAC2857NSSH6CS9

92045-0049

$100.24

92046

BEARING-NEEDLE,K22X26X13

92046-0018

$19.19

92046A

BEARING-NEEDLE

92046-0609

$21.19

92048

RACE

92048-0004

$24.20

92139

BUSHING

92139-0255

$28.92

92139A

BUSHING,INPUT 6TH,GEAR

92139-0256

$28.92

92152A

COLLAR,27.5X38X19.7

92152-1786

$15.36

92200

WASHER,27.5X43X1.5

92200-0255

$4.58

92200A

WASHER,27.5X39.7X1.0

92200-0256

$5.31

92200B

WASHER,23.9X45X1.0

92200-0260

$4.58

92200C

WASHER,TOOTHED,28X40X2

92200-1277

$9.12

92200D

WASHER,25.5X35.5X1.5

92200-1340

$5.63

92200E

WASHER,25.8X40.5X1.5

92200-1522

$4.29

92200F

WASHER,25.2X37.0X1.0

92200-1523

$4.78

92210

NUT,20X1.5

92210-0237

$33.76
