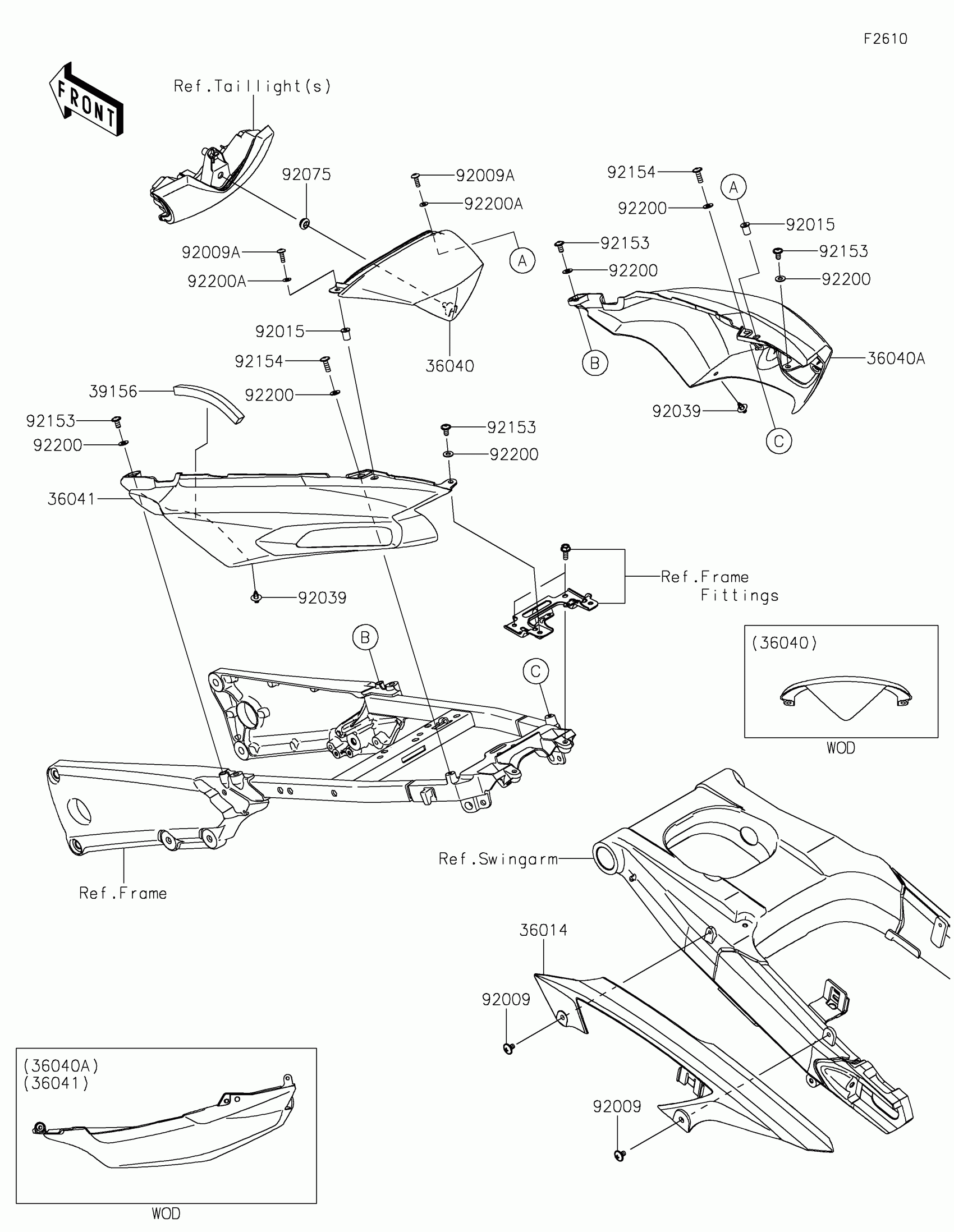

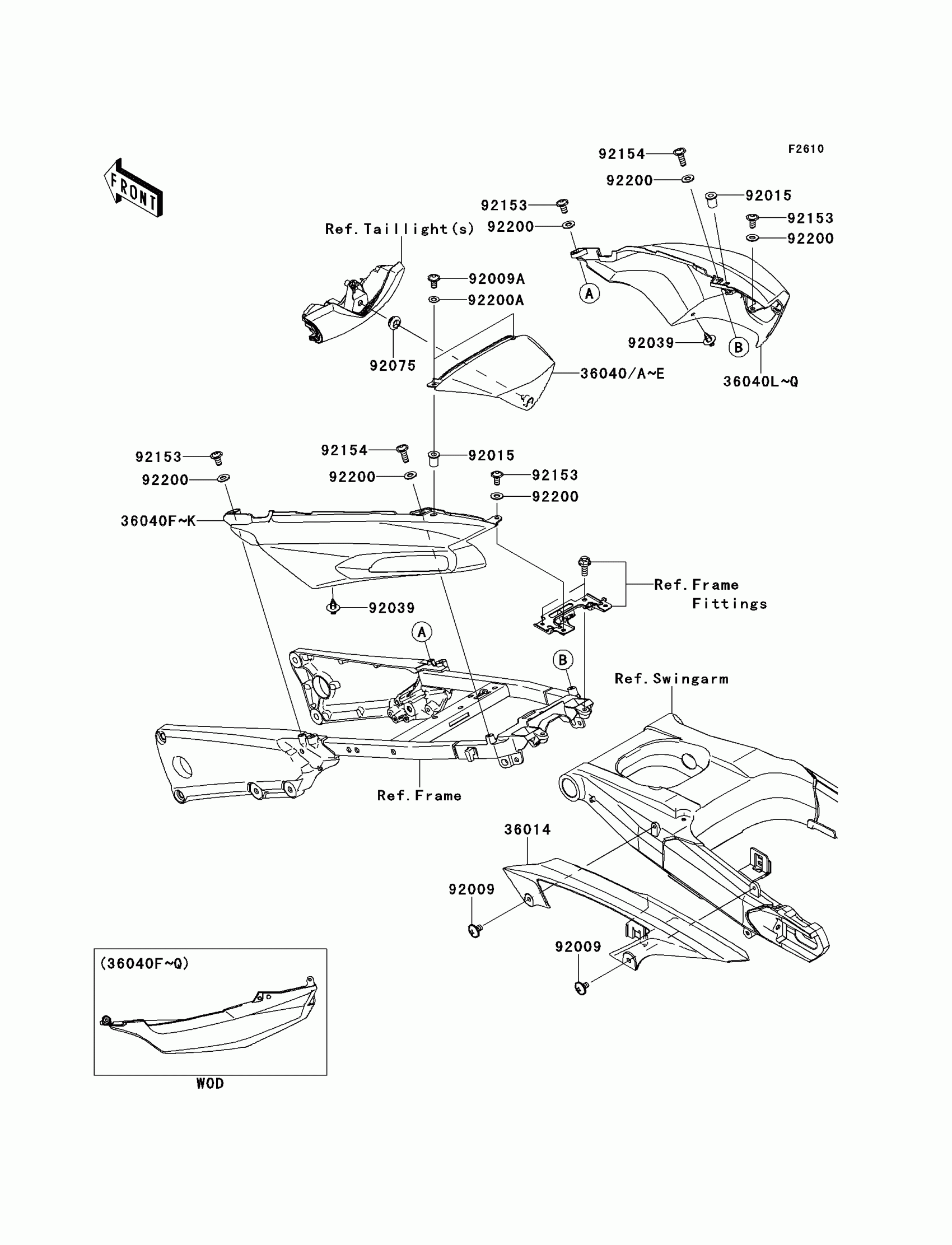

Kawasaki NINJA® ZX™-14R ABS Side Covers/Chain Cover Diagram

Description

Price

36014

CASE-CHAIN

36014-0030

$75.97

36040

COVER-TAIL,CNT,C.B.ORANGE

36040-0058-17L

$101.79

36040C

COVER-TAIL,CNT,G.B.GREEN

36040-0058-40R

$98.33

36040D

COVER-TAIL,CNT,F.EBONY

36040-0058-45L

$97.43

36040F

COVER-TAIL,LH,C.B.ORANGE

36040-0136-17L

$273.89

36040I

COVER-TAIL,LH,G.B.GREEN

36040-0136-40R

$263.67

36040J

COVER-TAIL,LH,F.EBONY

36040-0136-45L

$228.35

36040L

COVER-TAIL,RH,C.B.ORANGE

36040-0137-17L

$273.89

36040O

COVER-TAIL,RH,G.B.GREEN

36040-0137-40R

$263.67

36040P

COVER-TAIL,RH,F.EBONY

36040-0137-45L

$228.35

92009

SCREW,6X10

92009-1661

$3.29

92009A

SCREW,5X16

92009-1909

$1.47

92015

NUT,WELL,5MM

92015-1757

$5.58

92039

RIVET

92039-0015

$2.14

92075

DAMPER,6X16X7

92075-1011

$5.61

92153

BOLT,SOCKET,6X12

92153-1617

$1.04

92154

BOLT,SOCKET,6X18

92154-0139

$1.30

92200

WASHER,6.5X14X1

92200-1388

$1.76

92200A

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.20
