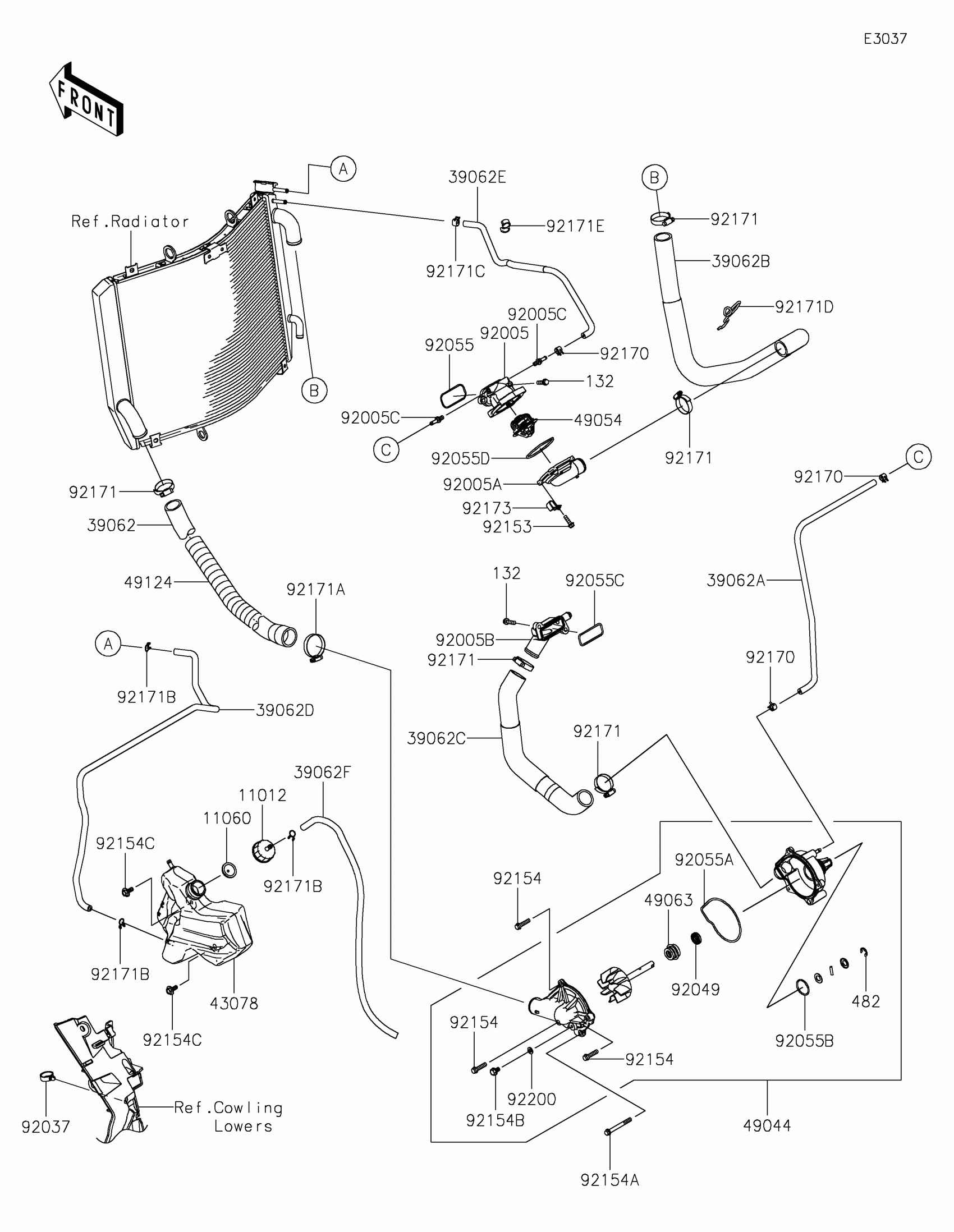

Kawasaki Ninja ZX-14R ABS SE Water Pipe Diagram

#

Description
Price

11012

CAP

11012-1854

$9.14

11060

GASKET,RESERVOIR TANK CAP

11060-1349

$4.80

39062

HOSE-COOLING,RAD-W/P

39062-0113

$33.47

39062A

HOSE-COOLING,L=514.9

39062-0123

Unavailable

39062B

HOSE-COOLING,CYL.HEAD-RAD.

39062-0212

$75.97

39062C

HOSE-COOLING,W/P-CYLINDER

39062-0611

$44.77

39062D

HOSE-COOLING,RAD.-RESERVOIR

39062-0613

$14.25

39062E

HOSE-COOLING,AIR VENT

39062-0614

$12.88

39062F

HOSE-COOLING,5.5X10.5X550

39062-1208

$38.54

43078

RESERVOIR

43078-0556

$32.86

49044

PUMP-WATER

49044-0010

$317.03

49054

THERMOSTAT

49054-0004

$51.97

49063

SEAL-MECHANICAL

49063-0001

$33.87

49124

SPRING-TUBE GUARD

49124-0003

$47.94

92005

FITTING,THERMO CASE

92005-0047

$41.83

92005A

FITTING,THERMO CAP

92005-0814

$70.91

92005B

FITTING,CYLINDER

92005-0815

$40.63

92005C

FITTING

92005-0826

$9.86

92037

CLAMP,HOSE

92037-1827

$5.69

92049

SEAL-OIL

92049-0752

$16.97

92055

RING-O,YP 27.6 57.6 1.9

92055-0021

$2.84

92055A

RING-O

92055-0770

$14.66

92055B

RING-O

92055-0771

$9.29

92055C

RING-O

92055-1402

$5.99

92055D

RING-O,THERMOSTAT CAP

92055-1699

$6.91

92153

BOLT,FLANGED,5X18

92153-1588

$1.20

92154

BOLT,FLANGED,6X25

92154-1287

$1.98

92154A

BOLT,FLANGED,6X55

92154-1288

$1.47

92154B

BOLT,DRAIN

92154-1362

$8.42

92154C

BOLT,UPSET-WP,6X16

92154-1850

$1.53

92170

CLAMP

92170-2042

$1.00

92171

CLAMP

92171-0179

$6.25

92171A

CLAMP

92171-0180

$12.73

92171B

CLAMP

92171-0718

$1.81

92171C

CLAMP

92171-0719

$1.57

92171D

CLAMP

92171-0786

$7.61

92171E

CLAMP

92171-1184

$2.03

92173

CLAMP

92173-0082

$5.42

92200

WASHER,DRAIN

92200-0498

$2.28

132

BOLT-FLANGED-SMALL,6X20

132BC0620

$0.90

482

CIRCLIP-TYPE-E,8MM

482EA8000

$0.63
