Description

Price

11054

BRACKET

11054-0554

$24.54

11056

BRACKET,ISCV

11056-1175

$9.43

16014

SCREW-PILOT AIR

16014-0005

$30.76

16073

INSULATOR,INJECTER

16073-1123

$9.73

16163

THROTTLE-ASSY

16163-0780

$1,921.63

21176

SENSOR,PRESSURE

21176-0111

$222.28

26031

HARNESS

26031-1425

$179.28

49033

NOZZLE-INJECTION

49033-0557

$132.97

49056

PIPE-INJECTION

49056-0017

$211.69

49116

VALVE-ASSY,ISC

49116-0706

$243.98

51044

TUBE-ASSY

51044-0727

$14.76

92005

FITTING

92005-1380

$16.65

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.95

92066

PLUG,FITTING

92066-1549

$7.82

92161

DAMPER

92161-0673

$5.54

92170

CLAMP

92170-3749

$3.57

92192

TUBE,3.2X7.4X115

92192-0131

$4.11

92192A

TUBE,3.2X7.4X60

92192-0576

$4.87

92192B

TUBE,3.2X7.4X175

92192-0577

$8.60

92192C

TUBE,3.2X7.4X50

92192-0578

$4.87

92192D

TUBE,THROTTLE #1-ISCV

92192-1009

$16.21

92192E

TUBE,THROTTLE #2-ISCV

92192-1010

$11.66

92192F

TUBE,THROTTLE #3-ISCV

92192-1011

$13.06

92192G

TUBE,THROTTLE #4-ISCV

92192-1012

$10.51

92192H

TUBE,BODY LH-SENSOR

92192-1088

$14.76

92192I

TUBE,FITTING-SENSOR

92192-1089

$30.40

120

BOLT-SOCKET,5X12

120CA0512

$1.57

130

BOLT-FLANGED,6X12

130BA0612

$1.72

220

SCREW-PAN-CROS,6X12

220AA0612

$1.19

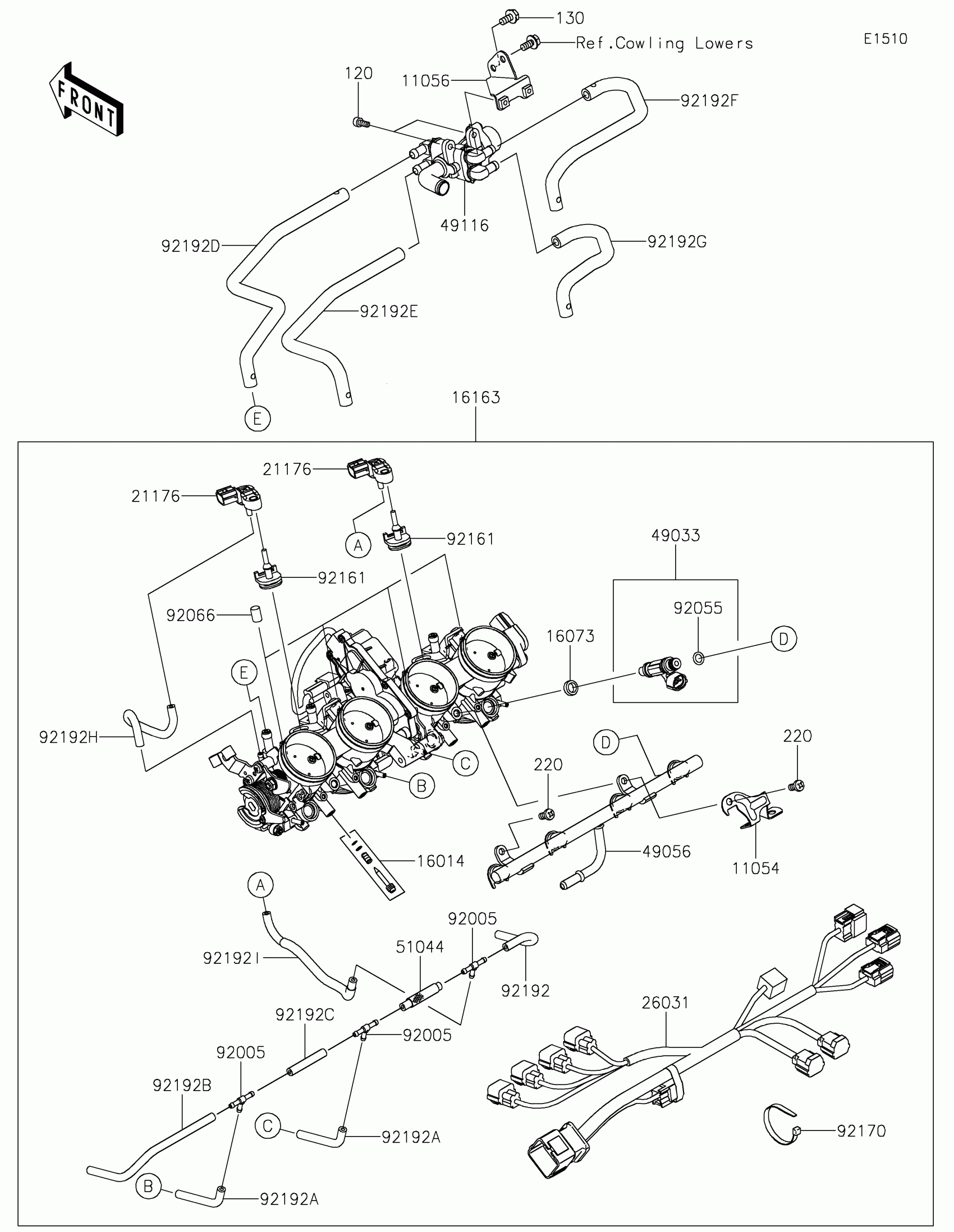

Kawasaki Ninja ZX-14R ABS SE Throttle Diagram
