Rear Master Cylinder

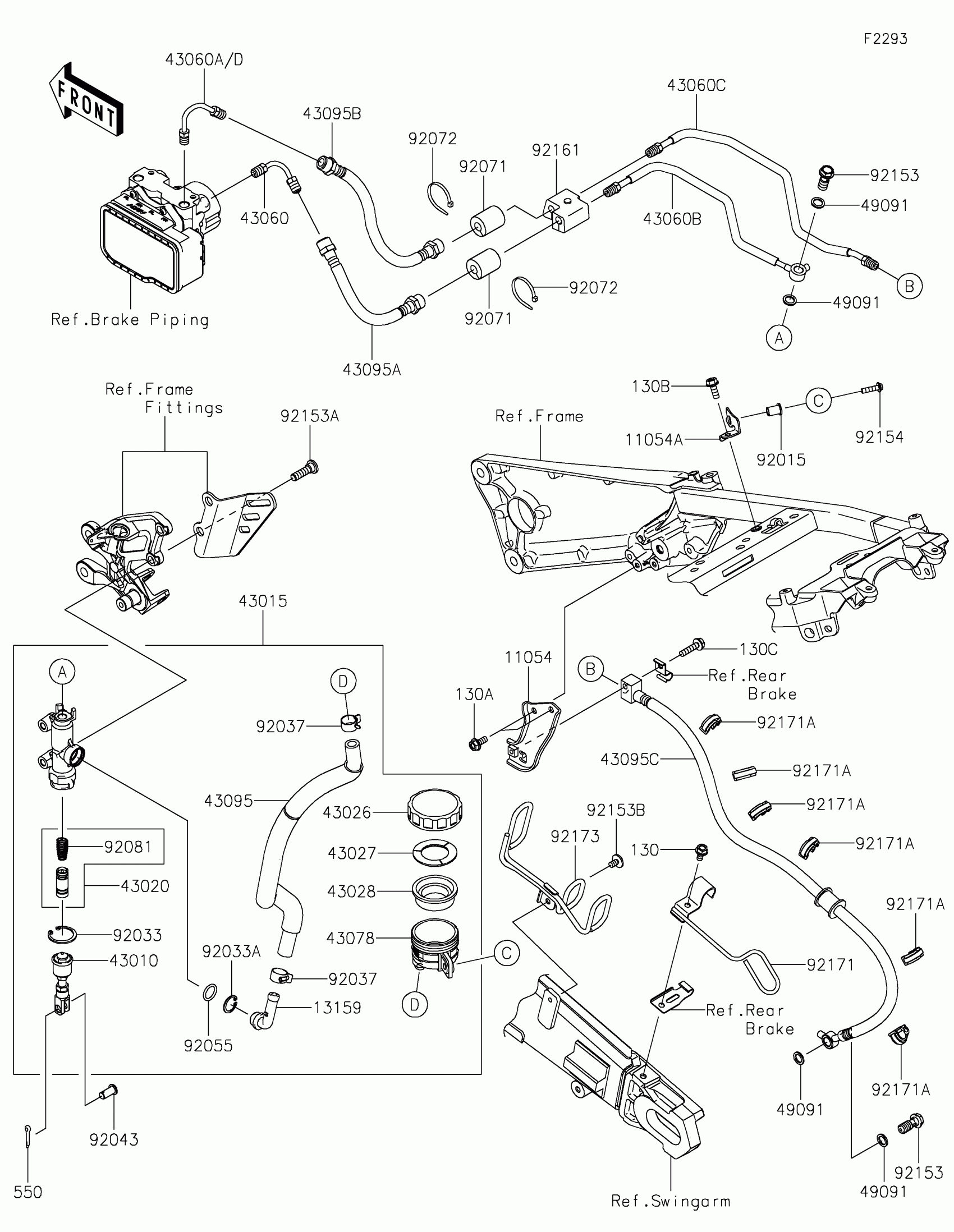

Kawasaki Ninja ZX-14R ABS SE Rear Master Cylinder Diagram
#
11054
BRACKET,HOSE JOINT
11054-0060
$14.47
11054A
BRACKET,RESERVOIR TANK,RR
11054-0184
$8.05
13159
CONNECTOR,RR MASTER CYLINDER
13159-1052
$14.10
43010
ROD-ASSY-BRAKE
43010-0012
$71.10
43015
CYLINDER-ASSY-MASTER,RR
43015-0584
$410.93
43020
PISTON-COMP-BRAKE
43020-1057
$65.22
43026
CAP-BRAKE
43026-1051
$34.20
43027
PLATE-DIAPHRAGM
43027-1051
$5.32
43028
DIAPHRAGM,MASTER CYLINDER
43028-1057
$19.09
43060
PIPE-BRAKE,HU-M/CYLINDER
43060-0014
$21.82
43060B
PIPE-BRAKE,HU-RR M/CYLINDER
43060-0020
$81.90
43060C
PIPE-BRAKE,HU-RR CALIPER
43060-0061
$48.45
43060D
PIPE-BRAKE,HU-RR CALIPER
43060-0355
$21.82
43078
RESERVOIR,RR MASTER CYLINDER
43078-1082
$28.25
43095
HOSE-BRAKE,RR MASTER CYLINDER
43095-0235
$23.25
43095A
HOSE-BRAKE,RR M/CYL.-HU
43095-0612
$86.11
43095B
HOSE-BRAKE,HU-RR CALIPER
43095-0613
$107.50
43095C
HOSE-BRAKE,HU-RR CALIPER
43095-0614
$107.50
49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
$2.15
92015
NUT,WELL,5MM
92015-1757
$7.29
92033
RING-SNAP,20.9X24.6X1.2
92033-0079
$7.78
92033A
RING-SNAP,20.5MM
92033-1186
$4.96
92037
CLAMP,BRAKE HOSE
92037-1547
$12.35
92043
PIN,8X17
92043-0104
$3.90
92055
RING-O,14.8X2.4
92055-0741
$3.71
92071
GROMMET
92071-1143
$6.51
92072
BAND,L=148
92072-3768
$3.92
92081
SPRING,MASTER CYLINDER
92081-1737
$12.23
92153
BOLT,OIL,L=23
92153-0627
$5.48
92153A
BOLT,SOCKET,8X30
92153-1624
$3.90
92153B
BOLT,SOCKET,6X10
92153-1628
$1.78
92154
BOLT,SOCKET,5X20
92154-0829
$2.67
92161
DAMPER,HOSE CLAMP
92161-0314
$11.93
92171
CLAMP,BRAKE HOSE,RR
92171-0553
$13.60
92171A
CLAMP,BRAKE HOSE
92171-1819
$5.54
92173
CLAMP
92173-0989
$47.49
130
BOLT-FLANGED,6X12
130BA0612
$1.72
130A
BOLT-FLANGED,6X14
130BA0614
$1.20
130B
BOLT-FLANGED,6X16
130BA0616
$1.20
130C
BOLT-FLANGED,6X25
130BB0625
$2.80
550
PIN-COTTER,2.0X15
550AA2015
$1.12
