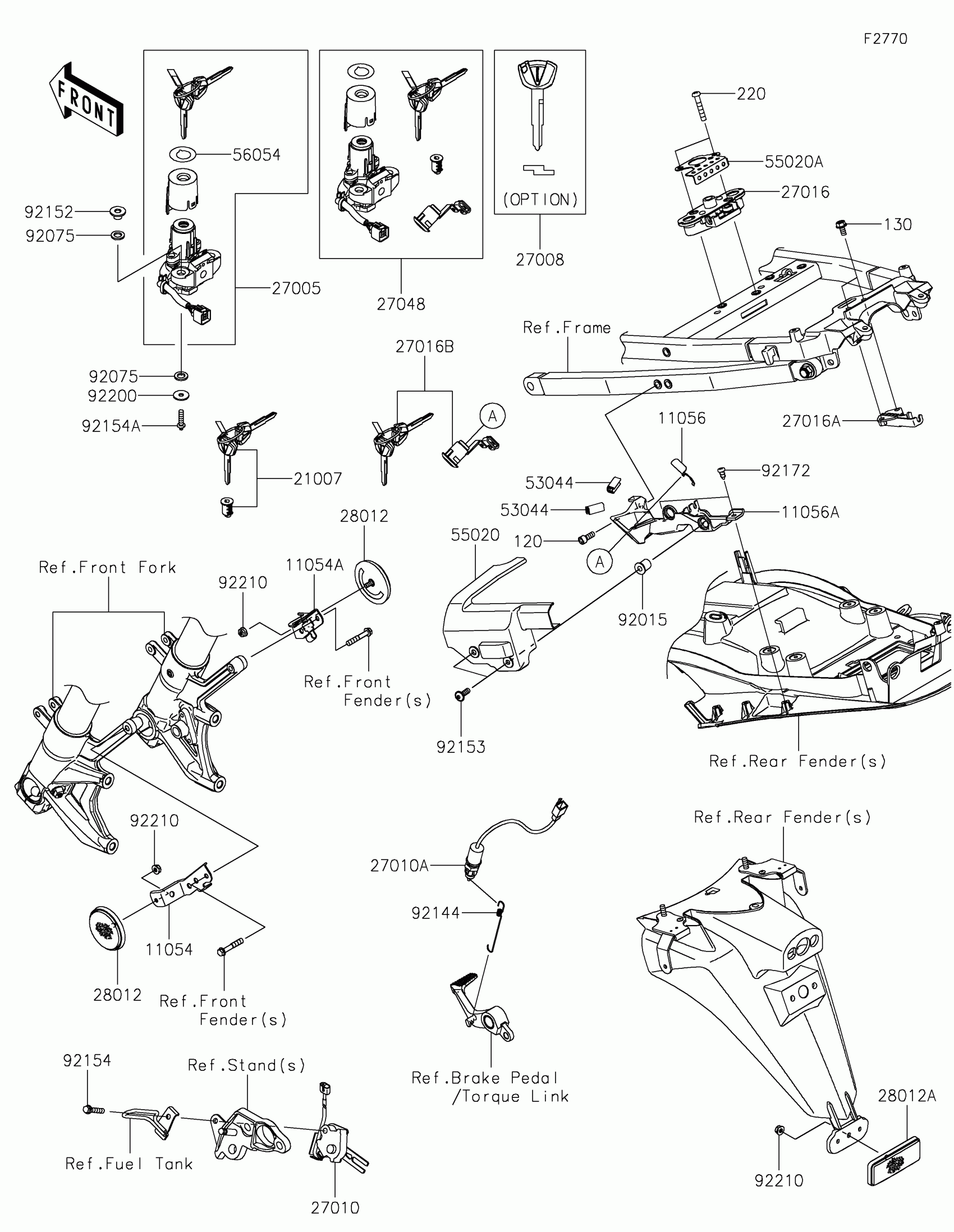

Kawasaki Ninja ZX-14R ABS SE Ignition Switch/Locks/Reflectors Diagram

Description

Price

11054

BRACKET,REFLECTOR,FR,LH

11054-0692

$15.93

11054A

BRACKET,REFLECTOR,FR,RH

11054-1227

$31.04

11056

BRACKET,CLASP

11056-0238

$4.53

11056A

BRACKET

11056-1512

$18.61

21007

ROTOR,LOCK,TANK CAP

21007-5068

$90.02

27005

SWITCH-ASSY-IGNITION

27005-0568

$178.58

27008

KEY-LOCK,BLANK

27008-0069

$19.64

27010

SWITCH,SIDE STAND

27010-0064

$137.18

27010A

SWITCH,REAR BRAKE

27010-1479

$26.58

27016

LOCK-ASSY,SEAT STRIKER

27016-0035

$65.38

27016A

LOCK-ASSY,SEAT STRIKER

27016-1115

$29.14

27016B

LOCK-ASSY,SEAT

27016-5374

$92.15

27048

SWITCH-ASSY

27048-5013

$410.42

28012

REFLECTOR-REFLEX

28012-0008

$24.88

28012A

REFLECTOR-REFLEX

28012-1077

$21.76

53044

TRIM,L=22

53044-0031

$2.71

55020

GUARD,CABLE

55020-0816

$14.81

55020A

GUARD,SEAT STRIKER

55020-0855

$4.92

56054

MARK,IGNITION SWITCH

56054-0969

Unavailable

92015

NUT

92015-1700

$6.55

92075

DAMPER

92075-1564

$4.15

92144

SPRING,REAR BRAKE SWITCH

92144-1753

$5.58

92152

COLLAR,6.2X10.3X10

92152-1611

$8.12

92153

BOLT,6X18

92153-0478

$1.81

92154

BOLT,FLANGED,6X30

92154-1857

$1.81

92154A

BOLT,TORX,6X22

92154-1858

$3.01

92172

SCREW,TAPPING,5X12

92172-0239

$0.84

92200

WASHER,6X20X1.6

92200-0212

$2.31

92210

NUT,FLANGED,5MM

92210-0007

$1.90

120

BOLT-SOCKET,6X16

120CA0616

$1.77

130

BOLT-FLANGED,6X12

130BA0612

$1.25

220

SCREW-PAN-CROS,6X35

220AA0635

$1.24
