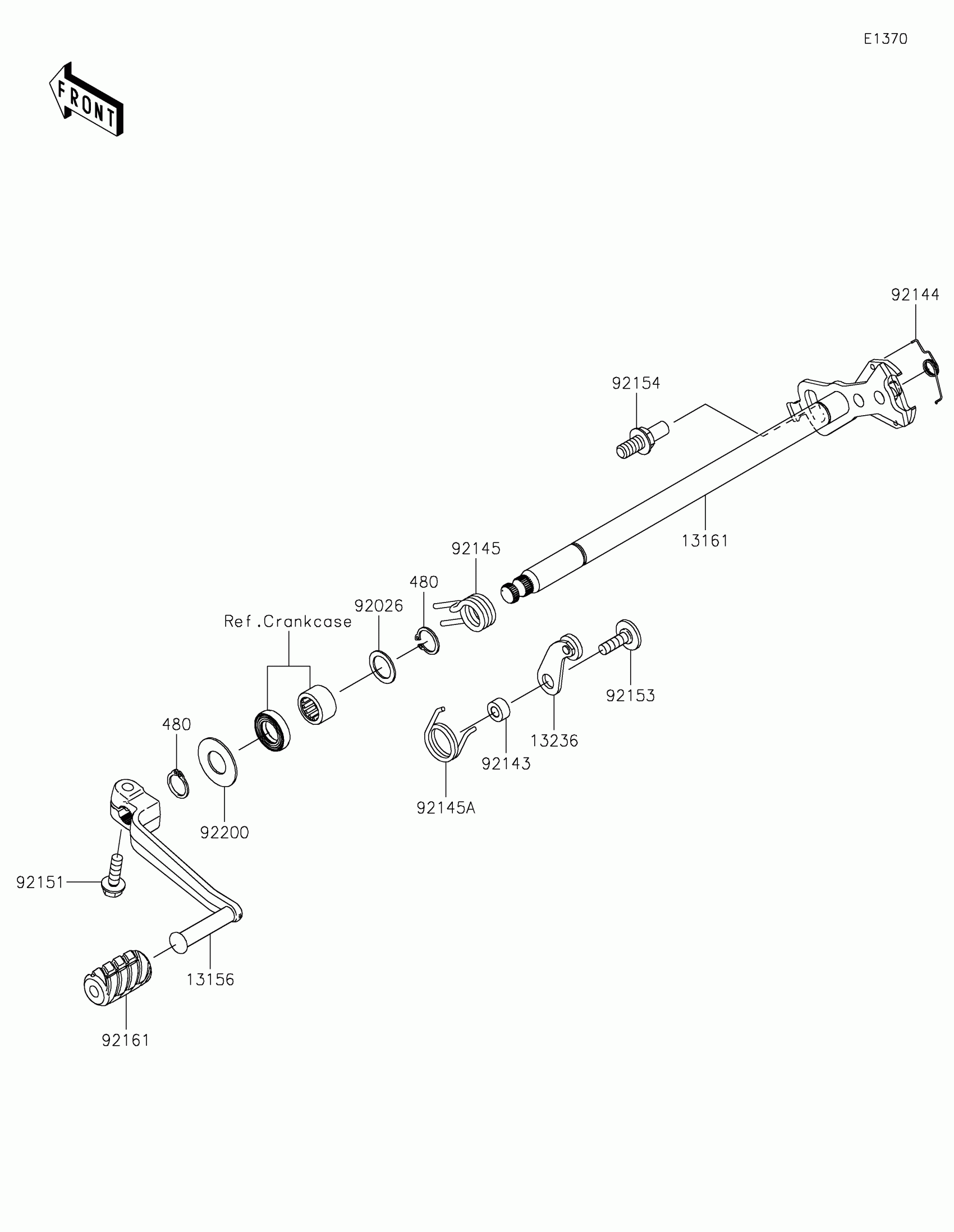

Kawasaki Ninja ZX-14R ABS SE Gear Change Mechanism Diagram

Description

Price

13156

LEVER-CHANGE,PEDAL

13156-0075

$75.15

13161

LEVER-COMP-CHANGE SHAFT

13161-0567

$87.68

13236

LEVER-COMP

13236-1243

$15.84

92026

SPACER,14X20X1.0

92026-1534

$3.85

92143

COLLAR

92143-1595

$9.22

92144

SPRING

92144-1029

$5.93

92145

SPRING

92145-0336

$10.75

92145A

SPRING

92145-0404

$4.66

92151

BOLT,FLANGED,6X20

92151-1226

$1.76

92153

BOLT,6X20

92153-1505

$7.61

92154

BOLT,RETURN SPRING

92154-1838

$8.81

92161

DAMPER

92161-1769

$11.03

92200

WASHER

92200-0265

$1.85

480

CIRCLIP-TYPE-C,14MM

480J1400

$3.81
