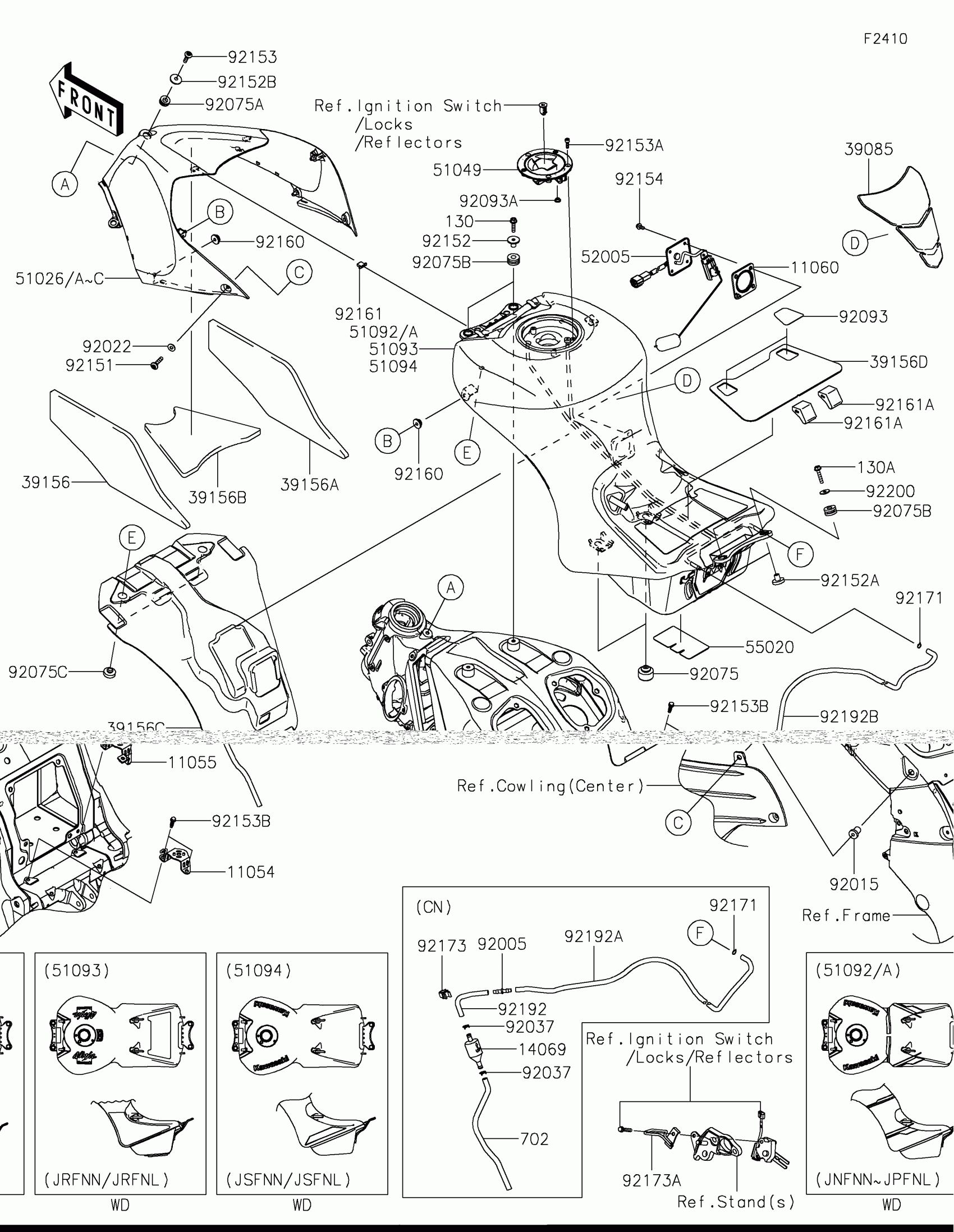

Kawasaki Ninja ZX-14R ABS SE Fuel Tank Diagram

#

Description
Price

11054

BRACKET,FUEL TANK,CNT,LH

11054-0681

$9.37

11055

BRACKET,FUEL TANK,CNT,RH

11055-0063

$11.42

11060

GASKET,FUEL GAUGE

11060-1952

$17.15

39085

PAD-TANK

39085-0011

$115.39

39156

PAD,TANK COVER,LH

39156-0780

$19.69

39156A

PAD,TANK COVER,RH

39156-0781

$19.69

39156B

PAD,TANK COVER,CNT

39156-0782

$14.00

39156C

PAD

39156-0794

$71.42

39156D

PAD,FUEL TANK

39156-0863

$15.02

51026B

COVER TANK,FUEL,M.F.S.BLACK

51026-0008-739

$256.95

51026C

COVER TANK,FUEL,WHITE+GRN+BLU

51026-0008-76A

$403.80

51049

CAP-TANK,FUEL

51049-0746

$139.15

51093

TANK-COMP-FUEL,P.C.WHITE+BLU

51093-5387-69W

$1,865.14

51094

TANK-COMP-FUEL,M.M.S.RED+BLK

51094-5058-76Q

$1,708.10

52005

GAUGE,FUEL

52005-0093

$214.45

55020

GUARD,FUEL TANK

55020-0551

$16.03

92015

NUT,RUBBER,6MM

92015-1692

$5.61

92022

WASHER,6.5X16X1

92022-1143

$2.99

92075

DAMPER

92075-015

$3.81

92075A

DAMPER

92075-1634

$3.57

92075B

DAMPER,10X24X12

92075-1690

$3.81

92075C

DAMPER,9X24X14

92075-281

$4.67

92093

SEAL

92093-0583

$7.27

92093A

SEAL,FUEL TANK CAP

92093-1030

$5.93

92151

BOLT,SOCKET,6X30

92151-1605

$1.68

92152

COLLAR

92152-0048

$2.29

92152A

COLLAR

92152-0364

Unavailable

92152B

COLLAR

92152-0424

$5.31

92153

BOLT,SOCKET,6X23

92153-1267

$1.98

92153A

BOLT,SOCKET,5X16

92153-1616

$1.04

92153B

BOLT,FLANGED,6X20

92153-1694

$1.81

92154

BOLT,FLANGED,5X12

92154-1856

$1.32

92160

DAMPER

92160-1613

$2.84

92161

DAMPER

92161-0365

$4.04

92161A

DAMPER

92161-1481

$12.56

92173A

CLAMP

92173-1029

$20.15

92192B

TUBE,DRAIN,6X9X895

92192-1675

$14.73

92200

WASHER,6.5X20X1.6

92200-0283

$1.08

130

BOLT-FLANGED,6X25

130BA0625

$0.97

130A

BOLT-FLANGED,6X30

130BA0630

$1.13
