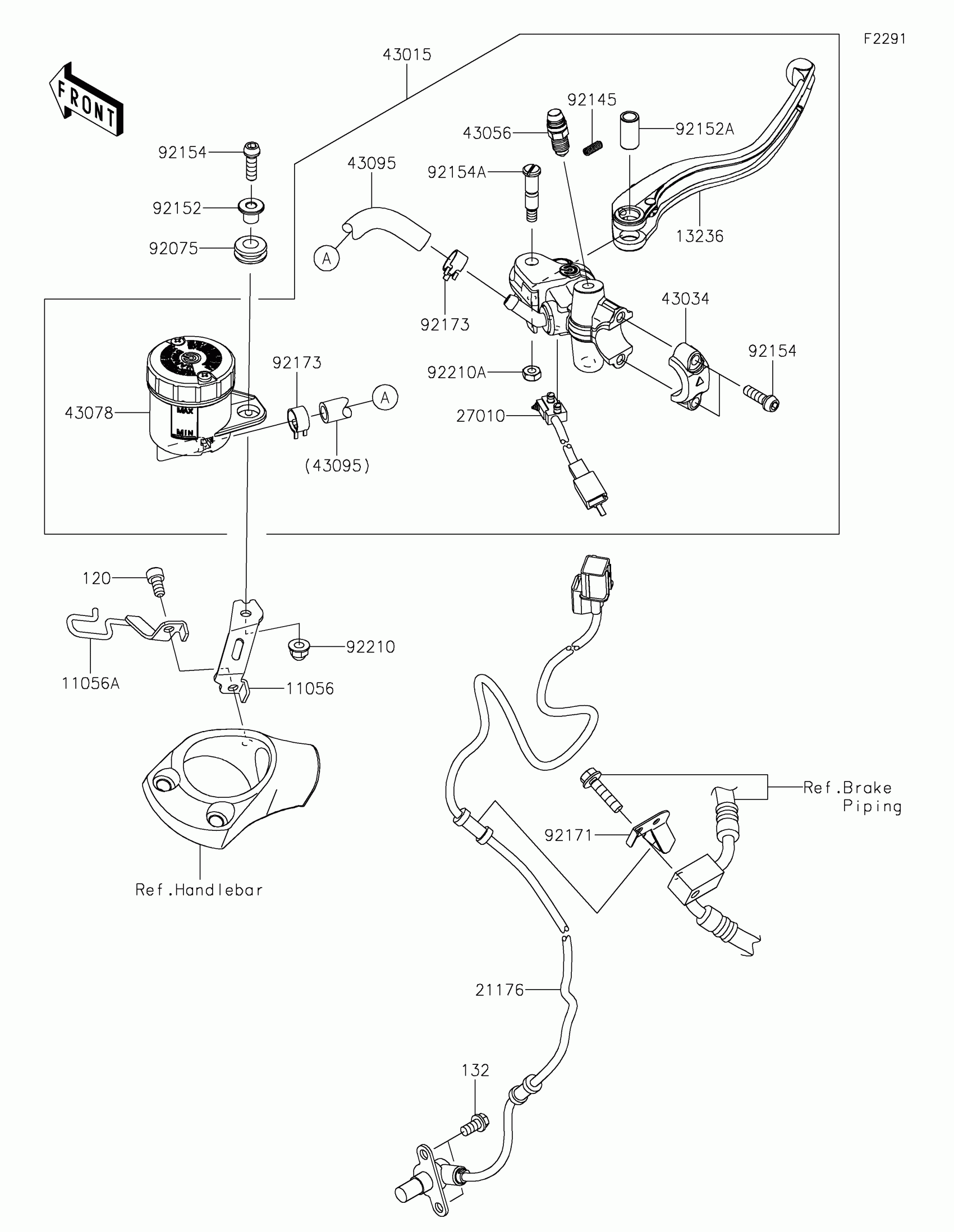

Kawasaki Ninja ZX-14R ABS SE Front Master Cylinder Diagram

Description

Price

11056

BRACKET,RESERVOIR

11056-7711

$21.54

11056A

BRACKET,THROTTLE CABLE

11056-7789

$13.88

13236

LEVER-COMP,BRAKE

13236-0770

$97.82

21176

SENSOR,SPEED,FR

21176-0051

$149.11

27010

SWITCH,BRAKE

27010-0831

$73.63

43015

CYLINDER-ASSY-MASTER,FR

43015-0671

$446.54

43034

HOLDER-BRAKE

43034-0132

$51.23

43056

BREATHER-BRAKE

43056-0019

$24.76

43078

RESERVOIR

43078-0577

$29.79

43095

HOSE-BRAKE

43095-0941

$16.39

92075

DAMPER

92075-1028

$3.57

92145

SPRING

92145-1683

$2.63

92152

COLLAR,6X16X10.6

92152-2110

$22.61

92152A

COLLAR,LEVER

92152-2151

$8.75

92154

BOLT,SOCKET,6X20

92154-1644

$1.77

92154A

BOLT,LEVER

92154-1809

$11.27

92171

CLAMP

92171-0624

$8.46

92173

CLAMP,HOSE

92173-1498

$1.88

92210

NUT,CAP,6MM

92210-0322

$1.04

92210A

NUT,U

92210-1424

$1.88

120

BOLT-SOCKET,6X12

120CA0612

$1.27

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97
