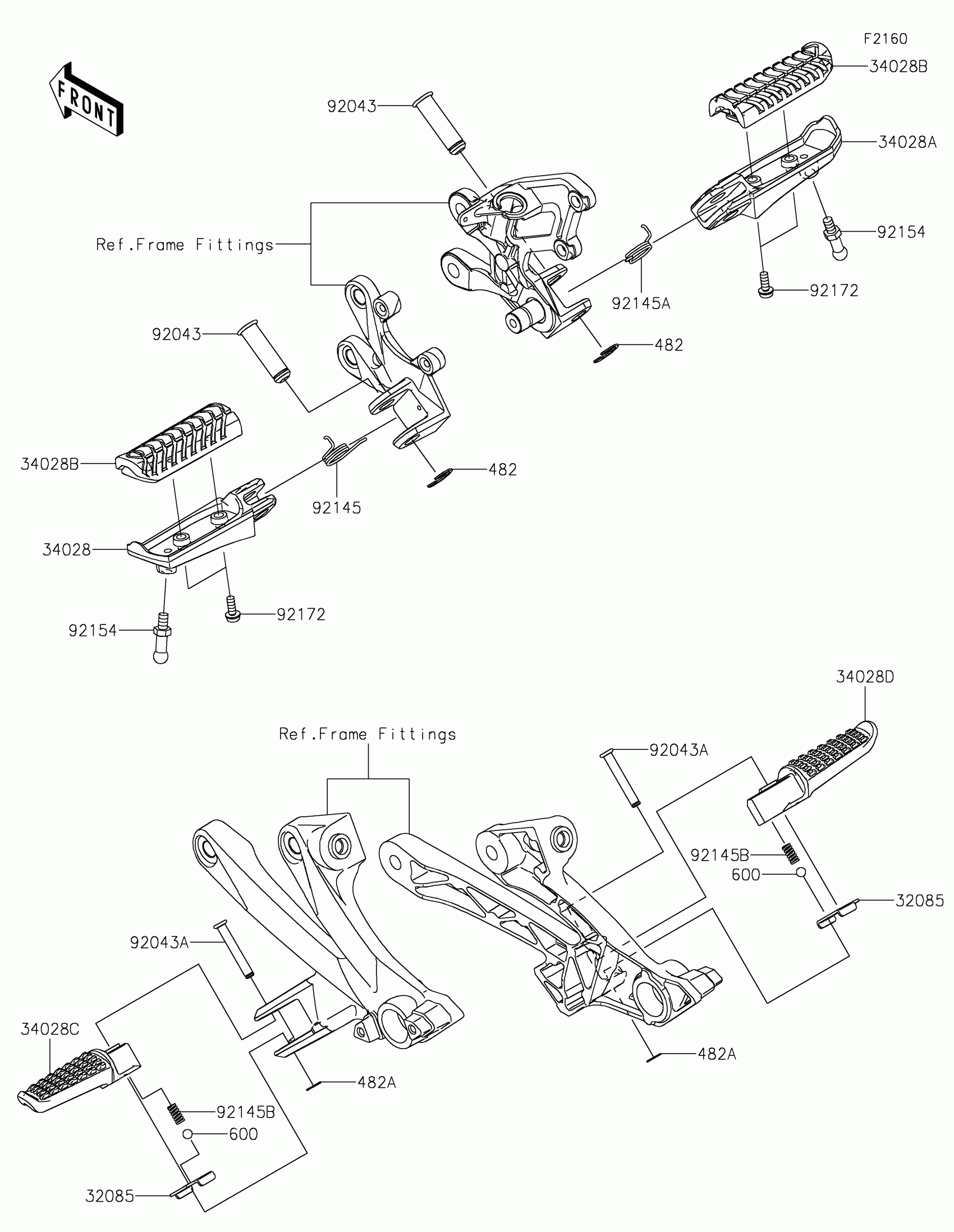

Kawasaki Ninja ZX-14R ABS SE Footrests Diagram

Description

Price

32085

STOPPER,REAR STEP

32085-0046

$2.90

34028

STEP,FR,LH

34028-0031

$51.15

34028A

STEP,FR,RH

34028-0032

$51.15

34028B

STEP,FR,RUBBER

34028-0322

$26.76

34028C

STEP,RR,LH

34028-0329

$70.39

34028D

STEP,RR,RH

34028-0330

$70.39

92043

PIN,12X42.5

92043-1594

$6.00

92043A

PIN,6X40

92043-1595

$2.34

92145

SPRING,STEP RETURN,LH

92145-0360

$3.87

92145A

SPRING,STEP RETURN,RH

92145-0361

$3.87

92145B

SPRING

92145-1319

$1.81

92154

BOLT,BANK SENSOR,6X10

92154-1854

$5.65

92172

SCREW,5X14

92172-0976

$3.94

482

CIRCLIP-TYPE-E,10MM

482EA0100

$1.04

482A

CIRCLIP-TYPE-E

482EA5000

$1.34

600

BALL-STEEL,1/4

600A0800

$0.62
