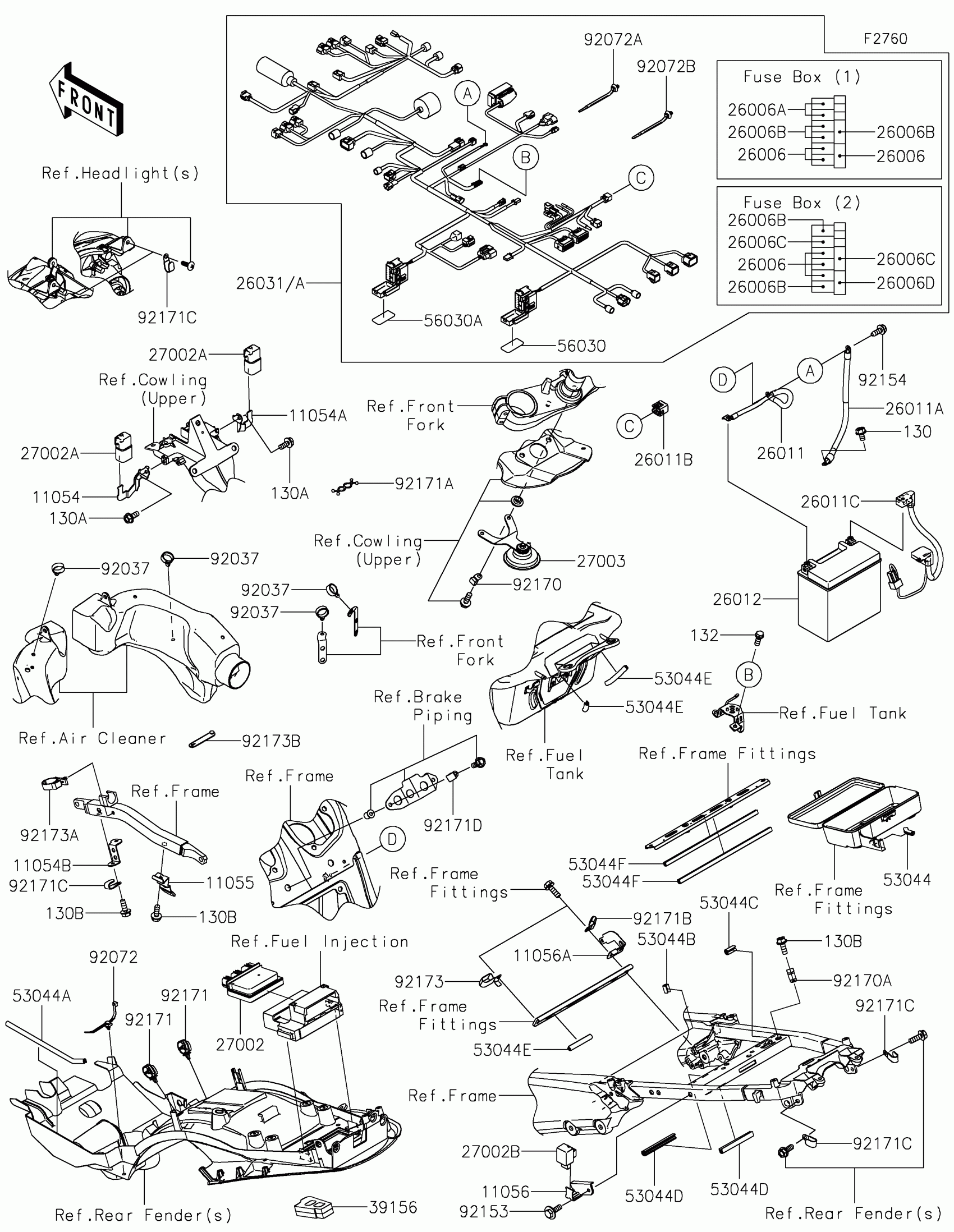

Kawasaki Ninja ZX-14R ABS SE Chassis Electrical Equipment Diagram

#

Description
Price

11054

BRACKET,RELAY,LH

11054-0497

$15.20

11054A

BRACKET,RELAY,RH

11054-0498

$15.20

11054B

BRACKET,HARNESS

11054-0551

$8.68

11055

BRACKET,HARNESS

11055-0411

$10.30

11056

BRACKET,SIGNAL LAMP RELAY

11056-7989

$8.68

11056A

BRACKET,HARNESS

11056-7991

$7.75

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,2A,GRAY

26006-0052

$6.57

26006B

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26006C

FUSE,MINI BLADE,20A,YELLOW

26006-1079

$4.87

26006D

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,BATTERY(-)

26011-0087

$29.43

26011A

WIRE-LEAD,BATTERY(-)

26011-0255

$29.75

26011B

WIRE-LEAD,CONNECTOR COVER

26011-0275

$14.13

26011C

WIRE-LEAD,BATTERY(+)-STARTER

26011-0750

$52.33

26012

BATTERY,FTX14-BS,12V 12AH

26012-0950

Unavailable

27002

RELAY-ASSY

27002-0050

$143.14

27002A

RELAY-ASSY

27002-1086

$36.91

27002B

RELAY-ASSY,TURN SIGNAL

27002-1101

$72.36

27003

HORN

27003-0069

$80.64

39156

PAD

39156-0846

$14.76

53044

TRIM,L=30

53044-0001

$2.80

53044A

TRIM,L=220

53044-0022

$13.60

53044B

TRIM,L=15

53044-0025

$3.39

53044C

TRIM,L=22

53044-0031

$3.39

53044D

TRIM,L=85

53044-0561

$5.05

53044E

TRIM,L=60

53044-1249

$6.57

53044F

TRIM,AIR DUCT COVER

53044-1265

$11.99

56030

LABEL,FUSE BOX2

56030-0769

$4.37

56030A

LABEL,FUSE

56030-0960

$4.37

92037

CLAMP,HOSE

92037-1827

$7.45

92072

BAND

92072-0066

$3.39

92072A

BAND

92072-1392

$3.74

92153

BOLT,6X20

92153-0562

$2.12

92154

BOLT,FLANGED,6X16

92154-0551

$1.63

92170

CLAMP

92170-1577

$3.83

92170A

CLAMP

92170-1925

$2.40

92171

CLAMP,CLIP,DIA=20

92171-0068

$2.80

92171A

CLAMP

92171-0476

$3.90

92171B

CLAMP

92171-0689

$8.68

92171C

CLAMP

92171-0739

$5.65

92171D

CLAMP

92171-0813

$8.68

92173

CLAMP,84MM

92173-1008

$5.33

92173A

CLAMP,CABLE,28MM

92173-1062

$3.72

92173B

CLAMP

92173-1526

$3.94

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X14

130BA0614

$1.20

130B

BOLT-FLANGED,6X16

130BA0616

$1.20

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51
