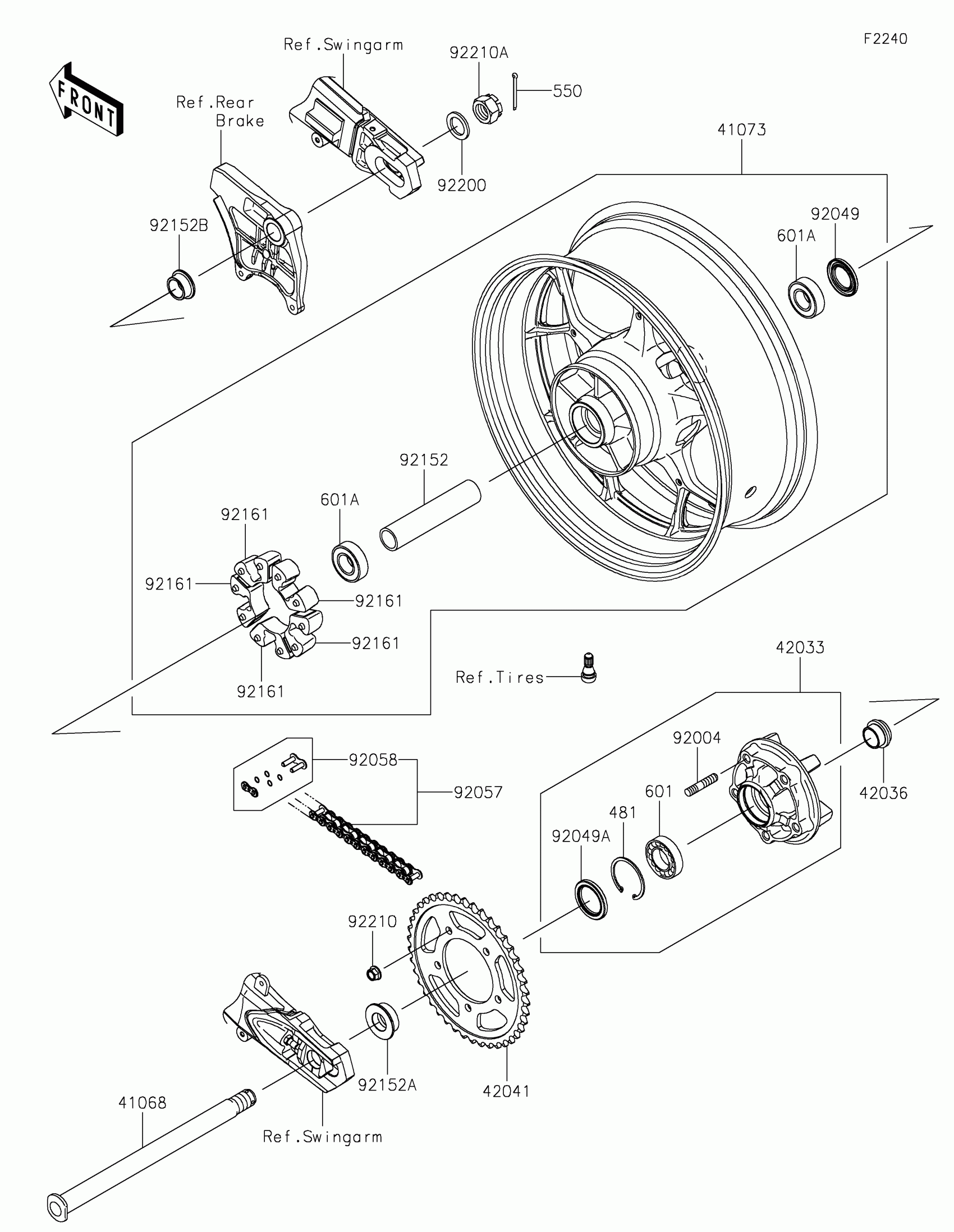

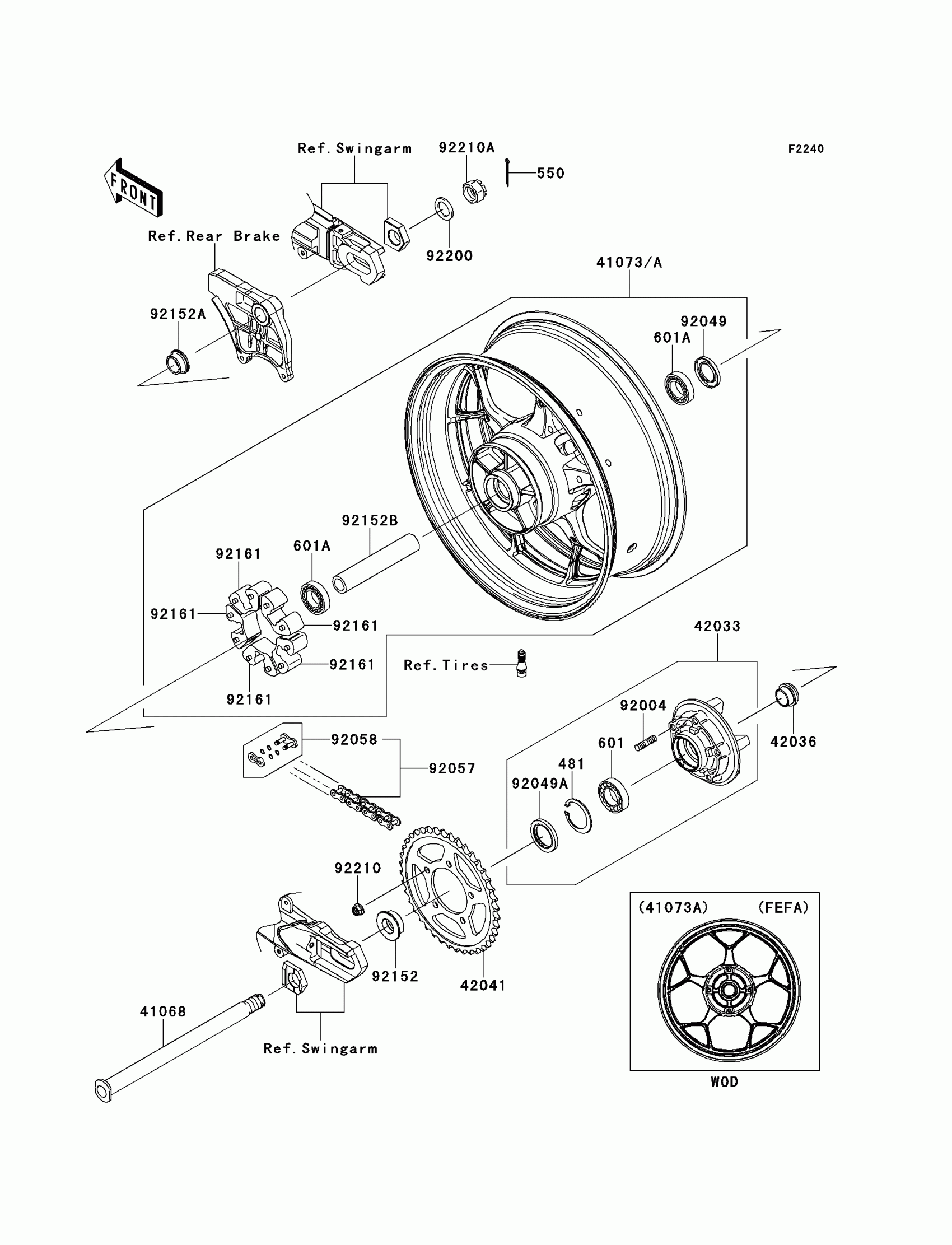

Kawasaki NINJA® ZX™-14R ABS Rear Wheel/Chain Diagram

Description

Price

481

CIRCLIP

481J5500

Unavailable

550

PIN-COTTER,4.0X40

550AA4040

$1.05

601

BEARING-BALL,#6006G

601B6006G

$25.77

601A

BEARING-BALL

601B6205UU

$26.20

41068

AXLE,RR

41068-0050

Unavailable

41073A

WHEEL-ASSY,RR,G.BLACK

41073-0574-18F

$1,086.47

42033

COUPLING-ASSY,RR HUB

42033-0021

$271.81

42036

SLEEVE,RR HUB,L=22

42036-1279

$25.74

42041

SPROCKET-HUB,42T

42041-0117

$99.31

92004

STUD,10X24

92004-0029

$4.92

92049

SEAL-OIL,31X52X5

92049-0722

$16.06

92049A

SEAL-OIL,PJN40556

92049-1263

$16.81

92057

CHAIN,DRIVE,EK530RMX/3DX118L

92057-0579

$328.26

92058

JOINT-CHAIN

92058-0031

$14.64

92152

COLLAR,RR AXLE,LH,L=16.5

92152-0340

$40.08

92152A

COLLAR,RR AXLE,RH,L=16

92152-0341

$59.08

92152B

COLLAR,RR HUB,L=152.5

92152-1080

$34.13

92161

DAMPER,SHOCK,RR HUB

92161-1286

$25.61

92200

WASHER,25.5X38X3.2

92200-0278

$1.85

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

92210A

NUT,CASTLE,24MM

92210-0280

$10.34
