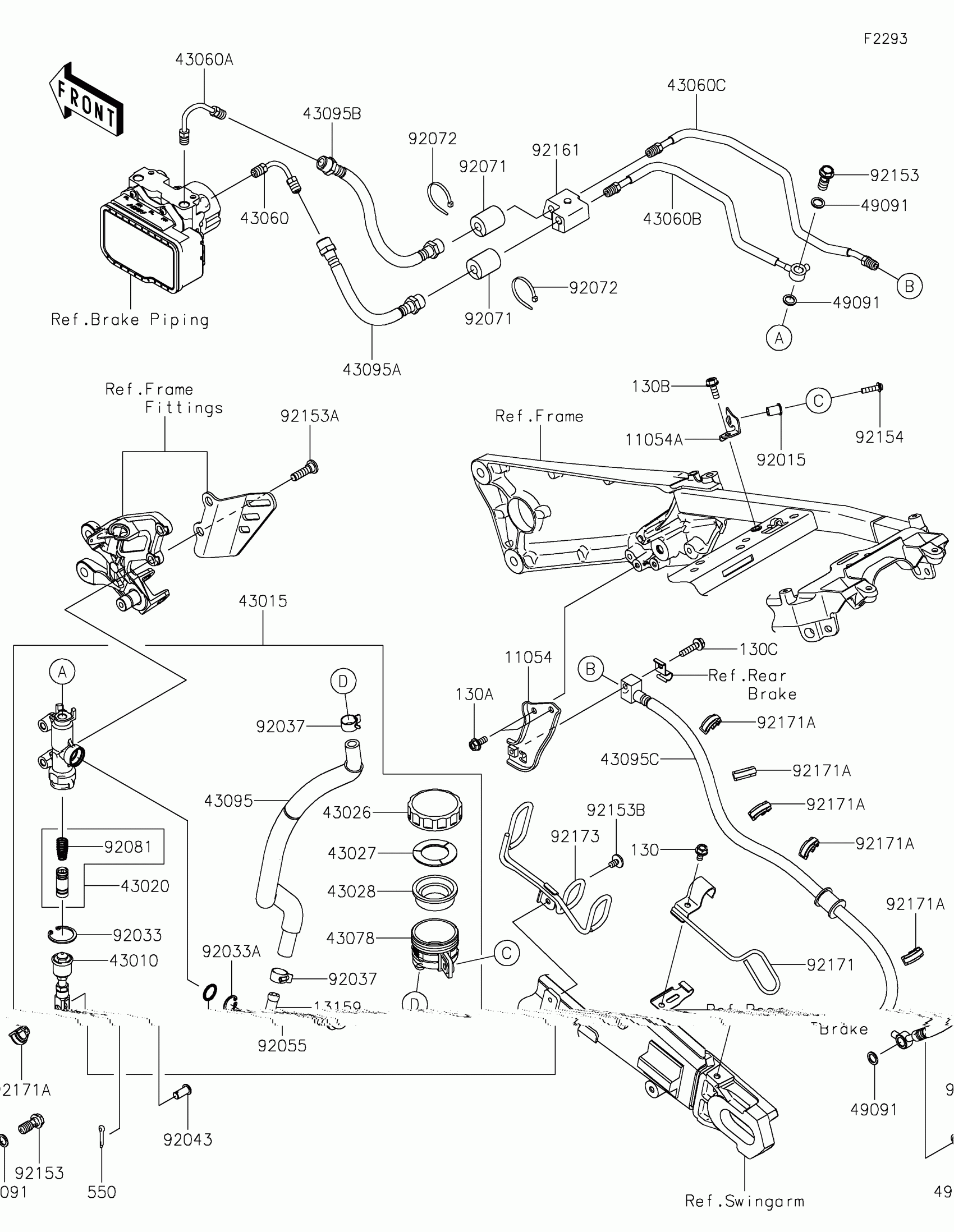

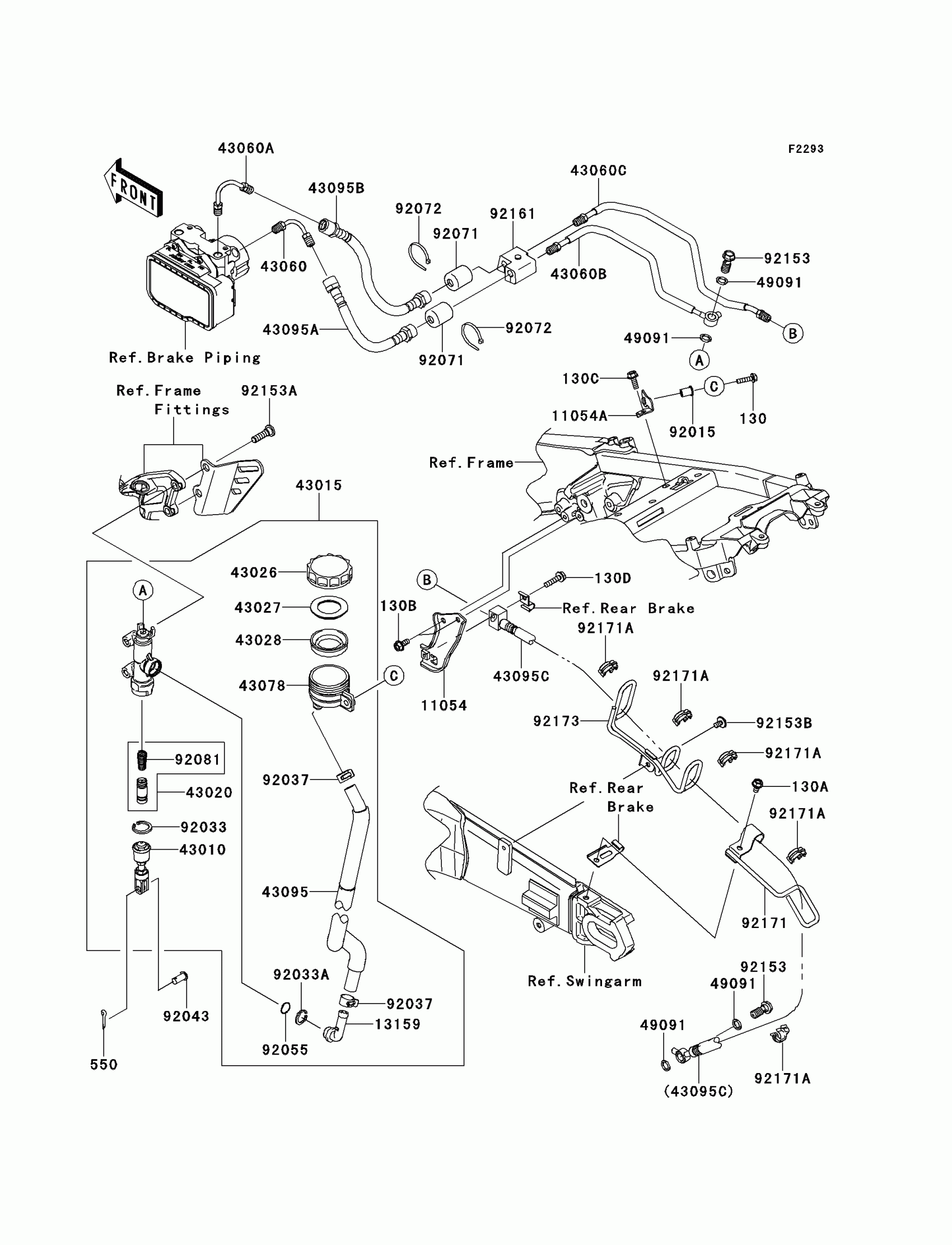

Kawasaki NINJA® ZX™-14R ABS Rear Master Cylinder Diagram

#

Description
Price

11054

BRACKET,HOSE JOINT

11054-0060

$14.47

11054A

BRACKET,RESERVOIR TANK,RR

11054-0184

$8.05

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X14

130BA0614

$1.20

130B

BOLT-FLANGED,6X16

130BA0616

$1.20

130C

BOLT-FLANGED,6X25

130BB0625

$2.80

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$14.10

43010

ROD-ASSY-BRAKE

43010-0012

$71.10

43015

CYLINDER-ASSY-MASTER,RR

43015-0584

$410.93

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43060

PIPE-BRAKE,HU-M/CYLINDER

43060-0014

$21.82

43060A

PIPE-BRAKE,HU-RR CALIPER

43060-0019

$21.82

43060B

PIPE-BRAKE,HU-RR M/CYLINDER

43060-0020

$81.90

43060C

PIPE-BRAKE,HU-RR CALIPER

43060-0061

$48.45

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

$28.25

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0235

$23.25

43095A

HOSE-BRAKE,RR M/CYL.-HU

43095-0612

$86.11

43095B

HOSE-BRAKE,HU-RR CALIPER

43095-0613

$107.50

43095C

HOSE-BRAKE,HU-RR CALIPER

43095-0614

$107.50

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92015

NUT,WELL,5MM

92015-1757

$7.29

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92037

CLAMP,BRAKE HOSE

92037-1547

$12.35

92043

PIN,8X17

92043-0104

$3.90

92055

RING-O,14.8X2.4

92055-0741

$3.71

92071

GROMMET

92071-1143

$6.51

92072

BAND,L=148

92072-3768

$3.92

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92153

BOLT,OIL,L=23

92153-0627

$5.48

92153A

BOLT,SOCKET,8X30

92153-1624

$3.90

92153B

BOLT,SOCKET,6X10

92153-1628

$1.78

92154

BOLT,SOCKET,5X20

92154-0829

$2.67

92161

DAMPER,HOSE CLAMP

92161-0314

$11.93

92171

CLAMP,BRAKE HOSE,RR

92171-0553

$13.60

92171A

CLAMP,BRAKE HOSE

92171-1819

$5.54

92173

CLAMP

92173-0989

$47.49

550

PIN-COTTER,2.0X15

550AA2015

$1.12
