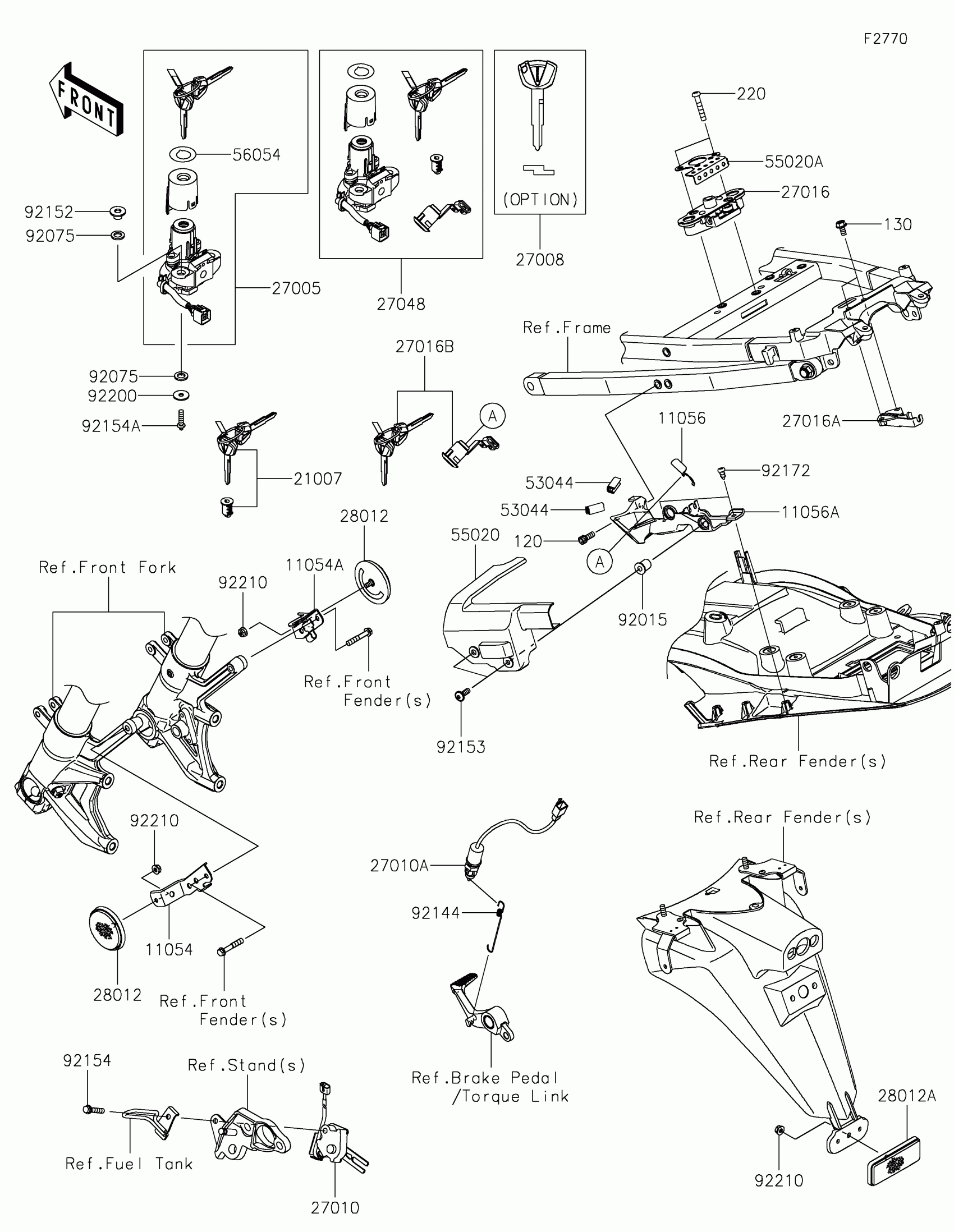

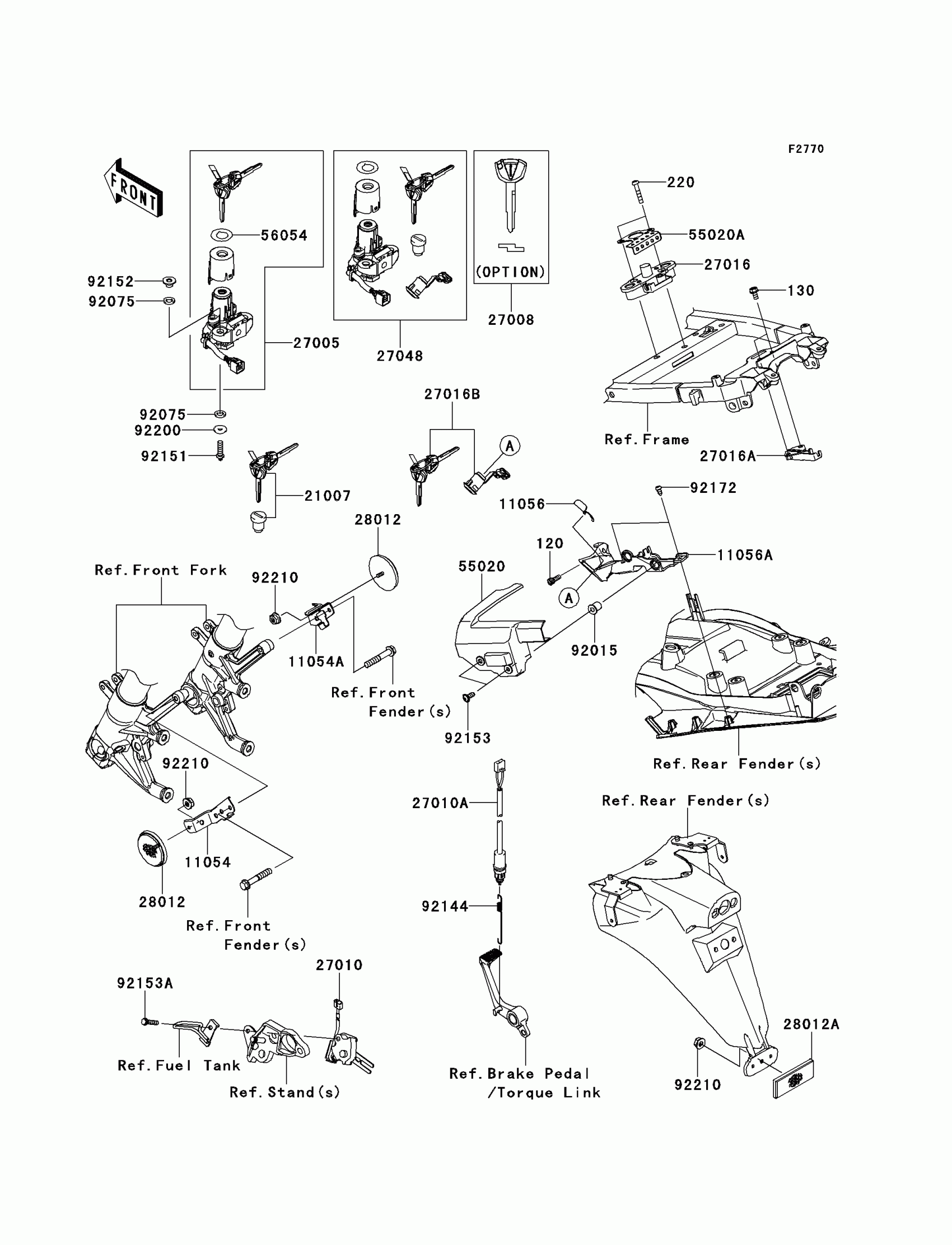

Kawasaki NINJA® ZX™-14R ABS Ignition Switch/Locks/Reflectors Diagram

Description

Price

11054

BRACKET,REFLECTOR,FR,LH

11054-0692

$16.97

11054A

BRACKET,REFLECTOR,FR,RH

11054-1227

$30.45

11056

BRACKET,CLASP

11056-0238

$6.00

11056A

BRACKET

11056-1512

$19.92

120

BOLT-SOCKET,6X16

120CA0616

$2.49

130

BOLT-FLANGED,6X12

130BA0612

$1.72

21007

ROTOR,LOCK,TANK CAP

21007-5068

$88.32

220

SCREW-PAN-CROS,6X35

220AA0635

$1.63

27005

SWITCH-ASSY-IGNITION

27005-0568

$174.88

27008

KEY-LOCK,BLANK

27008-0069

$24.19

27010

SWITCH,SIDE STAND

27010-0064

$134.36

27010A

SWITCH,REAR BRAKE

27010-1479

$30.06

27016

LOCK-ASSY,SEAT STRIKER

27016-0035

$64.16

27016A

LOCK-ASSY,SEAT STRIKER

27016-1115

$28.59

27016B

LOCK-ASSY,SEAT

27016-5374

$90.40

27048

SWITCH-ASSY

27048-5013

$401.95

28012

REFLECTOR-REFLEX

28012-0008

$26.52

28012A

REFLECTOR-REFLEX

28012-1077

$23.25

53044

TRIM,L=22

53044-0031

$3.39

55020

GUARD,CABLE

55020-0816

$15.66

55020A

GUARD,SEAT STRIKER

55020-0855

$5.60

56054

MARK,IGNITION SWITCH

56054-0969

$10.90

92015

NUT

92015-1700

$8.58

92075

DAMPER

92075-1564

$5.48

92144

SPRING,REAR BRAKE SWITCH

92144-1753

$6.41

92152

COLLAR,6.2X10.3X10

92152-1611

$8.30

92153

BOLT,6X18

92153-0478

$2.55

92154

BOLT,FLANGED,6X30

92154-1857

$2.15

92154A

BOLT,TORX,6X22

92154-1858

$3.94

92172

SCREW,TAPPING,5X12

92172-0239

$1.00

92200

WASHER,6X20X1.6

92200-0212

$3.35

92210

NUT,FLANGED,5MM

92210-0007

$2.70
