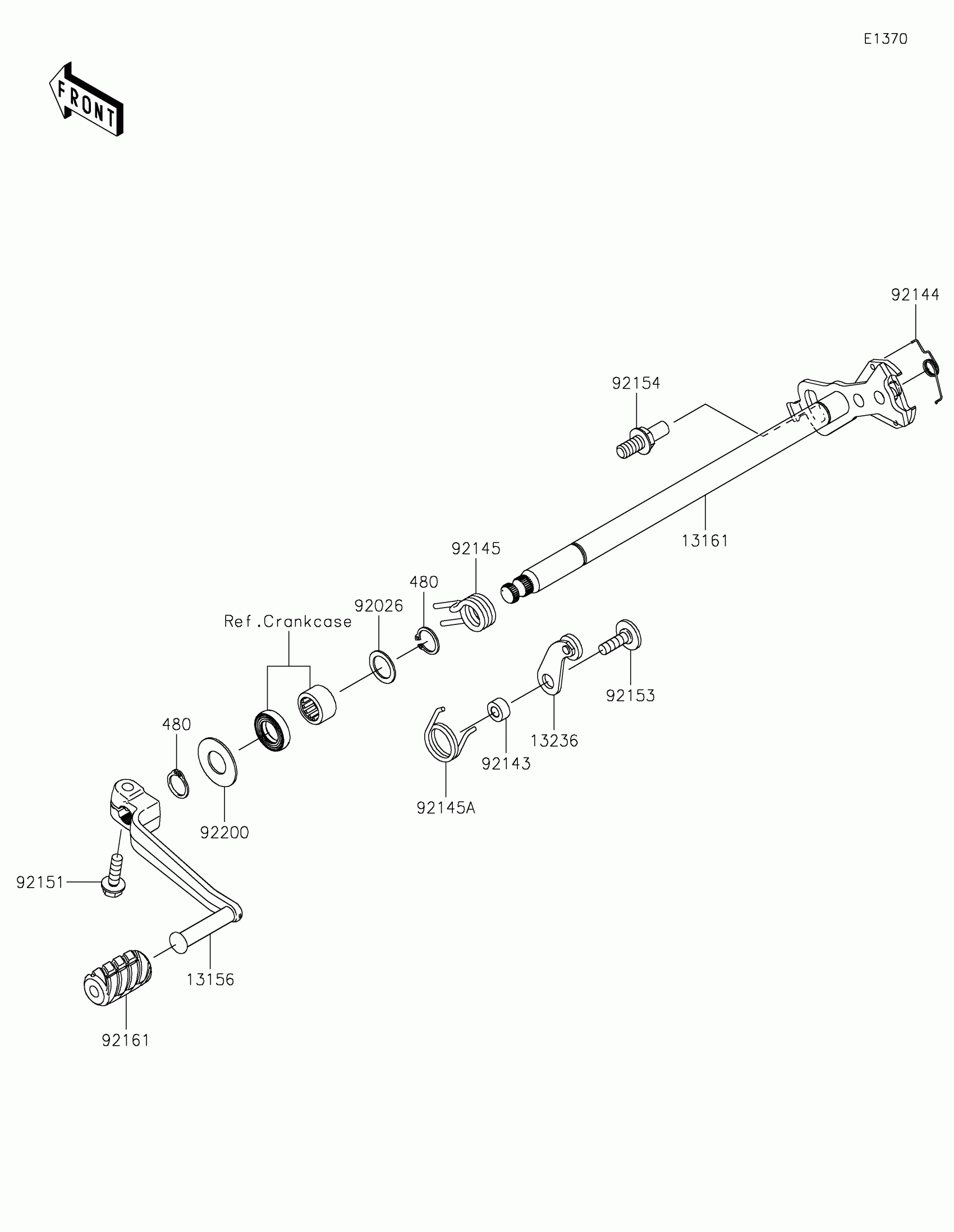

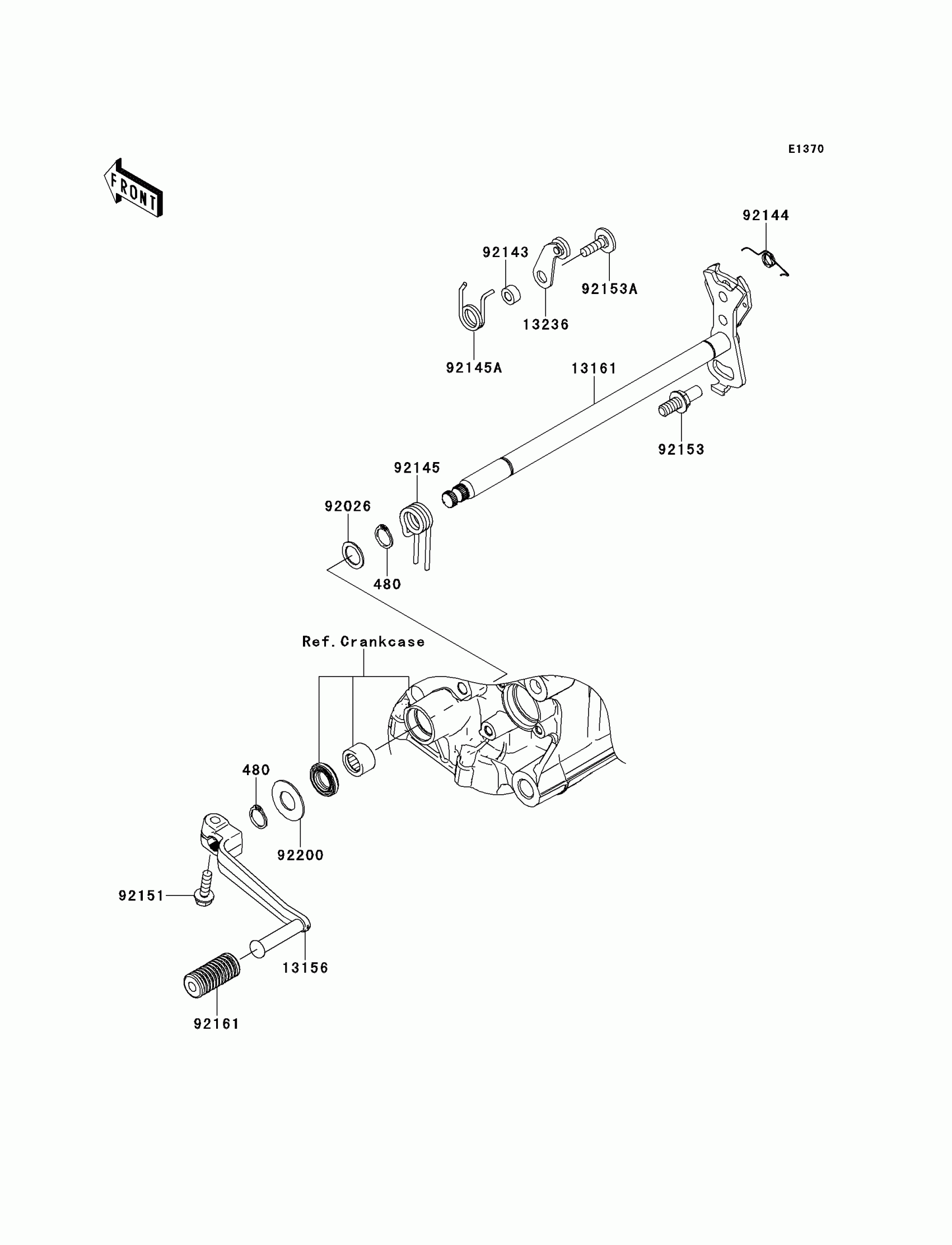

Kawasaki NINJA® ZX™-14R ABS Gear Change Mechanism Diagram

Description

Price

480

CIRCLIP-TYPE-C,14MM

480J1400

$5.00

13156

LEVER-CHANGE,PEDAL

13156-0075

$73.74

13161

LEVER-COMP-CHANGE SHAFT

13161-0567

$86.02

13236

LEVER-COMP

13236-1243

$19.66

92026

SPACER,14X20X1.0

92026-1534

$4.31

92143

COLLAR

92143-1595

$9.51

92144

SPRING

92144-1029

$7.77

92145

SPRING

92145-0336

$11.19

92145A

SPRING

92145-0404

$5.29

92151

BOLT,FLANGED,6X20

92151-1226

$2.46

92153

BOLT,RETURN SPRING

92153-0421

$9.07

92153A

BOLT,6X20

92153-1505

$7.75

92161

DAMPER,CHANGE PEDAL

92161-1300

$6.18

92200

WASHER

92200-0265

$2.61
