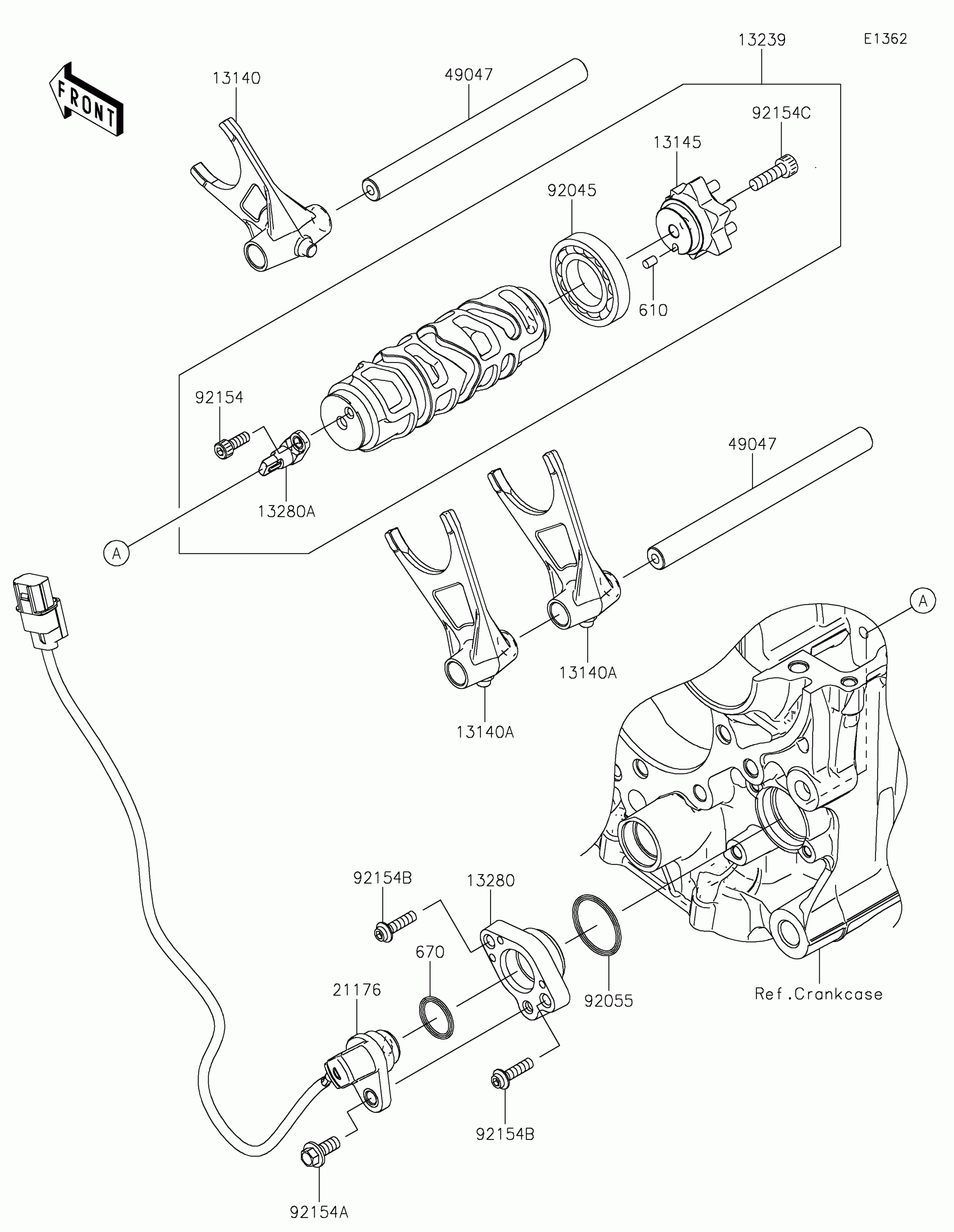

Kawasaki NINJA® ZX™-14R ABS Gear Change Drum/Shift Fork(s) Diagram

Description

Price

13140

FORK-SHIFT,INPUT

13140-0049

$104.02

13140A

FORK-SHIFT,OUTPUT

13140-0050

$104.16

13145

CAM-CHANGE DRUM

13145-0023

$58.69

13239

DRUM-ASSY-CHANGE

13239-0042

$245.62

13280

HOLDER,GEAR POSITION SENSOR

13280-0846

$29.62

13280A

HOLDER

13280-0850

$11.66

21176

SENSOR,GEAR POSITION

21176-0787

$151.78

49047

ROD-SHIFT

49047-0644

$29.16

610

ROLLER,4X6

610A0406

$4.31

670

O RING,18MM

670D2018

$1.91

92045

BEARING-BALL,16005

92045-1045

$28.25

92055

RING-O,27.7X2.4

92055-091

$6.22

92154

BOLT,SOCKET,5X14

92154-0491

$1.63

92154A

BOLT,FLANGED,6X14

92154-1797

$3.29

92154B

BOLT,SOCKET,5X20

92154-1798

$5.33

92154C

BOLT,SOCKET,6X20

92154-1837

$2.15
