Description

Price

11054

BRACKET,FUEL TANK,CNT,LH

11054-0681

$9.67

11055

BRACKET,FUEL TANK,CNT,RH

11055-0063

$11.93

11060

GASKET,FUEL GAUGE

11060-1952

$21.19

39085

PAD-TANK

39085-0054

$120.02

39156

PAD,TANK COVER,LH

39156-0780

$20.99

39156A

PAD,TANK COVER,RH

39156-0781

$20.99

39156B

PAD,TANK COVER,CNT

39156-0782

$14.76

39156C

PAD

39156-0794

$70.09

39156D

PAD,FUEL TANK

39156-0863

$15.89

51001C

TANK-COMP-FUEL,F.EBONY

51001-0752-45L

$1,438.42

51001D

TANK-COMP-FUEL,M.S.BLACK

51001-0752-660

$1,411.24

51026C

COVER TANK,FUEL,F.EBONY

51026-0008-45L

$289.64

51026D

COVER TANK,FUEL,M.S.BLACK

51026-0008-660

$265.32

51049

CAP-TANK,FUEL

51049-0715

$136.29

52005

GAUGE,FUEL

52005-0093

$210.02

55020

GUARD,FUEL TANK

55020-0551

$17.10

92015

NUT,RUBBER,6MM

92015-1692

$7.34

92022

WASHER,6.5X16X1

92022-1143

$3.92

92075

DAMPER

92075-015

$5.00

92075A

DAMPER

92075-1634

$4.69

130

BOLT-FLANGED,6X25

130BA0625

$1.20

130A

BOLT-FLANGED,6X30

130BA0630

$1.46

92075B

DAMPER,10X24X12

92075-1690

$5.00

92075C

DAMPER,9X24X14

92075-281

$6.22

92093

SEAL

92093-0583

$7.36

92093A

SEAL,FUEL TANK CAP

92093-1030

$7.77

92151

BOLT,SOCKET,6X30

92151-1605

$2.34

92152

COLLAR

92152-0048

$2.80

92152A

COLLAR

92152-0364

$11.30

92152B

COLLAR

92152-0424

$6.07

92153

BOLT,SOCKET,6X23

92153-1267

$2.80

92153A

BOLT,FLANGED,5X12

92153-1421

$1.78

92153B

BOLT,SOCKET,5X16

92153-1616

$1.34

92153C

BOLT,FLANGED,6X20

92153-1694

$2.15

92160

DAMPER

92160-1613

$3.74

92161

DAMPER

92161-0365

$5.33

92161A

DAMPER

92161-1481

$13.18

92173A

CLAMP

92173-1029

$21.48

92192B

TUBE,DRAIN

92192-0693

$20.04

92200

WASHER,6.5X20X1.6

92200-0283

$1.40

14069

BREATHER

14069-0703

$6.89

92005

FITTING

92005-0096

$10.21

92037

CLAMP,TUBE

92037-147

$7.34

702

TUBE-RUBBER

702A07240

$13.38

92171

CLAMP

92171-0573

$1.34

92171

CLAMP

92171-0573

$1.34

92173

CLAMP,PIPE

92173-0985

$4.41

92192

TUBE,BREATHER,INNER

92192-0615

$6.68

92192A

TUBE,BREATHER,UPP

92192-0648

$19.74

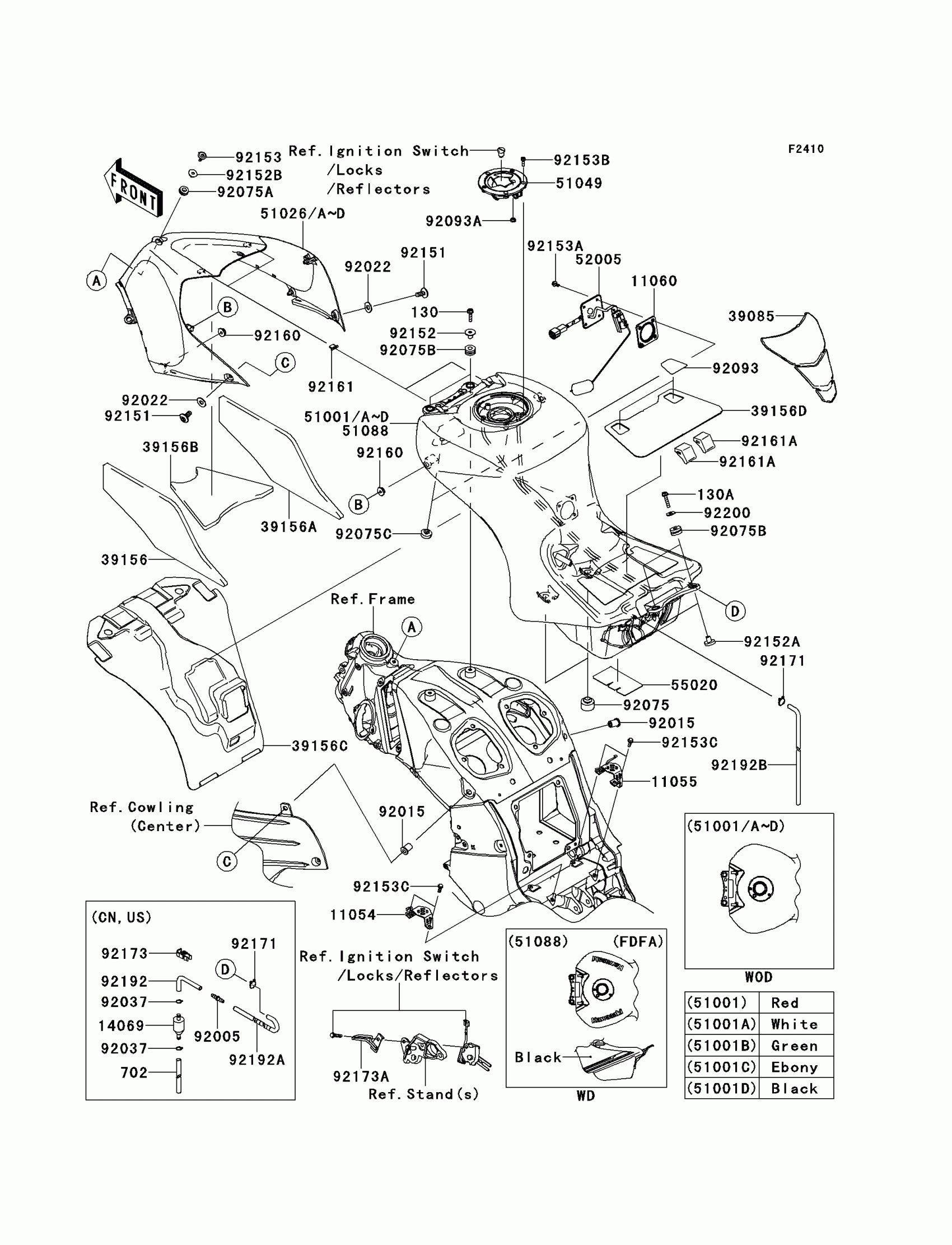

Kawasaki NINJA® ZX™-14R ABS Fuel Tank Diagram

BRACKET,FUEL TANK,CNT,LH

BRACKET,FUEL TANK,CNT,RH

GASKET,FUEL GAUGE

PAD-TANK

PAD,TANK COVER,LH

PAD,TANK COVER,RH

PAD,TANK COVER,CNT

PAD

PAD,FUEL TANK

TANK-COMP-FUEL,F.EBONY

TANK-COMP-FUEL,M.S.BLACK

COVER TANK,FUEL,F.EBONY

COVER TANK,FUEL,M.S.BLACK

CAP-TANK,FUEL

GAUGE,FUEL

GUARD,FUEL TANK

NUT,RUBBER,6MM

WASHER,6.5X16X1

DAMPER

DAMPER

BOLT-FLANGED,6X25

BOLT-FLANGED,6X30

DAMPER,10X24X12

DAMPER,9X24X14

SEAL

SEAL,FUEL TANK CAP

BOLT,SOCKET,6X30

COLLAR

COLLAR

COLLAR

BOLT,SOCKET,6X23

BOLT,FLANGED,5X12

BOLT,SOCKET,5X16

BOLT,FLANGED,6X20

DAMPER

DAMPER

DAMPER

CLAMP

TUBE,DRAIN

WASHER,6.5X20X1.6

BREATHER

FITTING

CLAMP,TUBE

TUBE-RUBBER

CLAMP

CLAMP

CLAMP,PIPE

TUBE,BREATHER,INNER

TUBE,BREATHER,UPP
