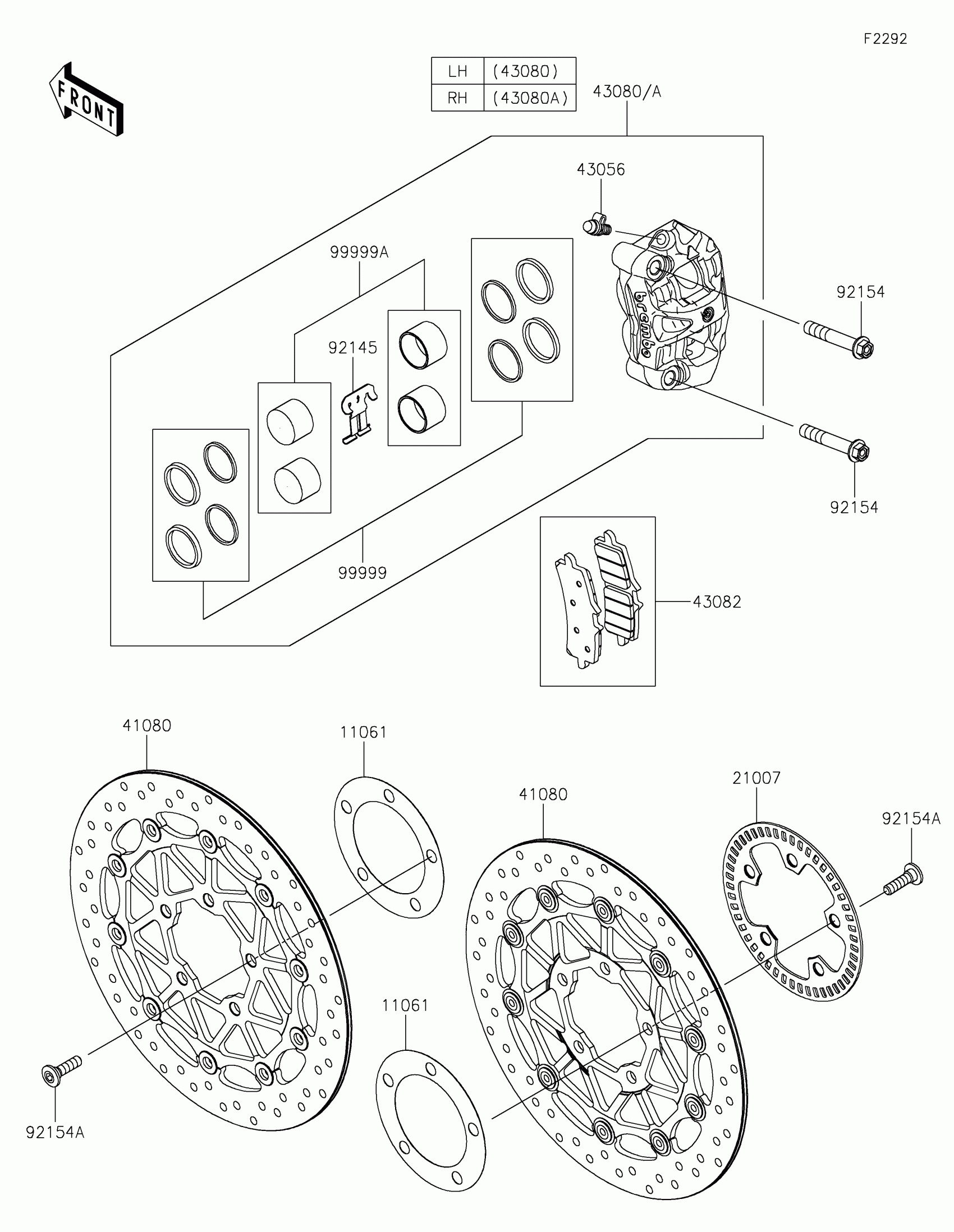

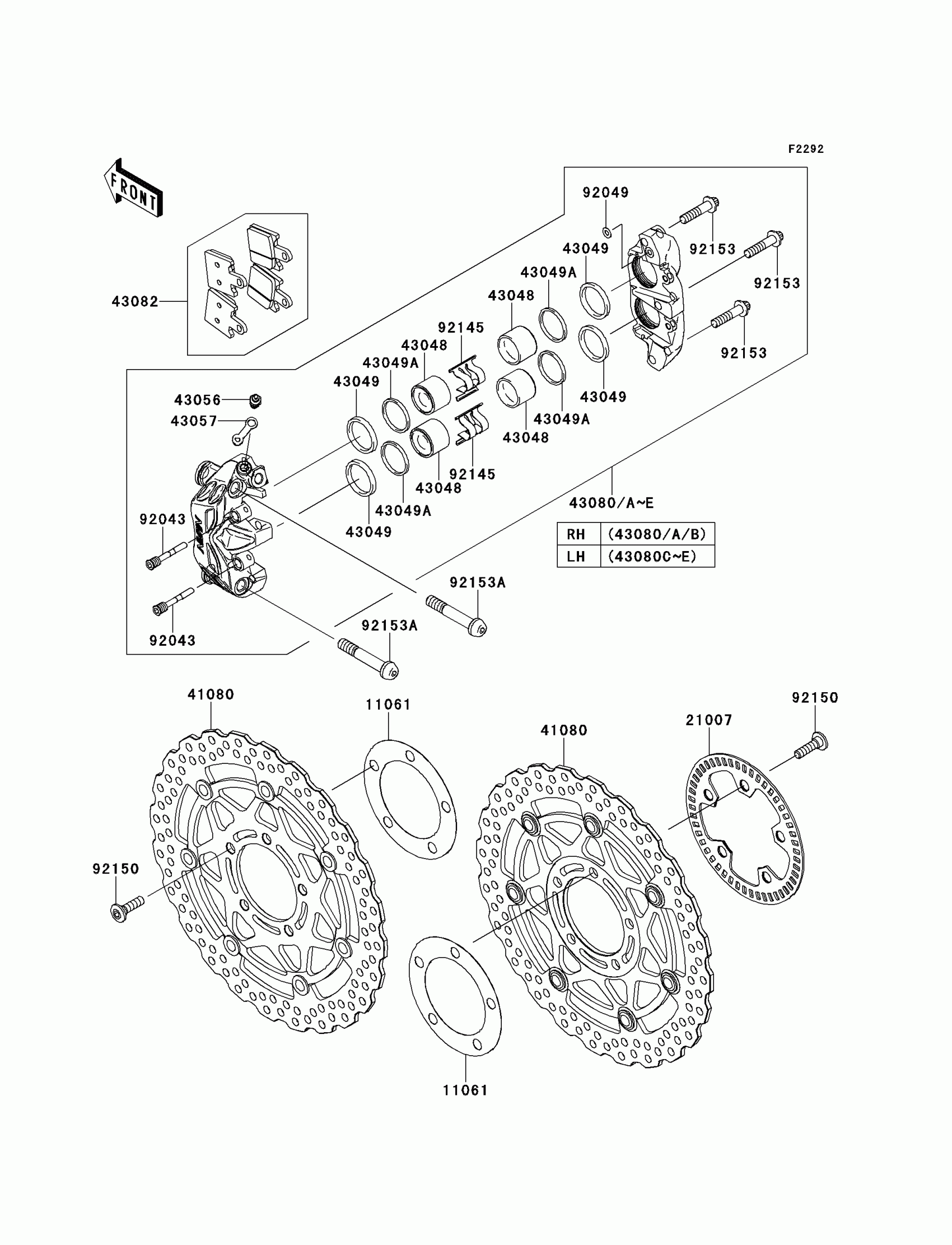

Kawasaki NINJA® ZX™-14R ABS Front Brake Diagram

Description

Price

11061

GASKET,DISC PLATE

11061-0029

$18.20

21007

ROTOR,SENSOR,FR

21007-0140

$89.65

41080

DISC,FR,HOUSING BLACK+DISC SIL

41080-0570-5C

$482.24

43048

PISTON-CALIPER

43048-0005

$38.06

43049

PACKING

43049-0006

$8.60

43049A

PACKING

43049-0007

$8.60

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0046-DJ

$383.75

43080B

CALIPER-SUB-ASSY,FR,RH,RED

43080-0046-46D

$402.13

43080C

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0047-DJ

$383.75

43080E

CALIPER-SUB-ASSY,FR,LH,RED

43080-0047-46D

$402.13

43082

PAD-ASSY-BRAKE

43082-0122

$76.95

92043

PIN,PAD

92043-0105

$10.30

92049

SEAL-OIL

92049-1448

$3.92

92145

SPRING,PAD

92145-0436

$8.60

92150

BOLT,SOCKET,8X30

92150-1771

$4.69

92153

BOLT,TORX,8X38

92153-1093

$4.18

92153A

BOLT,SOCKET,10X60

92153-1837

$13.60
