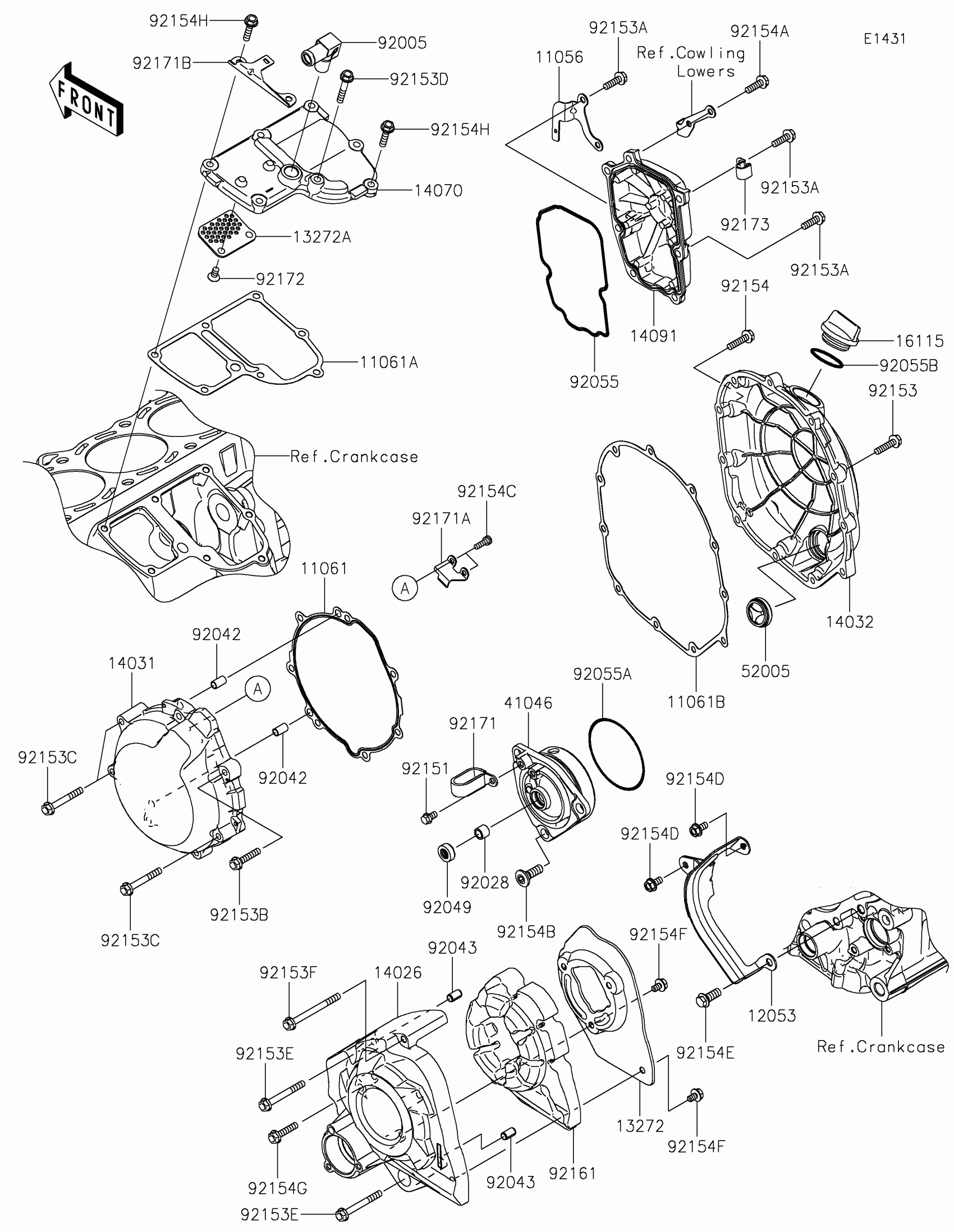

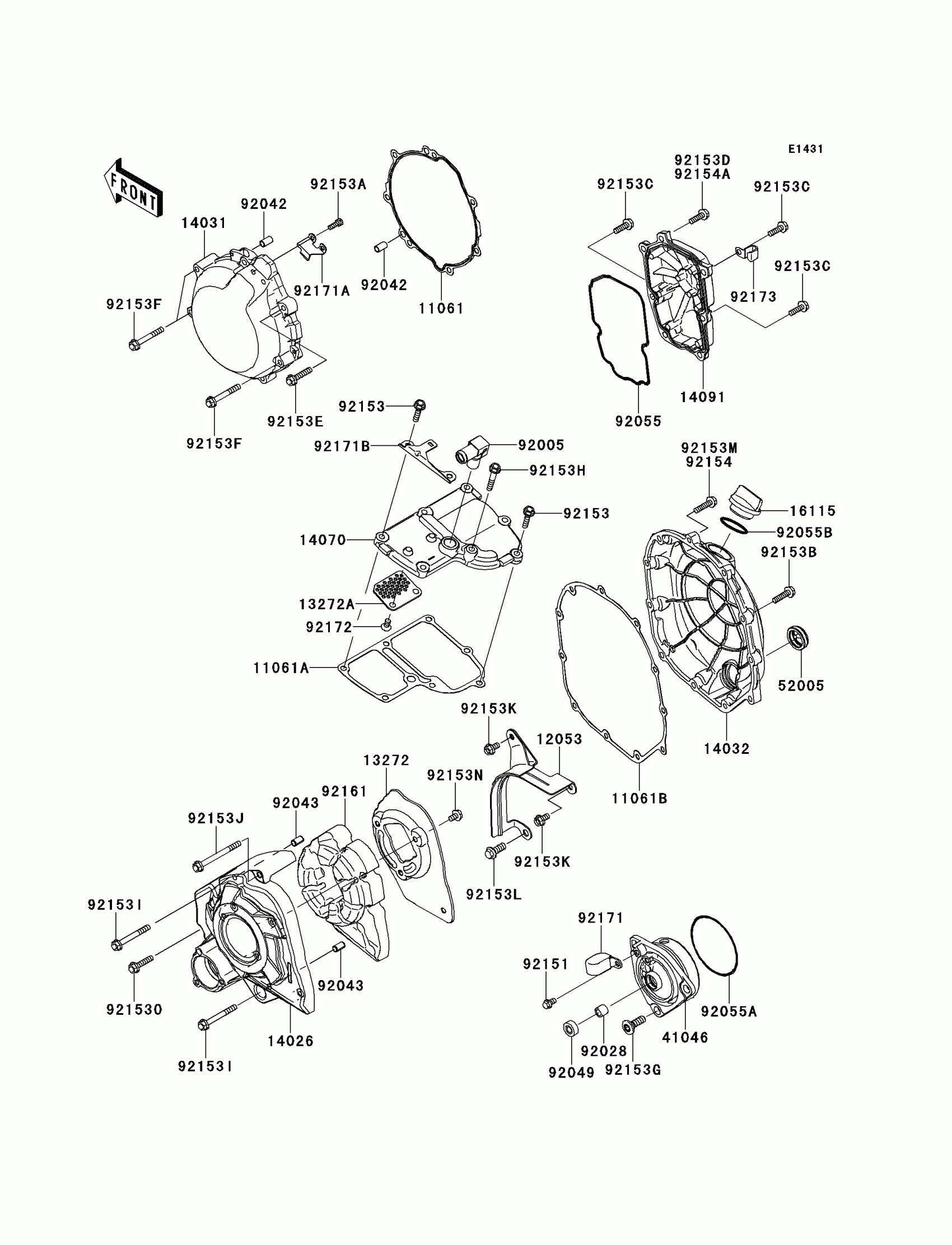

Kawasaki NINJA® ZX™-14R ABS Engine Cover(s) Diagram

#

Description
Price

11056

BRACKET,OXYGEN SENSOR

11056-7727

$9.86

11061

GASKET,GENERATOR COVER

11061-0197

$16.38

11061A

GASKET,BREATHER BODY

11061-0808

$9.09

11061B

GASKET,CLUTCH COVER

11061-0810

$22.17

12053

GUIDE-CHAIN

12053-0097

$34.51

13272

PLATE

13272-0037

$27.22

13272A

PLATE

13272-1311

$12.32

14026

COVER-CHAIN

14026-0094

$141.89

14031

COVER-GENERATOR

14031-0083

$260.77

14032

COVER-CLUTCH

14032-0570

$258.10

14070

BODY-BREATHER

14070-0061

$121.72

14091

COVER,PULSER

14091-0896

$94.32

16115

CAP-OIL FILLER

16115-1009

$14.30

41046

HOUSING-BEARING

41046-0574

$111.18

52005

GAUGE

52005-0024

$25.24

92005

FITTING

92005-0044

$37.51

92028

BUSHING,8X12X10

92028-1750

$7.27

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,6.2X8X14

92043-1263

$0.43

92049

SEAL-OIL

92049-1566

$7.65

92055

RING-O,PULSER COVER

92055-0086

$11.93

92055A

RING-O,75X2.5

92055-0087

$5.65

92055B

RING-O,31.5X2.6

92055-049

$4.31

92151

BOLT,FLANGED,6X10

92151-1233

$1.97

92153

BOLT,FLANGED,6X25

92153-1569

$1.78

92153A

BOLT,FLANGED,6X20

92153-1572

$1.78

92153B

BOLT,FLANGED,6X30

92153-1574

$2.15

92153C

BOLT,FLANGED,6X45

92153-1575

$2.15

92153D

BOLT,FLANGED,6X35

92153-1579

$2.15

92153E

BOLT,FLANGED,6X52

92153-1581

$2.15

92153F

BOLT,FLANGED,6X68

92153-1583

$4.65

92154

BOLT,FLANGED,6X25

92154-1358

$3.56

92154A

BOLT,FLANGED,6X20

92154-1359

$2.75

92154B

BOLT,SOCKET,8X25

92154-1840

$3.86

92154C

BOLT,SOCKET,5X14

92154-1841

$1.34

92154D

BOLT,FLANGED,6X12

92154-1842

$1.78

92154E

BOLT,FLANGED-SMALL,8X20

92154-1843

$3.90

92154F

BOLT,FLANGED,6X10

92154-1844

$1.78

92154G

BOLT,FLANGED,6X28

92154-1845

$2.15

92154H

BOLT,6X25

92154-1847

$2.80

92161

DAMPER,CHAIN COVER

92161-0837

$127.20

92171

CLAMP

92171-0594

$7.68

92171A

CLAMP

92171-0768

$3.90

92171B

CLAMP

92171-0769

$8.68

92172

SCREW-CSK-CROS,6X12

92172-0747

$0.85

92173

CLAMP

92173-0982

$5.65
