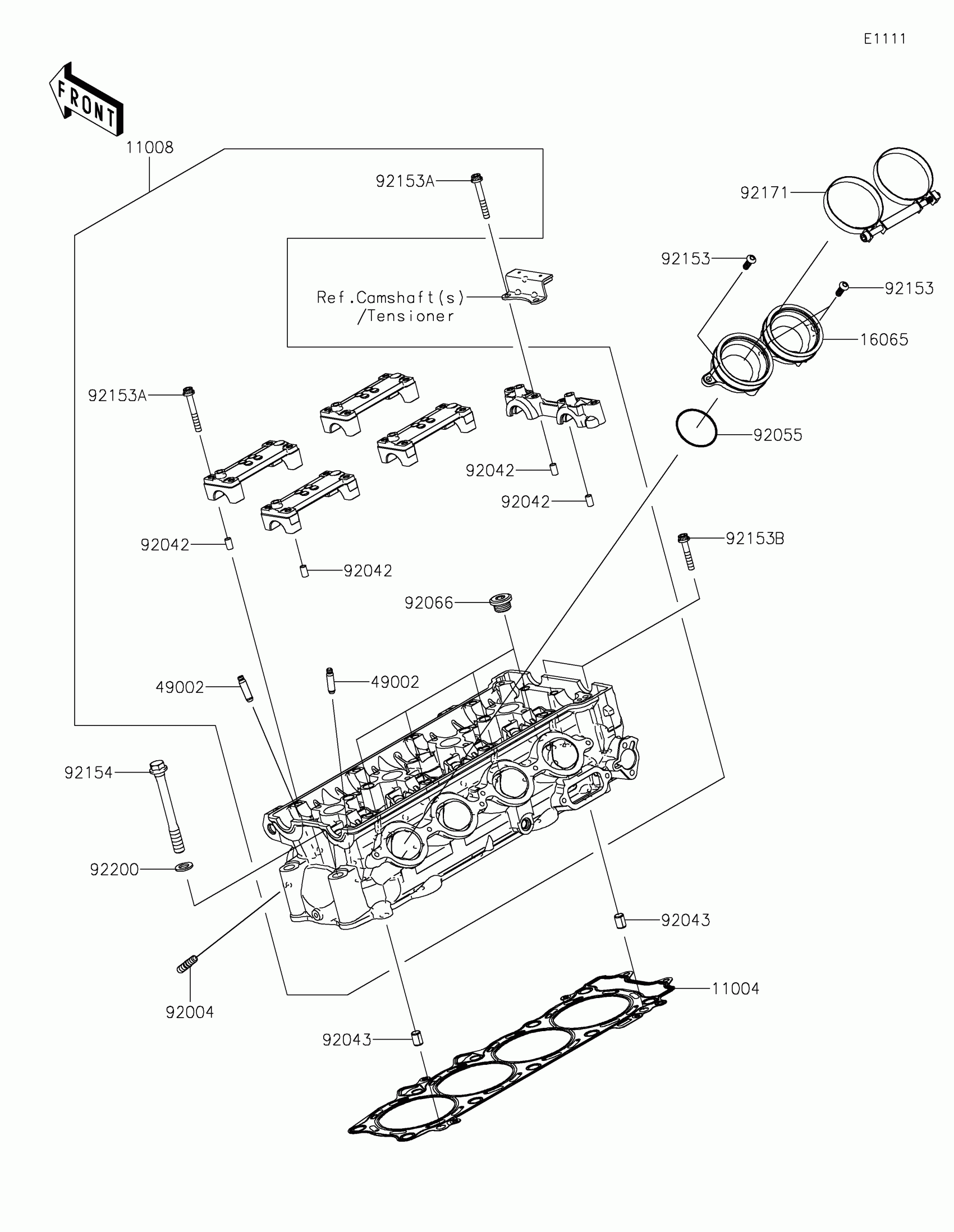

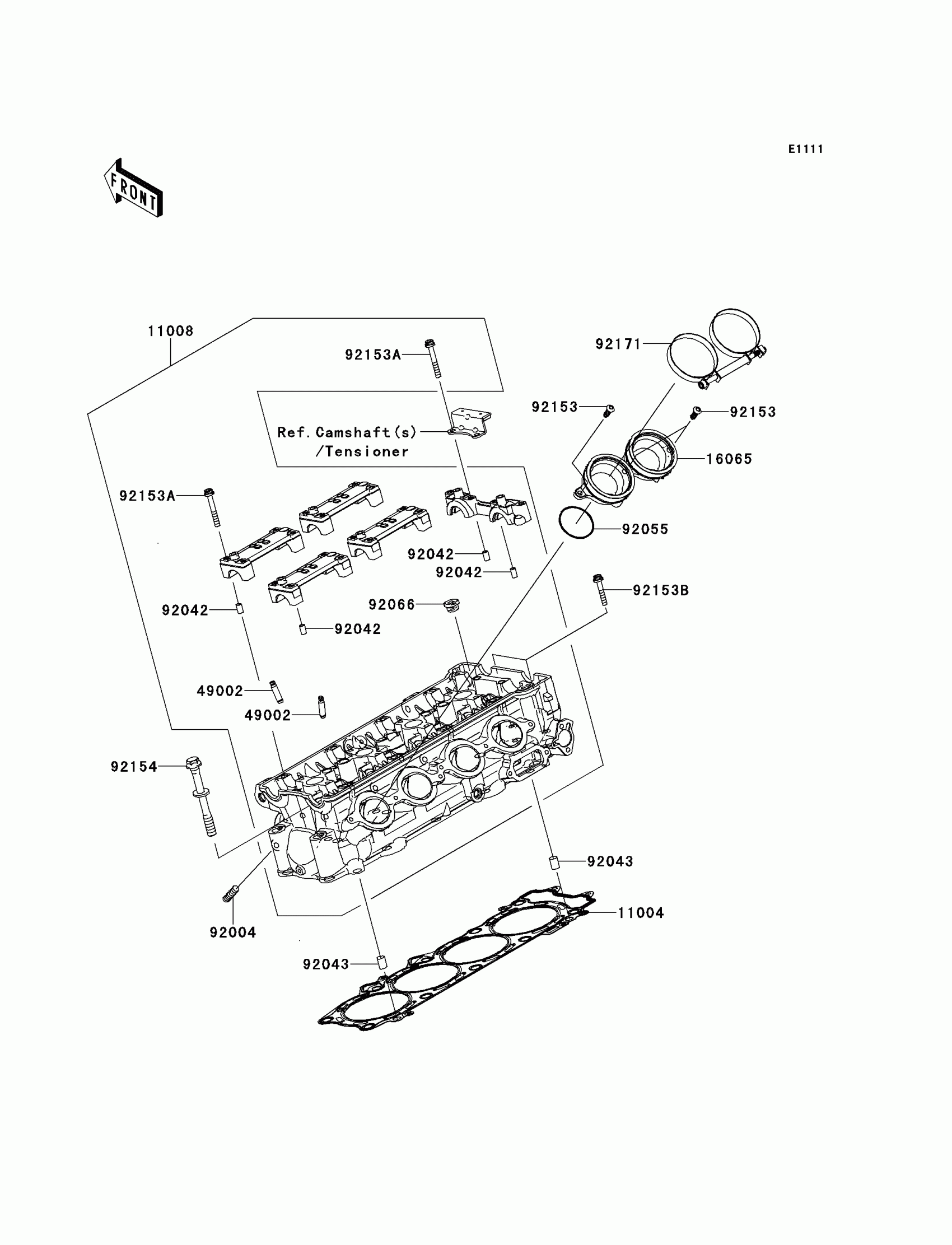

Kawasaki NINJA® ZX™-14R ABS Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0726

$146.57

11008

HEAD-COMP-CYLINDER

11008-0720

Unavailable

16065

HOLDER-CARBURETOR

16065-0117

$59.51

49002

GUIDE-VALVE

49002-0014

$36.67

92004

STUD

92004-0050

$3.62

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,8.2X10X14

92043-1264

$0.64

92055

RING-O,47X1.9

92055-1600

$9.19

92066

PLUG,18X10

92066-0016

$12.90

92153

BOLT,TORX,6X18

92153-0454

$2.12

92153A

BOLT,SOCKET,6X45

92153-0656

$2.55

92153B

BOLT,SOCKET,6X35

92153-1556

$3.90

92154

BOLT,11X98

92154-0256

$17.42

92171

CLAMP

92171-1892

$30.15
