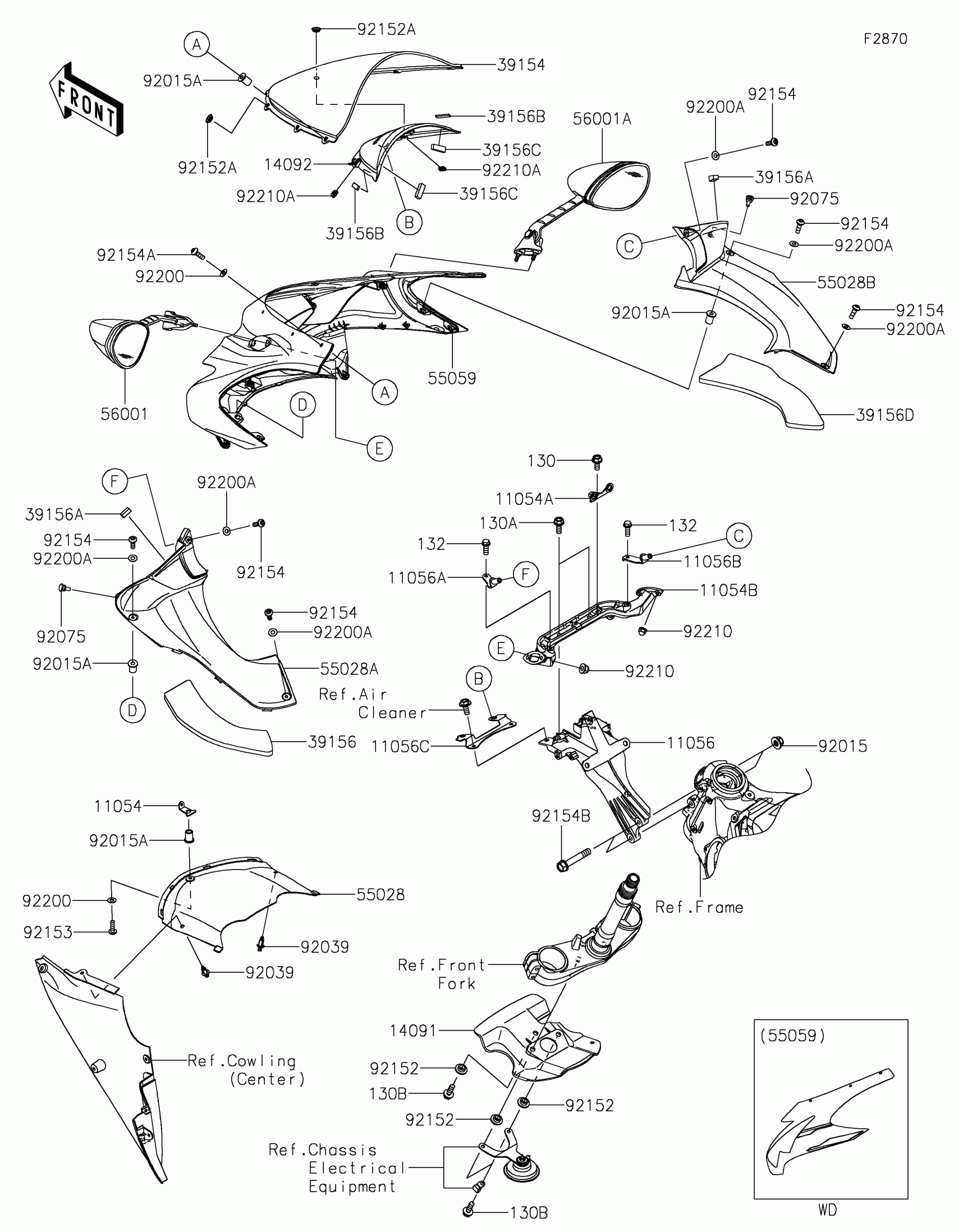

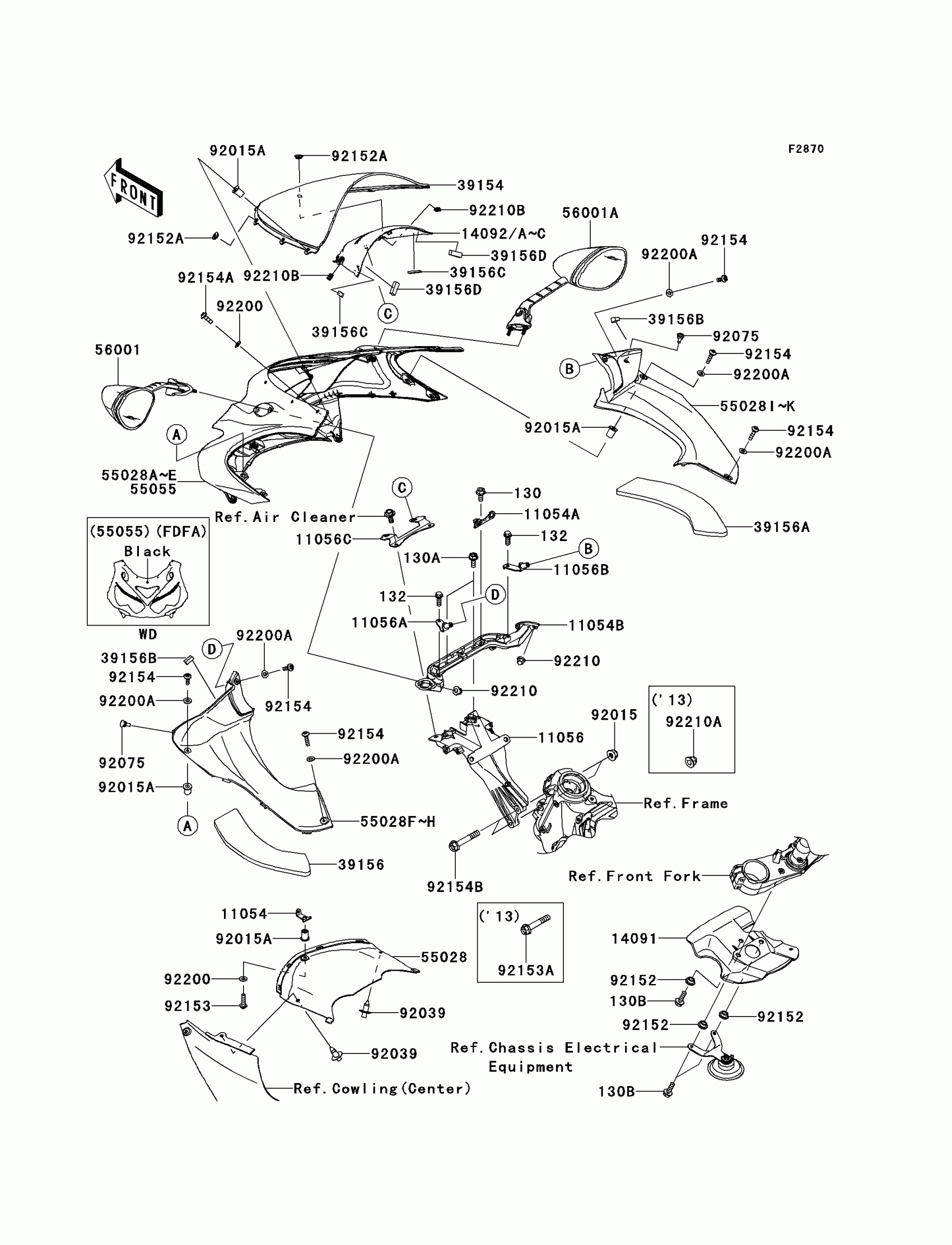

Kawasaki NINJA® ZX™-14R ABS Cowling(Upper) Diagram

#

Description
Price

11054

BRACKET,UPP COWLING

11054-0180

$5.65

11054A

BRACKET,DOWN SENSOR

11054-0239

$27.22

11054B

BRACKET,MIRROR

11054-1307

$136.13

11056

BRACKET,METER

11056-1544

$168.37

11056A

BRACKET,INNER COWLING,LH

11056-2211

$21.20

11056B

BRACKET,INNER COWLING,RH

11056-2212

$21.20

11056C

BRACKET

11056-2273

$10.60

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,6X16

130BA0616

$1.20

130B

BOLT-FLANGED,6X18

130BA0618

$1.54

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

14091

COVER,RADIATOR

14091-0624

$41.06

14092

COVER,METER,F.BLACK

14092-0985-6Z

$90.96

39154

WINDSHIELD

39154-0014

$175.14

39156

PAD,INNER COWLING,LH

39156-0777

$11.66

39156A

PAD

39156-0876

$1.93

39156B

PAD,8X30X3

39156-0930

$1.96

39156C

PAD,8X30X10

39156-0931

$1.96

39156D

PAD,INNER COWLING,RH

39156-1998

$11.66

55028

COWLING,FR,CNT

55028-0095

$52.36

55028A

COWLING,INNER,LH,F.BLACK

55028-0622-6Z

$80.77

55028B

COWLING,INNER,RH,F.BLACK

55028-0623-6Z

$80.77

55059

COWLING,UPP,M.D.BLACK+GRY

55059-5250-68E

$867.77

56001

MIRROR-ASSY,LH

56001-0397

$220.02

56001A

MIRROR-ASSY,RH

56001-0398

$220.02

92015

NUT,8MM

92015-1432

$6.57

92015A

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0023

$2.97

92075

DAMPER,6X10X15

92075-1808

$1.39

92152

COLLAR,6.5X10X5.6

92152-0445

$4.92

92152A

COLLAR,5.2X9.9X3.7

92152-1690

$4.10

92153

BOLT,SOCKET,5X16

92153-1244

$2.41

92154

BOLT,SOCKET,5X16

92154-0026

$2.55

92154A

BOLT,SOCKET,5X16

92154-0209

$2.75

92154B

BOLT,FLANGED,8X48

92154-1296

$2.61

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86

92200A

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.59

92210

NUT,CAP,6MM

92210-0322

$1.34

92210A

NUT

92210-0571

$3.52
