Description

Price

11056

BRACKET,SIDE COWLING,LH

11056-1343

$27.80

11056A

BRACKET,SIDE COWLING,RH

11056-1344

$27.80

11056B

BRACKET,LWR COWLING,LH

11056-1366

$5.65

11056C

BRACKET,LWR COWLING,RH

11056-1367

$5.65

14092

COVER,SIDE COWLING,LH

14092-0861

$42.12

14092A

COVER,SIDE COWLING,RH

14092-0986

$25.44

36001

COVER-SIDE,LH,EBONY/RED

36001-0568-J3

$292.38

36001C

COVER-SIDE,LH,GREEN/BLACK

36001-0568-45S

$274.55

36001D

COVER-SIDE,LH,ORANGE/BLACK

36001-0568-46P

$292.38

36001E

COVER-SIDE,RH,EBONY/RED

36001-0569-J3

$292.38

36001H

COVER-SIDE,RH,GREEN/BLACK

36001-0569-45S

$274.55

36001I

COVER-SIDE,RH,ORANGE/BLACK

36001-0569-46P

$292.38

39156

PAD,SIDE COWLING,LH

39156-0783

$20.44

39156A

PAD,SIDE COWLING,RH

39156-0784

$20.44

39156B

PAD,SIDE COWLING,RH,LWR

39156-0785

$7.51

39156C

PAD,SIDE COVER,LH

39156-0877

$20.99

39156D

PAD,SIDE COVER,RH

39156-0878

$20.99

39156E

PAD

39156-0911

$5.29

55028

COWLING,FR,LH

55028-0383

$80.77

55028G

COWLING,FR,RH

55028-0457

$92.44

55028H

COWLING,SIDE,LH,F.EBONY

55028-0510-45L

$465.43

55028I

COWLING,SIDE,LH,M.S.BLACK

55028-0510-660

$464.81

55028J

COWLING,SIDE,RH,F.EBONY

55028-0511-45L

$463.83

55028K

COWLING,SIDE,RH,M.S.BLACK

55028-0511-660

$463.20

92015

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,6.5X16X1

92022-1143

$3.92

92022A

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92039

RIVET

92039-0051

$4.65

92039A

RIVET

92039-0060

$3.39

92071

GROMMET

92071-056

$4.26

92075

DAMPER,6X16X7

92075-1011

$7.33

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,5X10

92154-0211

$2.12

92154B

BOLT,SOCKET,5X20

92154-0829

$2.67

92172

SCREW,TAPPING,5X16

92172-0238

$1.00

92172A

SCREW,TAPPING,5X10

92172-0262

$1.34

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86

92210

NUT

92210-0571

$3.52

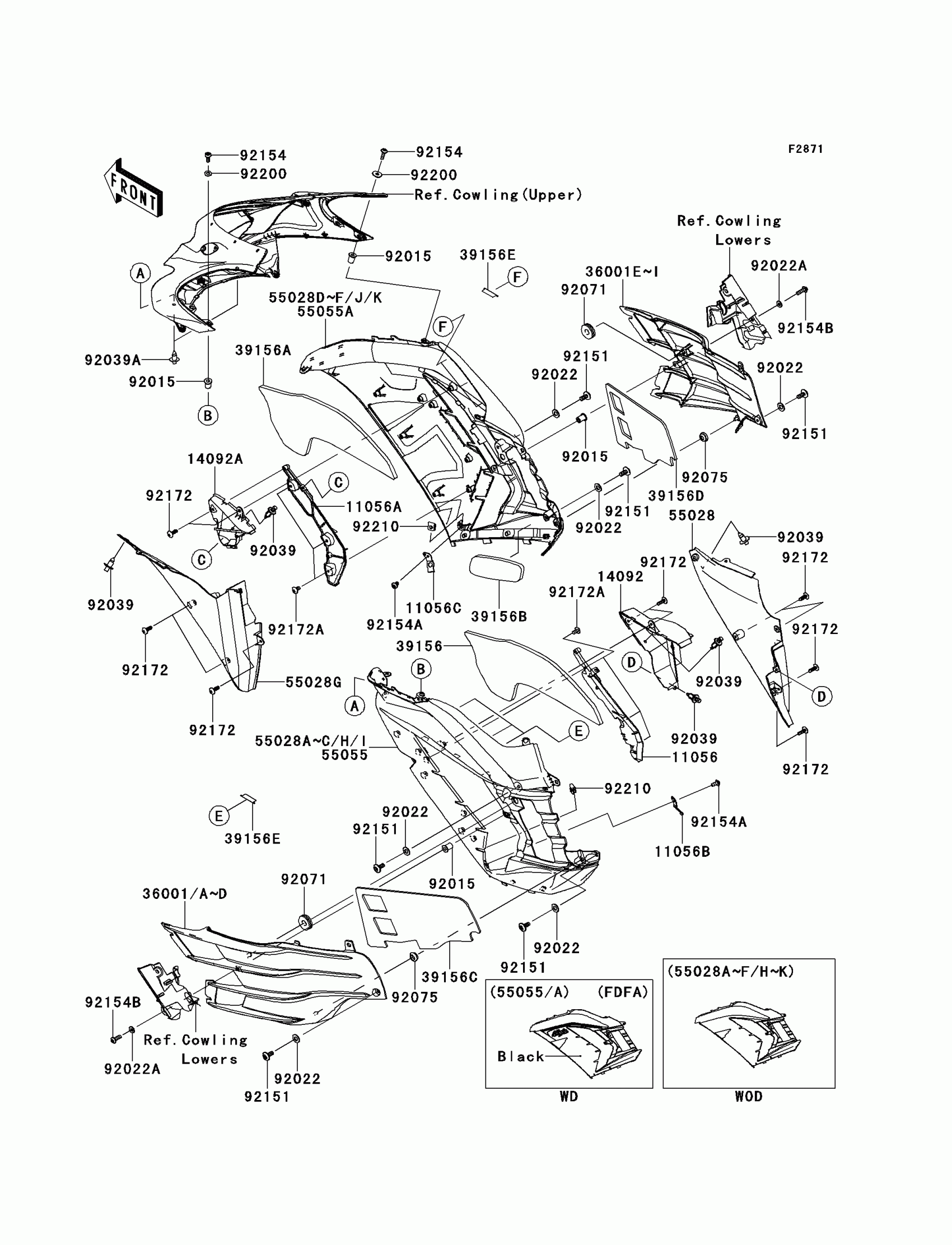

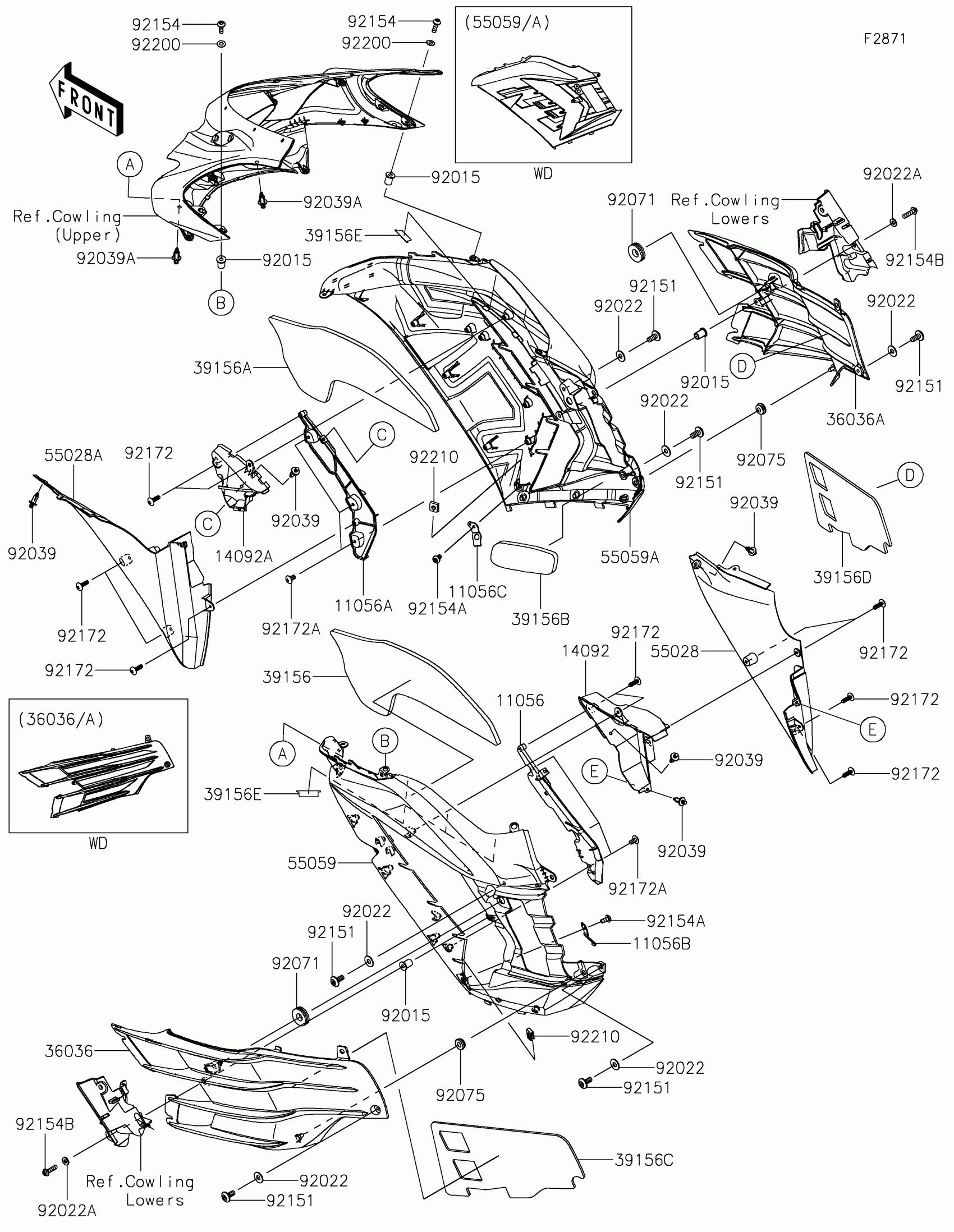

Kawasaki NINJA® ZX™-14R ABS Cowling(Center) Diagram

BRACKET,SIDE COWLING,LH

BRACKET,SIDE COWLING,RH

BRACKET,LWR COWLING,LH

BRACKET,LWR COWLING,RH

COVER,SIDE COWLING,LH

COVER,SIDE COWLING,RH

COVER-SIDE,LH,EBONY/RED

COVER-SIDE,LH,GREEN/BLACK

COVER-SIDE,LH,ORANGE/BLACK

COVER-SIDE,RH,EBONY/RED

COVER-SIDE,RH,GREEN/BLACK

COVER-SIDE,RH,ORANGE/BLACK

PAD,SIDE COWLING,LH

PAD,SIDE COWLING,RH

PAD,SIDE COWLING,RH,LWR

PAD,SIDE COVER,LH

PAD,SIDE COVER,RH

PAD

COWLING,FR,LH

COWLING,FR,RH

COWLING,SIDE,LH,F.EBONY

COWLING,SIDE,LH,M.S.BLACK

COWLING,SIDE,RH,F.EBONY

COWLING,SIDE,RH,M.S.BLACK

NUT,WELL,5MM

WASHER,6.5X16X1

WASHER,NYLON,5.3X11.5X1.5

RIVET

RIVET

GROMMET

DAMPER,6X16X7

BOLT,SOCKET,6X14

BOLT,SOCKET,5X16

BOLT,SOCKET,5X10

BOLT,SOCKET,5X20

SCREW,TAPPING,5X16

SCREW,TAPPING,5X10

WASHER,NYLONE,5.3X11.5X0.5

NUT
