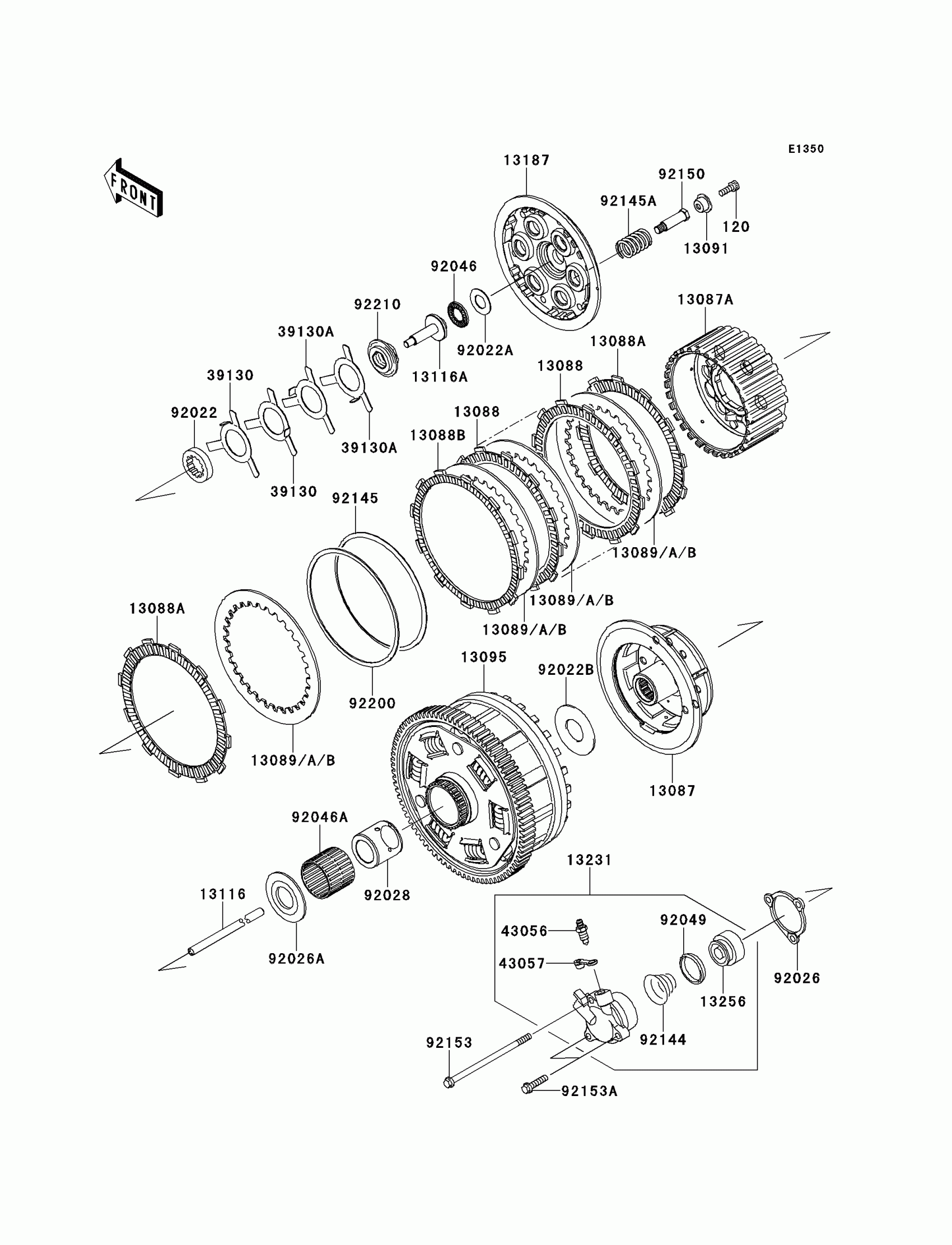

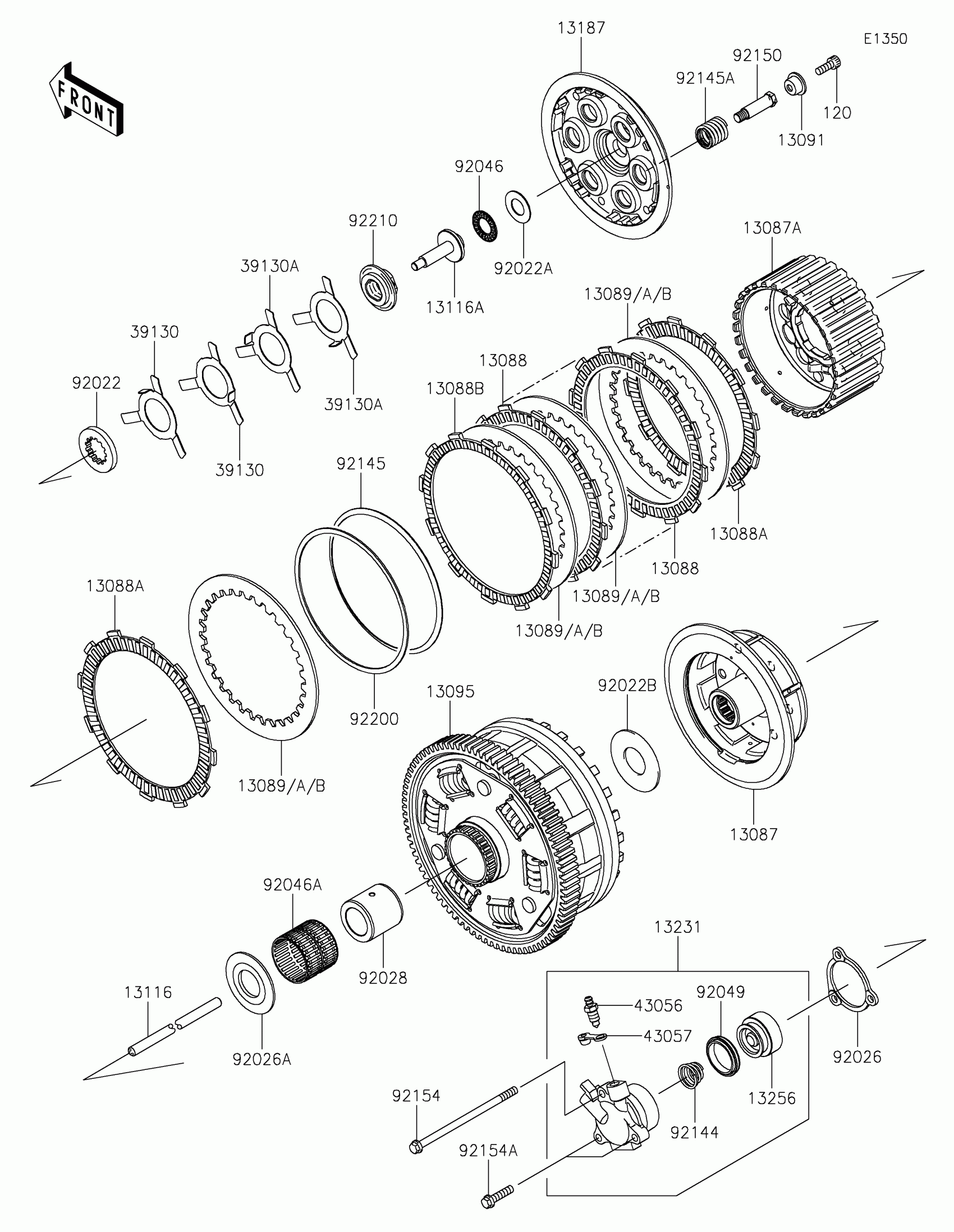

Kawasaki NINJA® ZX™-14R ABS Clutch Diagram

#

Description
Price

120

BOLT-SOCKET,6X16

120Q0616

Unavailable

13087

HUB-CLUTCH

13087-0556

$165.44

13087A

HUB-CLUTCH

13087-0560

$239.52

13088

PLATE-FRICTION

13088-0030

$18.84

13088A

PLATE-FRICTION

13088-0031

$18.84

13088B

PLATE-FRICTION

13088-0032

$18.84

13089

PLATE-CLUTCH,T=2.6

13089-0018

$15.76

13089A

PLATE-CLUTCH,T=2.3

13089-0019

Unavailable

13089B

PLATE-CLUTCH,T=2.9

13089-0020

Unavailable

13091

HOLDER,CLUTCH SPRING

13091-1840

$4.65

13095

HOUSING-COMP-CLUTCH

13095-0564

$645.72

13116

ROD-PUSH

13116-0022

$34.21

13116A

ROD-PUSH,CLUTCH

13116-0040

$40.11

13187

PLATE-CLUTCH OPERATING

13187-0012

$80.45

13231

RELEASE-ASSY-CLUTCH

13231-0002

$119.33

13256

PISTON

13256-0004

$55.25

39130

SPRING-LEAF

39130-1078

$9.89

39130A

SPRING-LEAF

39130-1079

$9.89

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

92022

WASHER,TOOTHED,25X40X5

92022-1114

$14.90

92022A

WASHER,15.1X29X1.0

92022-1463

$5.00

92022B

WASHER,25.3X56X2.0

92022-1857

$14.23

92026

SPACER,CLUTCH RELEASE

92026-1263

$16.69

92026A

SPACER

92026-1497

$11.28

92028

BUSHING

92028-1934

$42.41

92046

BEARING-NEEDLE,AXK1102

92046-1052

$14.47

92046A

BEARING-NEEDLE

92046-1267

$48.46

92049

SEAL-OIL

92049-0086

$10.30

92144

SPRING,CLUTCH RELEASE

92144-1084

$8.51

92145

SPRING,JUDDER

92145-0369

$22.48

92145A

SPRING,15X2.7

92145-0440

$11.82

92150

BOLT,CLUTCH

92150-1477

$8.10

92153

BOLT,FLANGED-SMALL,6X115

92153-1564

$3.90

92153A

BOLT,FLANGED-SMALL,6X25

92153-1565

$2.15

92200

WASHER,124.3X133X1.6

92200-0830

$10.90

92210

NUT

92210-0152

$10.11
