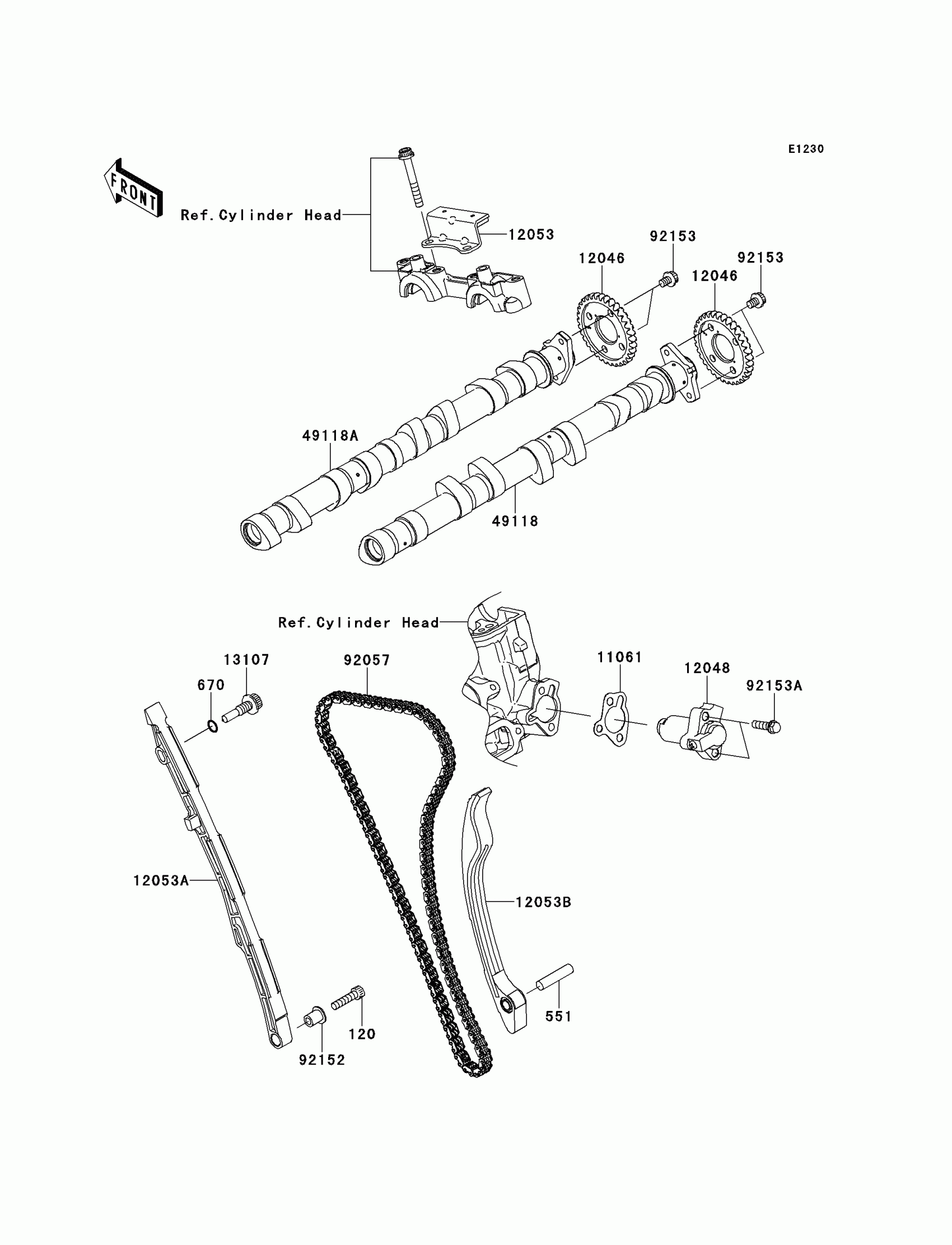

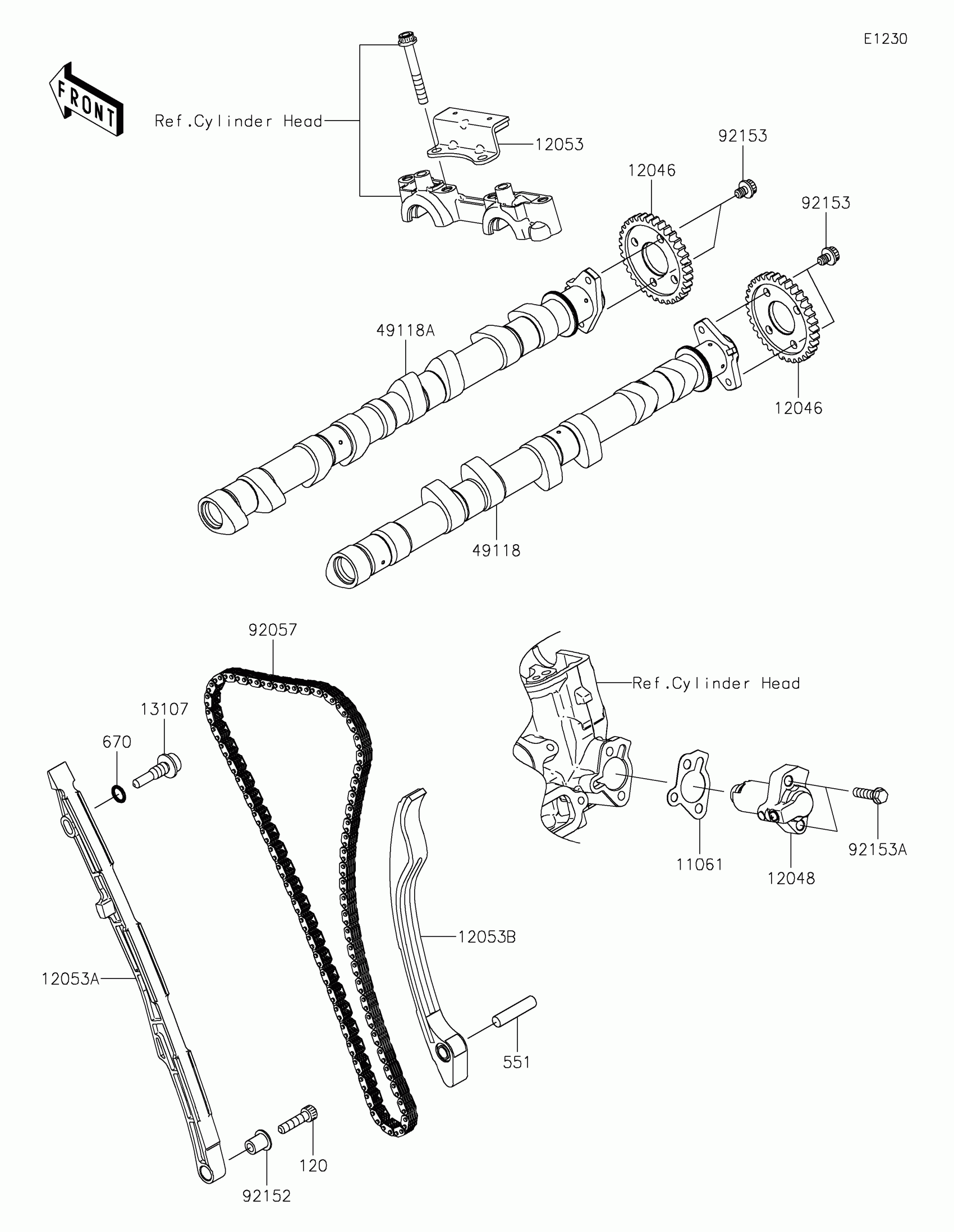

Kawasaki NINJA® ZX™-14R ABS Camshaft(s)/Tensioner Diagram

Description

Price

120

BOLT-SOCKET,6X25

120CA0625

$2.06

551

PIN-DOWEL

551A0835

$4.69

670

O RING,9MM

670D1509

$4.69

11061

GASKET,TENSIONER

11061-0796

$2.64

12046

SPROCKET,34T

12046-0570

$81.52

12048

TENSIONER-ASSY

12048-0083

$185.93

12053

GUIDE-CHAIN,UPP

12053-0067

$20.04

12053A

GUIDE-CHAIN,FR

12053-0182

$59.26

12053B

GUIDE-CHAIN,RR

12053-0183

$78.55

13107

SHAFT,CHAIN GUIDE

13107-0157

$10.65

49118

CAMSHAFT-COMP,INTAKE

49118-0739

$689.69

49118A

CAMSHAFT-COMP,EXHAUST

49118-0740

$689.69

92057

CHAIN,98XRH2015-132M

92057-0576

$110.12

92152

COLLAR

92152-0413

$8.68

92153

BOLT,FLANGED,6X8

92153-0455

$2.55

92153A

BOLT,FLANGED-SMALL,6X22

92153-1560

$2.15
