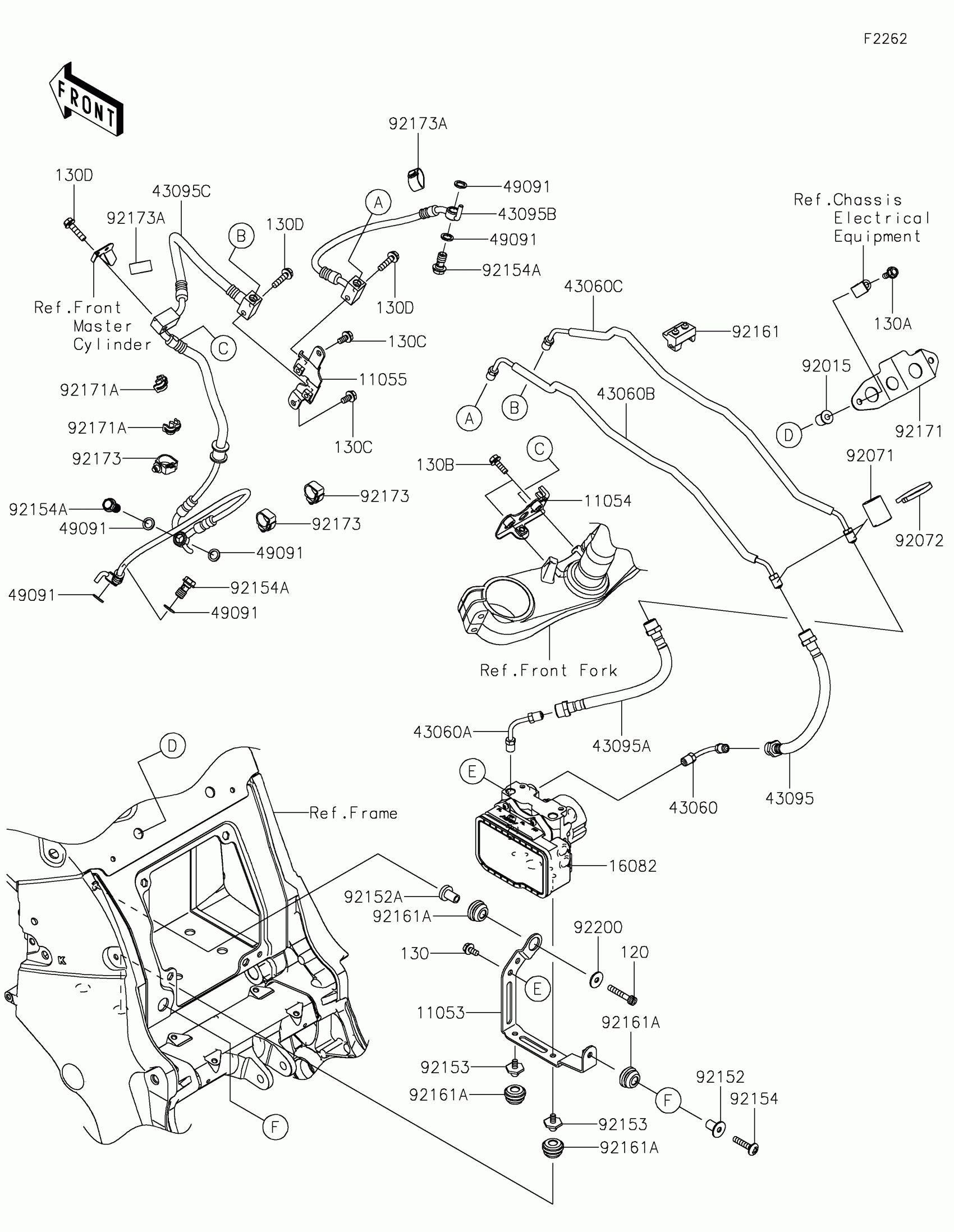

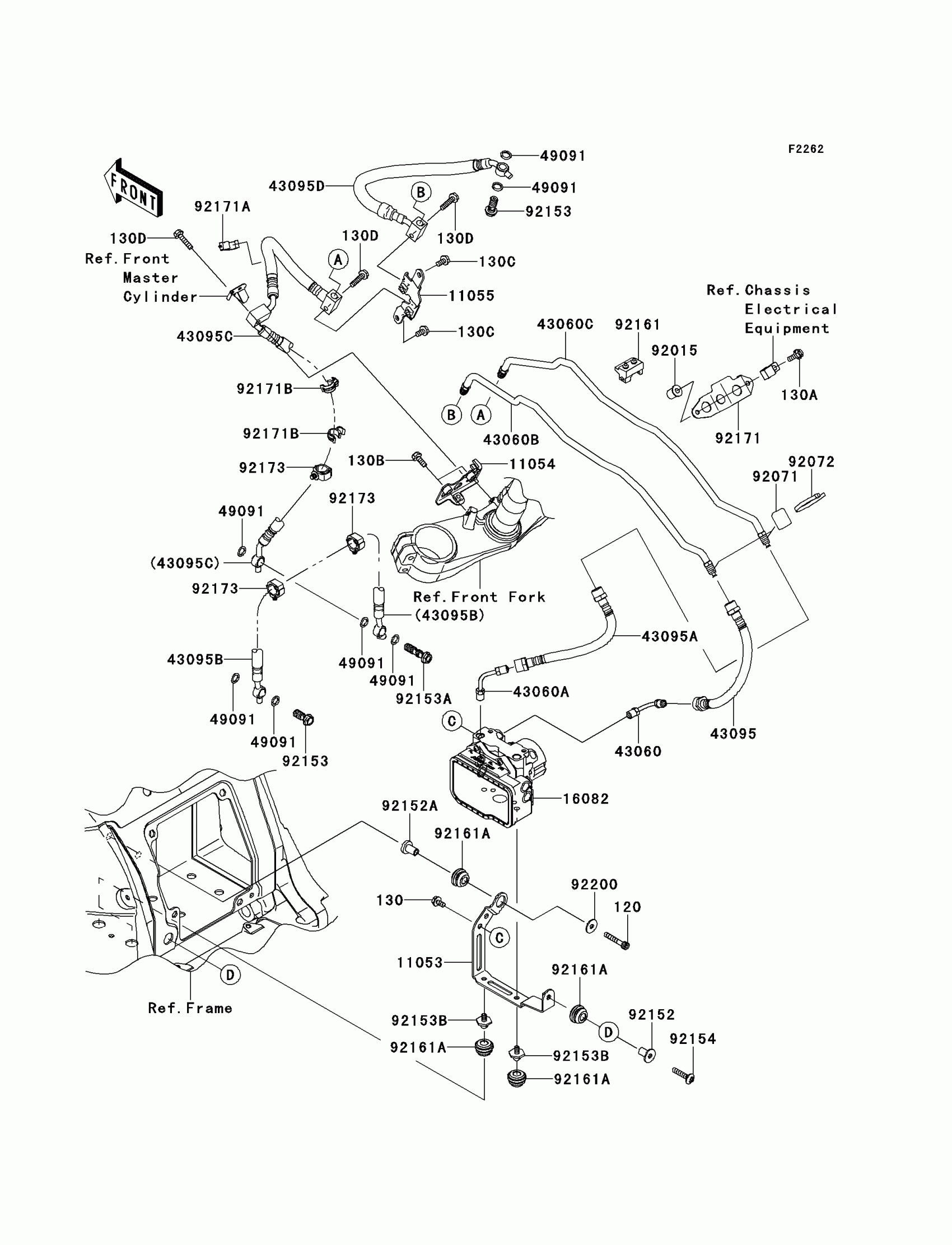

Kawasaki NINJA® ZX™-14R ABS Brake Piping Diagram

#

Description
Price

120

BOLT-SOCKET,6X35

120CA0635

$2.06

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X16

130BA0616

$1.20

130B

BOLT-FLANGED,6X18

130BA0618

$1.54

130C

BOLT-FLANGED,6X12

130BB0612

$2.34

130D

BOLT-FLANGED,6X25

130BB0625

$2.80

11053

BRACKET,ABS UNIT

11053-1949

$22.01

11054

BRACKET,JOINT

11054-0029

$28.66

11055

BRACKET,JOINT

11055-0588

$13.60

16082

PUMP-ASSY-OIL,ABS

16082-0707

$1,629.06

43060

PIPE-BRAKE,HU-M/CYLINDER

43060-0014

$21.82

43060A

PIPE-BRAKE,HU-FR CALIPER

43060-0015

$21.82

43060B

PIPE-BRAKE,HU-FR M/CYLINDER

43060-0059

$66.06

43060C

PIPE-BRAKE,HU-FR CALIPER

43060-0060

$66.06

43095

HOSE-BRAKE,FR M/CYL.-HU

43095-0607

$86.11

43095A

HOSE-BRAKE,HU-FR CALIPER

43095-0608

$86.11

43095B

HOSE-BRAKE,FR CALIPER,LH-RH

43095-0611

$90.11

43095C

HOSE-BRAKE,FR CALIPER,RH

43095-0678

$128.21

43095D

HOSE-BRAKE,FR M/CYLINDER

43095-0717

$101.17

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92015

NUT

92015-1700

$8.58

92071

GROMMET

92071-1143

$6.51

92072

BAND,L=148

92072-3768

$3.92

92152

COLLAR

92152-0346

$5.65

92152A

COLLAR

92152-0347

$11.93

92153

BOLT,OIL,L=23

92153-0627

$5.48

92153A

BOLT,OIL,L=37

92153-0628

$11.83

92153B

BOLT,6X10

92153-1381

$22.01

92154

BOLT,SOCKET,6X30

92154-0435

$1.63

92161

DAMPER,HOSE CLAMP

92161-0305

$11.93

92161A

DAMPER

92161-0315

$5.33

92171

CLAMP,BRAKE HOSE

92171-0630

$10.30

92171A

CLAMP,BRAKE HOSE

92171-1703

$4.65

92171B

CLAMP,BRAKE HOSE

92171-1819

$5.54

92173

CLAMP,HOLDER CLIP

92173-0868

$3.02

92200

WASHER,6.5X20X1.6

92200-0283

$1.40
