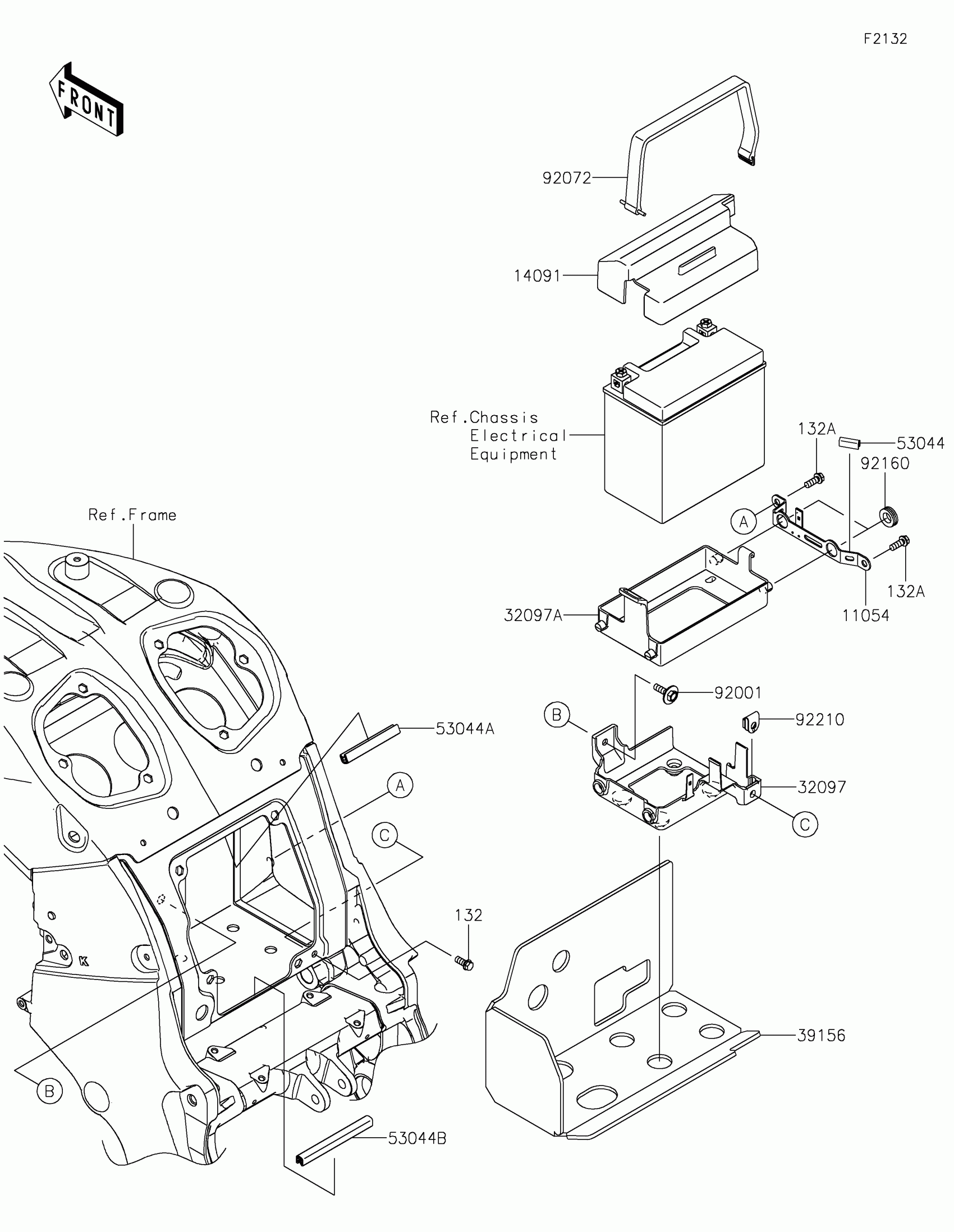

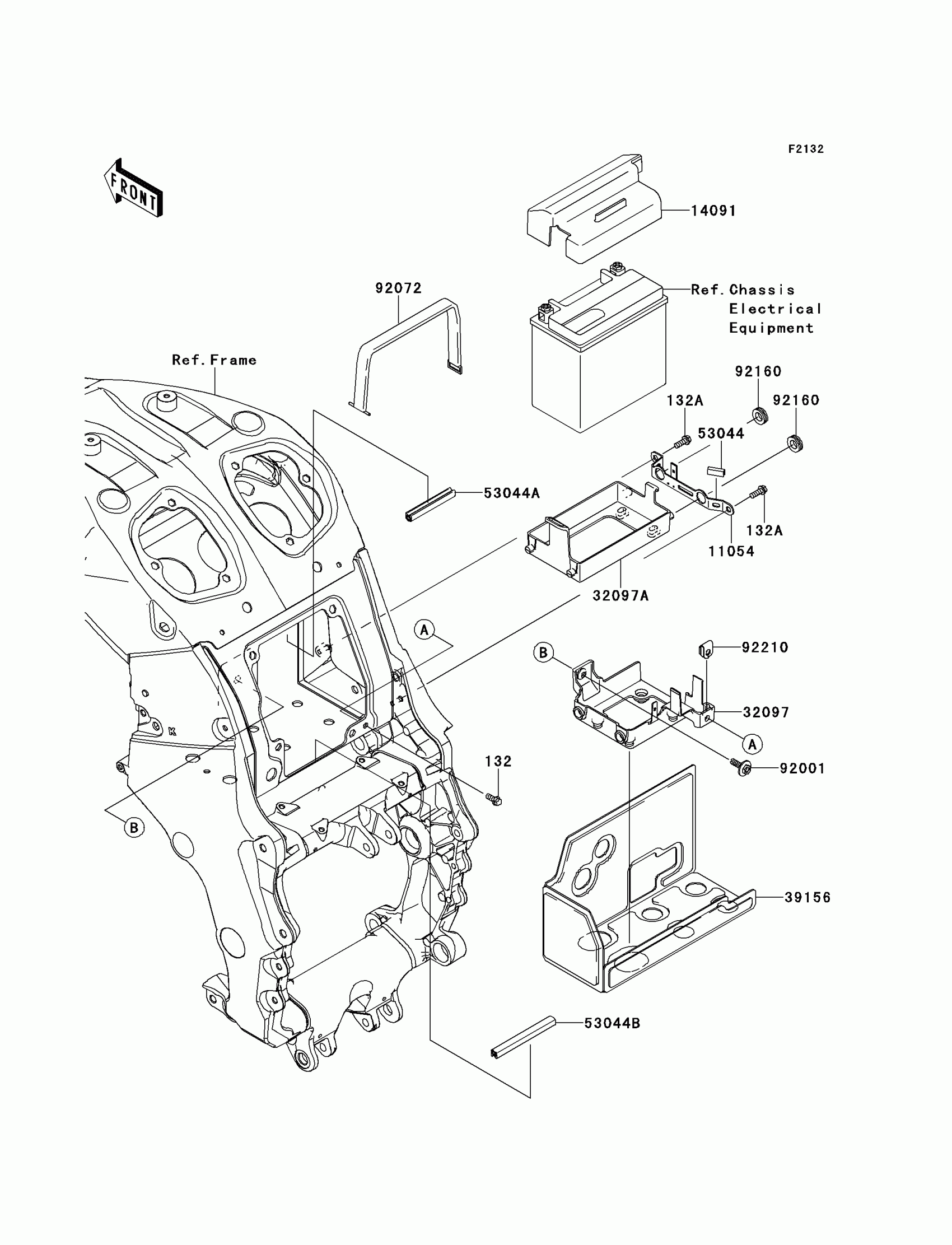

Kawasaki NINJA® ZX™-14R ABS Battery Case Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.46

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

11054

BRACKET,BATTERY

11054-0633

$18.57

14091

COVER,BATTERY,UPP

14091-0533

$26.91

32097

CASE-BATTERY

32097-0012

$13.48

32097A

CASE-BATTERY

32097-0013

$13.48

39156

PAD,BATTERY BOX

39156-0602

$56.67

53044

TRIM,L=20

53044-0021

$3.39

53044A

TRIM

53044-0560

$5.05

53044B

TRIM,L=100

53044-1200

$7.45

92001

BOLT,UPSET-WP,6X22

92001-1774

$3.65

92072

BAND,L=290

92072-1377

$21.39

92160

DAMPER

92160-1278

$4.39

92210

NUT,6MM

92210-0277

$4.92
