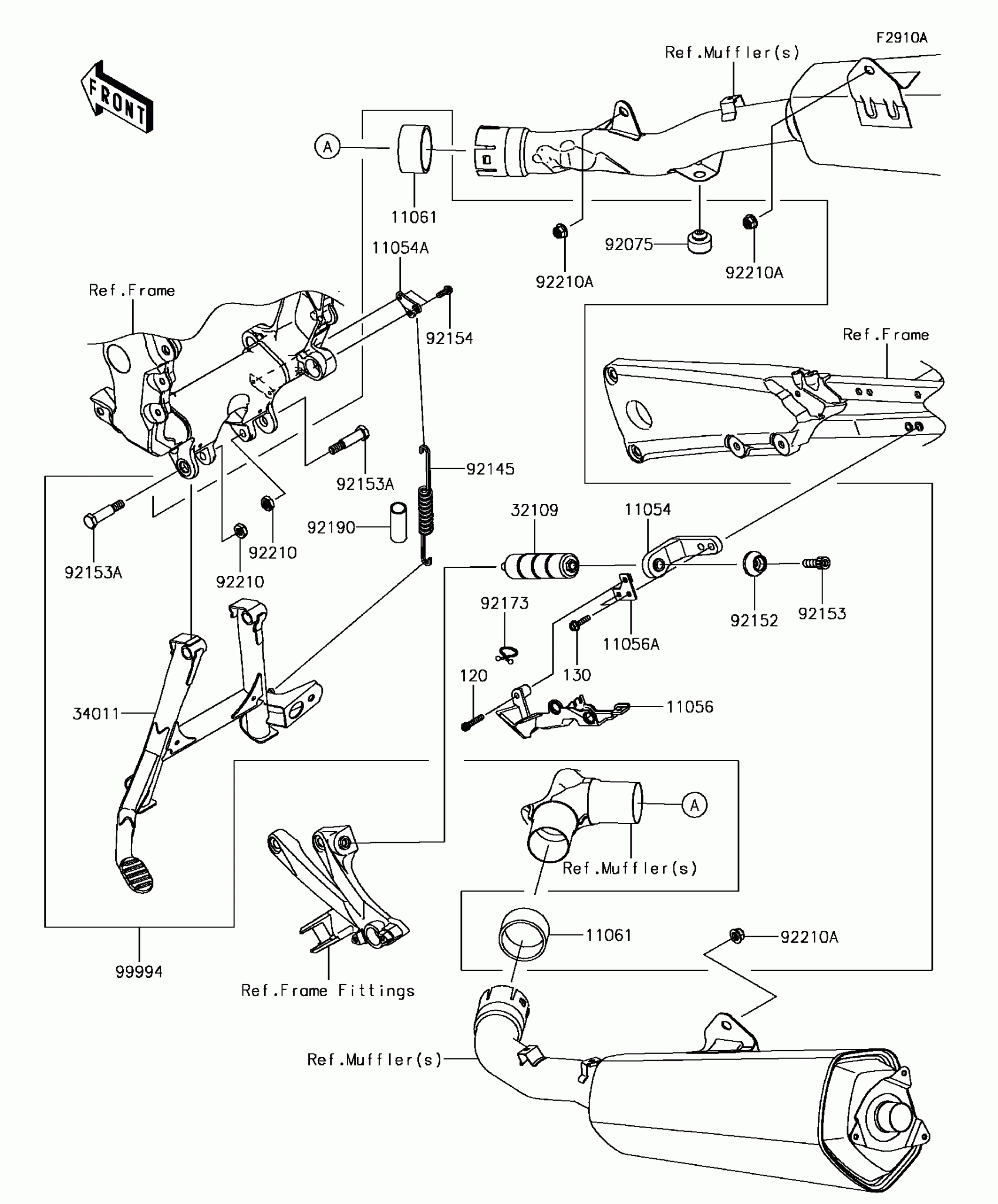

Kawasaki NINJA® ZX™-14R ABS Accessory(Center Stand) Diagram

Description

Price

11054

BRACKET,CENTER STAND GRIP

11054-0452

$63.70

11054A

BRACKET,CENTER STAND SPRING

11054-0744

$16.97

11056

BRACKET

11056-1819

$48.58

11056A

BRACKET

11056-1820

$5.69

11061

GASKET,54X62X30

11061-0448

$21.89

120

BOLT-SOCKET,6X30

120CA0630

$5.77

130

BOLT-FLANGED,6X25

130BA0625

$1.20

32109

GRIP-FRAME,CENTER STAND

32109-0021

$91.77

34011

STAND-CENTER

34011-0061

$177.54

92075

DAMPER

92075-015

$5.00

92145

SPRING,CENTER STAND

92145-0362

$16.72

92152

COLLAR

92152-0668

$4.78

92153

BOLT,SOCKET,10X30

92153-1524

$7.75

92153A

BOLT,CENTER STAND,10MM

92153-1593

$10.30

92154

BOLT,FLANGED,6X14

92154-1867

$2.15

92173

CLAMP

92173-0848

$3.02

92190

TUBE,16.5X20.5X55

92190-1462

$5.46

92210

NUT,LOCK,10MM

92210-0278

$2.15

92210A

NUT,10X1.25

92210-0316

$11.30

99994

KIT-ACCESSORY,MAIN STAND

99994-0751

$253.07
