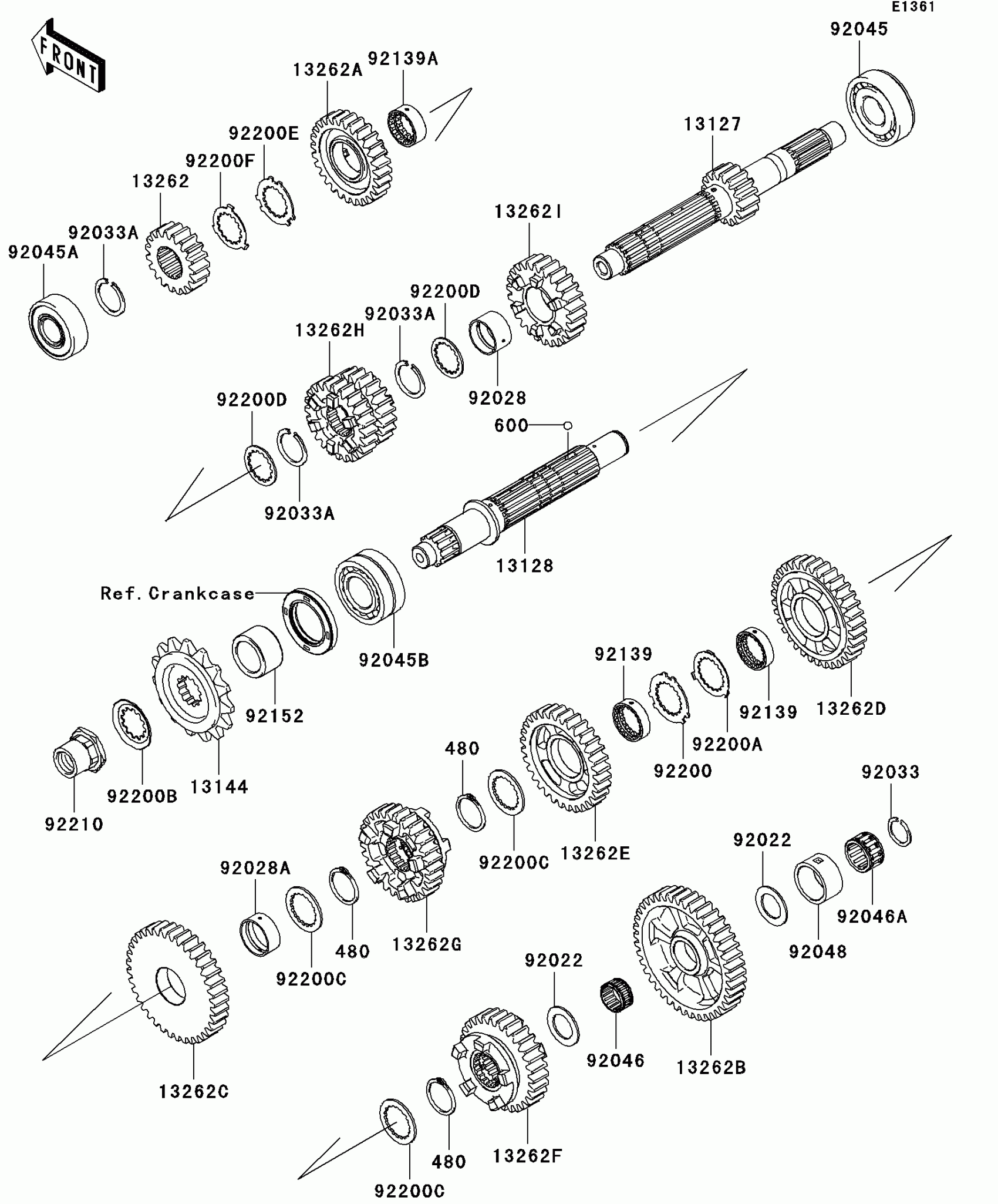

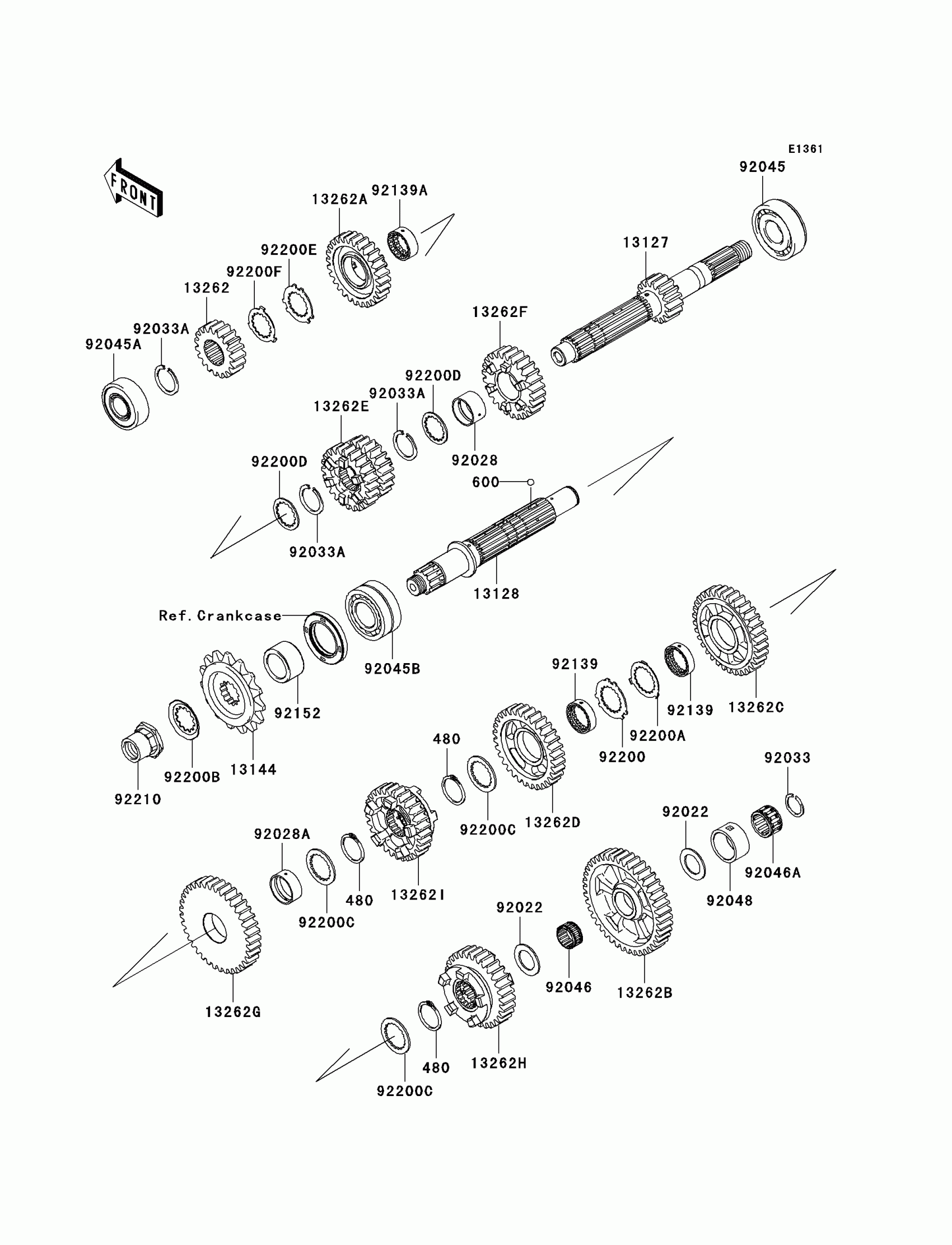

Kawasaki Ninja® ZX™-14 Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,16T

13127-0036

$346.47

13128

SHAFT-TRANSMISSION OUTPUT

13128-0035

$291.30

13144

SPROCKET-OUTPUT,17T

13144-0040

$48.12

13262

GEAR,INPUT 2ND,19T

13262-0303

$84.82

13262A

GEAR,INPUT TOP,28T

13262-0306

$128.41

13262B

GEAR,OUTPUT LOW,42T

13262-0307

$157.33

13262C

GEAR,OUTPUT 2ND,37T

13262-0308

$157.33

13262D

GEAR,OUTPUT 3RD,34T

13262-0309

$129.87

13262E

GEAR,OUTPUT 4TH,32T

13262-0310

$129.87

13262F

GEAR,OUTPUT 5TH,30T

13262-0311

$185.38

13262G

GEAR,OUTPUT TOP,29T

13262-0312

$157.33

13262H

GEAR,INPUT 3RD&4TH,22T&24T

13262-0417

$214.37

13262I

GEAR,INPUT 5TH,26T

13262-0421

Unavailable

480

CIRCLIP

480J2900

$6.22

600

BALL-STEEL,5/32

600A0500

$0.81

92022

WASHER,22.3X35X1.6

92022-212

$9.91

92028

BUSHING

92028-1935

$21.19

92028A

BUSHING

92028-1937

$14.83

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92033A

RING-SNAP,T=1.5

92033-1249

$4.96

92045

BEARING-BALL,830045-5SH2

92045-0047

$36.26

92045A

BEARING-BALL,DG2152RDDSH2

92045-0048

$41.98

92045B

BEARING-BALL,DAC2857NSSH6CS9

92045-0049

$98.33

92046

BEARING-NEEDLE,K22X26X13

92046-0018

$20.44

92046A

BEARING-NEEDLE,K22X30X16.8X2

92046-1268

$19.66

92048

RACE

92048-0004

$25.79

92139

BUSHING,GEAR,3RD&4TH OUT

92139-0127

$28.37

92139A

BUSHING,GEAR,6TH IN

92139-0128

$32.51

92152

COLLAR

92152-0326

$35.54

92200

WASHER,27.5X43X1.5

92200-0255

$6.07

92200A

WASHER,27.5X39.7X1.0

92200-0256

$6.07

92200B

WASHER,23.9X45X1.0

92200-0260

$6.07

92200C

WASHER,TOOTHED,28X40X2

92200-1277

$11.99

92200D

WASHER,25.5X35.5X1.5

92200-1340

$6.47

92200E

WASHER,25.8X40.5X1.5

92200-1522

$4.83

92200F

WASHER,25.2X37.0X1.0

92200-1523

$6.36

92210

NUT,20X1.5

92210-0237

$37.85
