Throttle

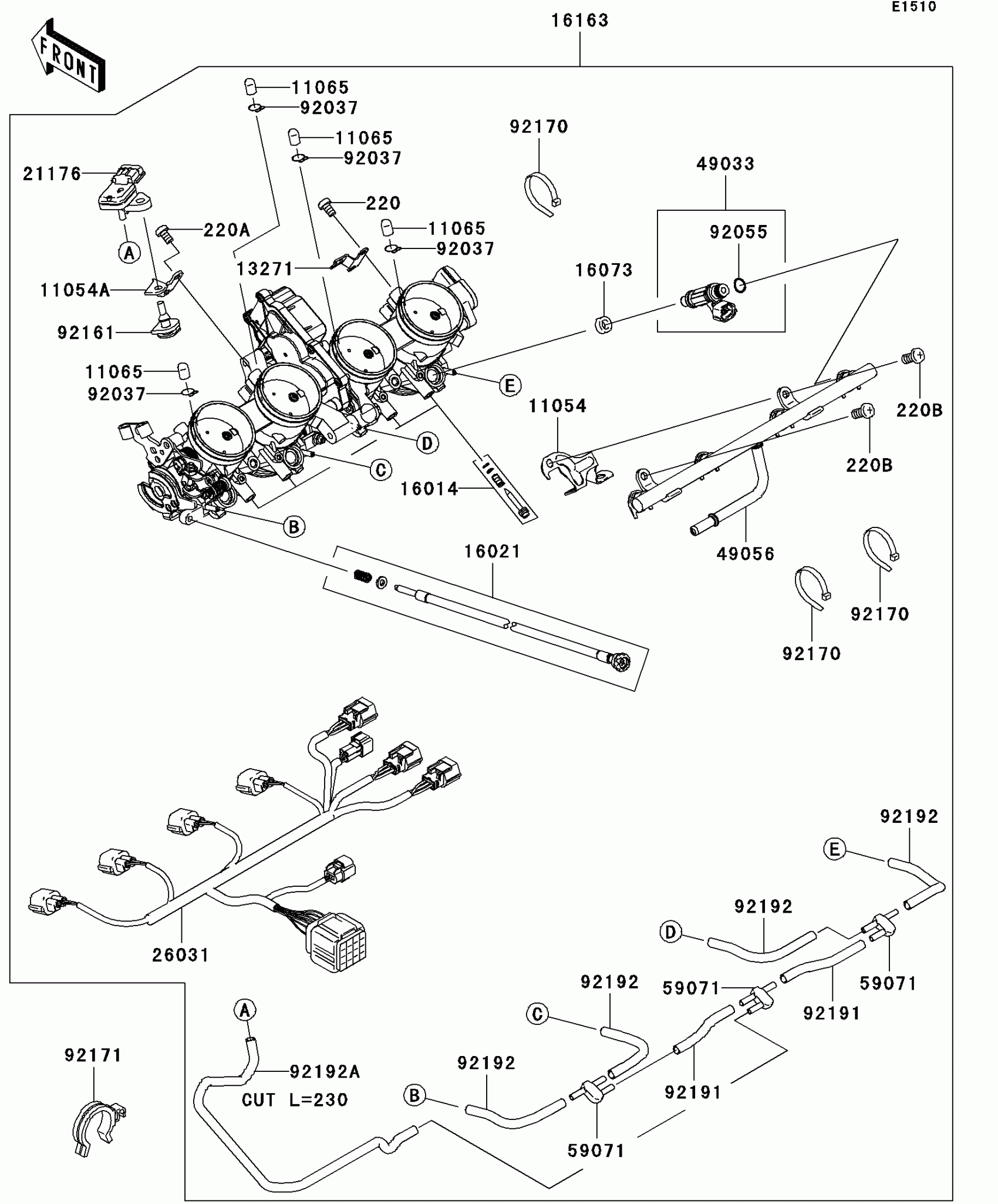

Kawasaki NINJA® ZX™-14 Throttle Diagram
#
Description
Price
220
SCREW-PAN-CROS,5X6
220AA0506
$2.24
220A
SCREW-PAN-CROS,5X8
220AA0508
$0.47
220B
SCREW-PAN-CROS,6X12
220AA0612
$1.19
11054
BRACKET
11054-0554
$24.54
11054A
BRACKET
11054-0556
$22.29
13271
PLATE
13271-0792
$13.60
16014
SCREW-PILOT AIR
16014-0005
$30.76
16021
SCREW-THROTTLE STOP
16021-0007
$118.28
16073
INSULATOR,INJECTER
16073-1123
$9.73
16163
THROTTLE-ASSY,44EIDW
16163-0108
$2,030.60
21176
SENSOR,PRESSURE
21176-0058
$141.24
26031
HARNESS
26031-0547
$190.88
49033
NOZZLE-INJECTION
49033-0011
$92.32
49056
PIPE-INJECTION
49056-0017
$211.69
92005
FITTING
92005-1380
$16.65
92037
CLAMP,BREATHER TUBE
92037-174
$2.00
92055
RING-O,INJECTION NOZZLE
92055-1622
$1.95
92066
PLUG,FITTING
92066-1549
$7.82
92161
DAMPER
92161-0041
$5.00
92170
CLAMP
92170-3749
$3.57
92171
CLAMP
92171-0687
$11.30
92171A
CLAMP
92171-1680
$4.86
92192
TUBE,3.2X7.4X115
92192-0131
$4.11
92192A
TUBE,3.2X7.4X60
92192-0576
$4.87
92192B
TUBE,3.2X7.4X175
92192-0577
$8.60
92192C
TUBE,3.2X7.4X50
92192-0578
$4.87
92192D
TUBE,3.2X7.4X160
92192-0579
$8.60
