2011 Kawasaki Ninja® ZX™-14 Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2011 Kawasaki Ninja® ZX™-14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

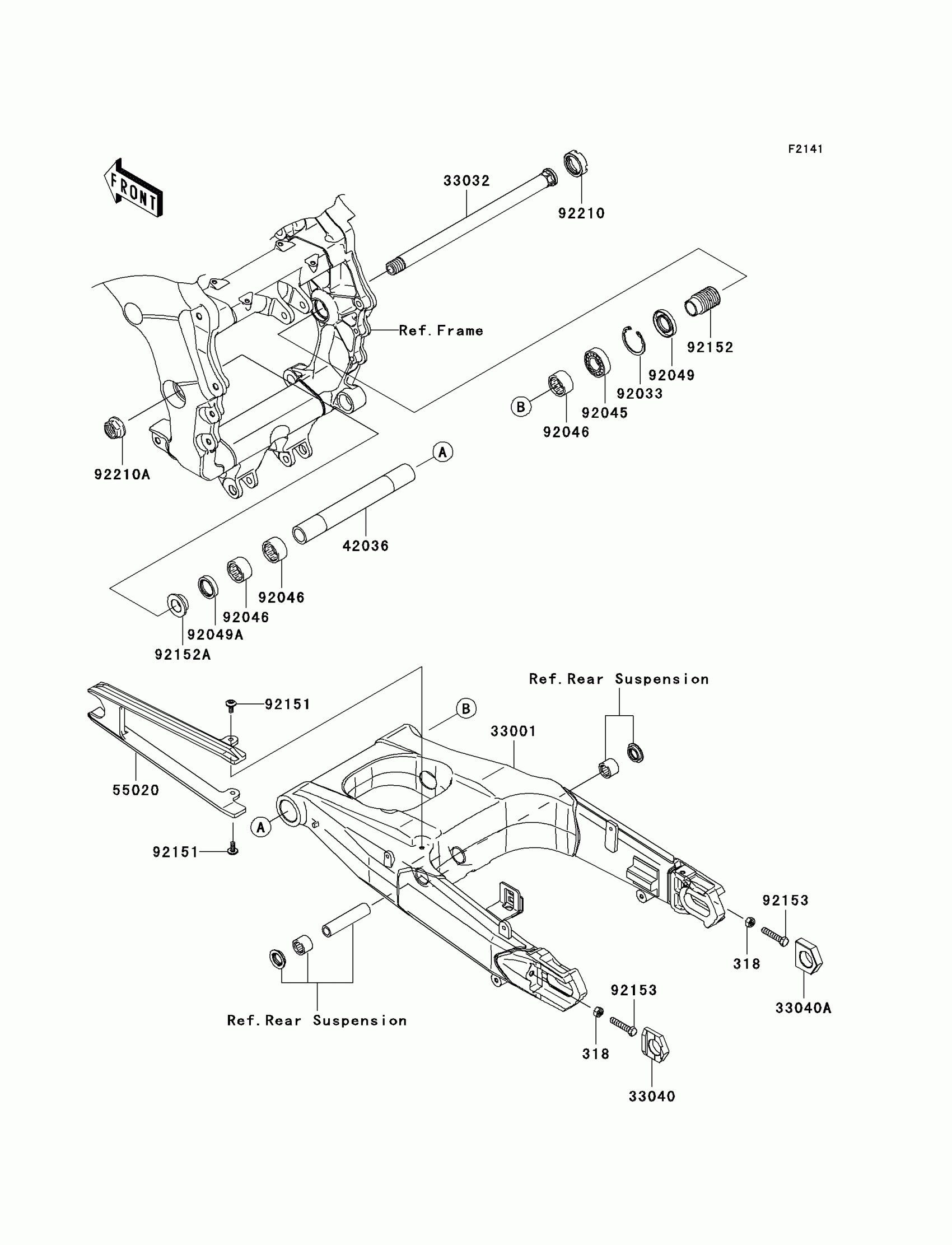

2011 Kawasaki Ninja® ZX™-14 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

318

NUT-HEX-SMALL,8MM

318BA0800

1
Out of stock

33001

ARM-COMP-SWING,BLACK

33001-0216-18R

1
Out of stock

33032

SHAFT-SWING ARM

33032-0013

1
Out of stock

33040

ADJUSTER-CHAIN,LH

33040-0017

1
Out of stock

33040A

ADJUSTER-CHAIN,RH

33040-0018

1
Out of stock

42036

SLEEVE,SWING ARM PIVOT,L=226

42036-1341

1
Out of stock

55020

GUARD,CHAIN

55020-0206

1

$41.98

In stock

92033

RING-SNAP,42MM

92033-1041

1
Out of stock

92045

BEARING-BALL,6004UL11

92045-0017

1
Out of stock

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

1
Out of stock

92049

SEAL-OIL,MHSA25X42X6

92049-1314

1
Out of stock

92049A

SEAL-OIL,MHSA25X34X7

92049-1352

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92152

COLLAR,SWING ARM,RH,L=47

92152-0362

1
Out of stock

92152A

COLLAR,SWING ARM,L=12.5

92152-1234

1
Out of stock

92153

BOLT,8X55

92153-1407

1
Out of stock

92210

NUT,30MM

92210-0134

1
Out of stock

92210A

NUT,FLANGED,20MM

92210-0320

1
Out of stock
