2011 Kawasaki Ninja® ZX™-14 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2011 Kawasaki Ninja® ZX™-14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

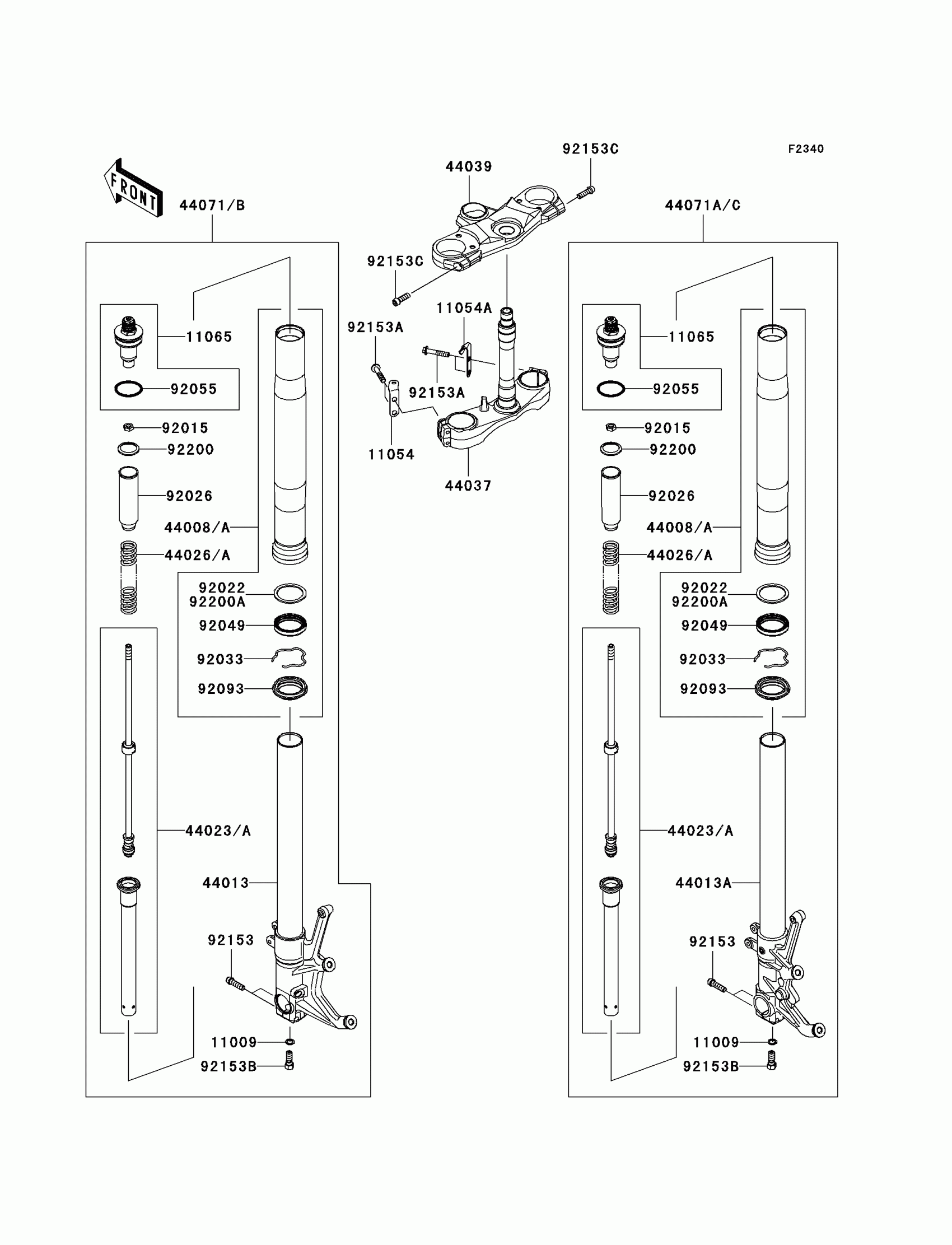

2011 Kawasaki Ninja® ZX™-14 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X15X1.5

11009-1325

1
Out of stock

11054

1

$9.93

In stock

11054A

1

$9.93

In stock

11065

CAP

11065-0147

1
Out of stock

44008A

PIPE-FORK OUTER,GOLD

44008-0052-ES

1
Out of stock

44013

PIPE-FORK INNER,LH,F.S.BLACK

44013-0093-11E

1
Out of stock

44013A

PIPE-FORK INNER,RH,F.S.BLACK

44013-0094-11E

1
Out of stock

44023A

CYLINDER-SET-FORK

44023-0094

1
Out of stock

44026A

SPRING-FRONT FORK

44026-0158

1
Out of stock

44037

HOLDER-FORK UNDER

44037-0039

1
Out of stock

44039

HOLDER-FORK UPPER,F.S.BLACK

44039-0060-11E

1
Out of stock

44071B

DAMPER-ASSY,FORK,LH,GOLD

44071-5118

1
Out of stock

44071C

DAMPER-ASSY,FORK,RH,GOLD

44071-5119

1
Out of stock

92015

NUT

92015-1905

1
Out of stock

92022

WASHER

92022-1299

1
Out of stock

92026

SPACER,FORK

92026-0045

1
Out of stock

92033

RING-SNAP

92033-1077

1
Out of stock

92049

SEAL-OIL,FORK OUTER TUBE

92049-1522

1
Out of stock

92055

RING-O,FORK,AIR TUBE

92055-1333

1
Out of stock

92093

SEAL,FORK OUTER TUBE

92093-1480

1
Out of stock

92153

BOLT,SOCKET,8X40

92153-0006

1
Out of stock

92153A

BOLT,FLANGED,8X40

92153-0484

1
Out of stock

92153B

BOLT,SOCKET,10X25

92153-0548

1
Out of stock

92153C

BOLT,SOCKET,8X27

92153-0768

1
Out of stock

92200

WASHER

92200-0085

1
Out of stock
