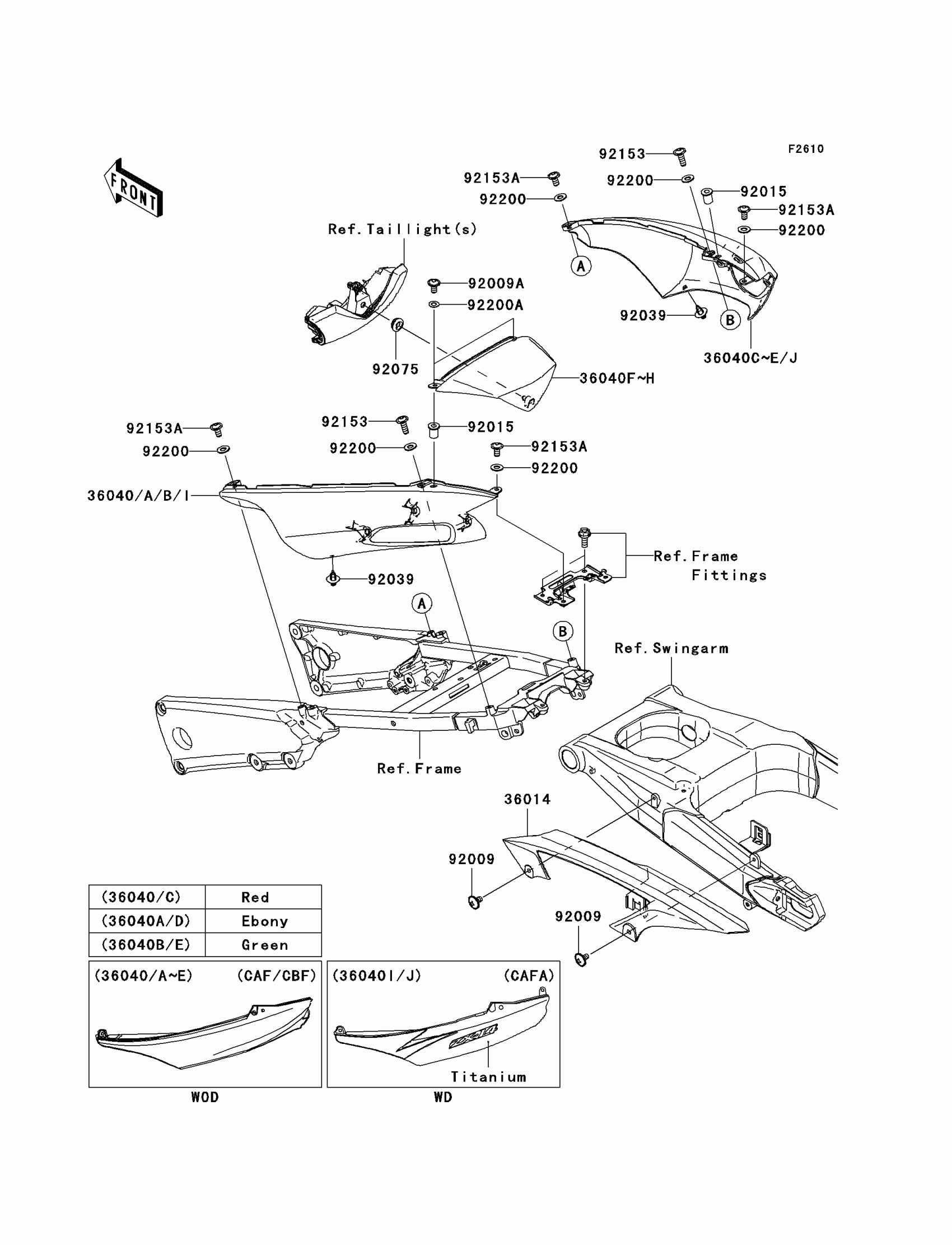

Kawasaki Ninja® ZX™-14 Side Covers/Chain Cover Diagram

Description

Price

36014

CASE-CHAIN

36014-0030

$75.97

36040A

COVER-TAIL,LH,M.BLACK

36040-0033-17K

$296.75

36040B

COVER-TAIL,LH,SILVER

36040-0033-17M

$309.90

36040E

COVER-TAIL,LH,C.P.BLUE

36040-0033-723

$309.90

36040G

COVER-TAIL,RH,M.BLACK

36040-0034-17K

$296.75

36040H

COVER-TAIL,RH,SILVER

36040-0034-17M

$309.90

36040K

COVER-TAIL,RH,C.P.BLUE

36040-0034-723

$309.90

36040M

COVER-TAIL,CNT,M.D.BLACK

36040-0058-17K

$103.29

36040N

COVER-TAIL,CNT,SILVER

36040-0058-17M

$114.05

36040R

COVER-TAIL,CNT,C.P.BLUE

36040-0058-723

$114.05

92009

SCREW,6X10

92009-1661

$3.29

92009A

SCREW,5X16

92009-1909

$1.47

92015

NUT,WELL,5MM

92015-1757

$5.58

92039

RIVET

92039-0015

$2.14

92075

DAMPER,6X16X7

92075-1011

$5.61

92153

BOLT,6X18

92153-0478

$1.81

92153A

BOLT,SOCKET,6X12

92153-1617

$1.04

92200

WASHER,6.5X14X1

92200-1388

$1.76

92200A

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.20
