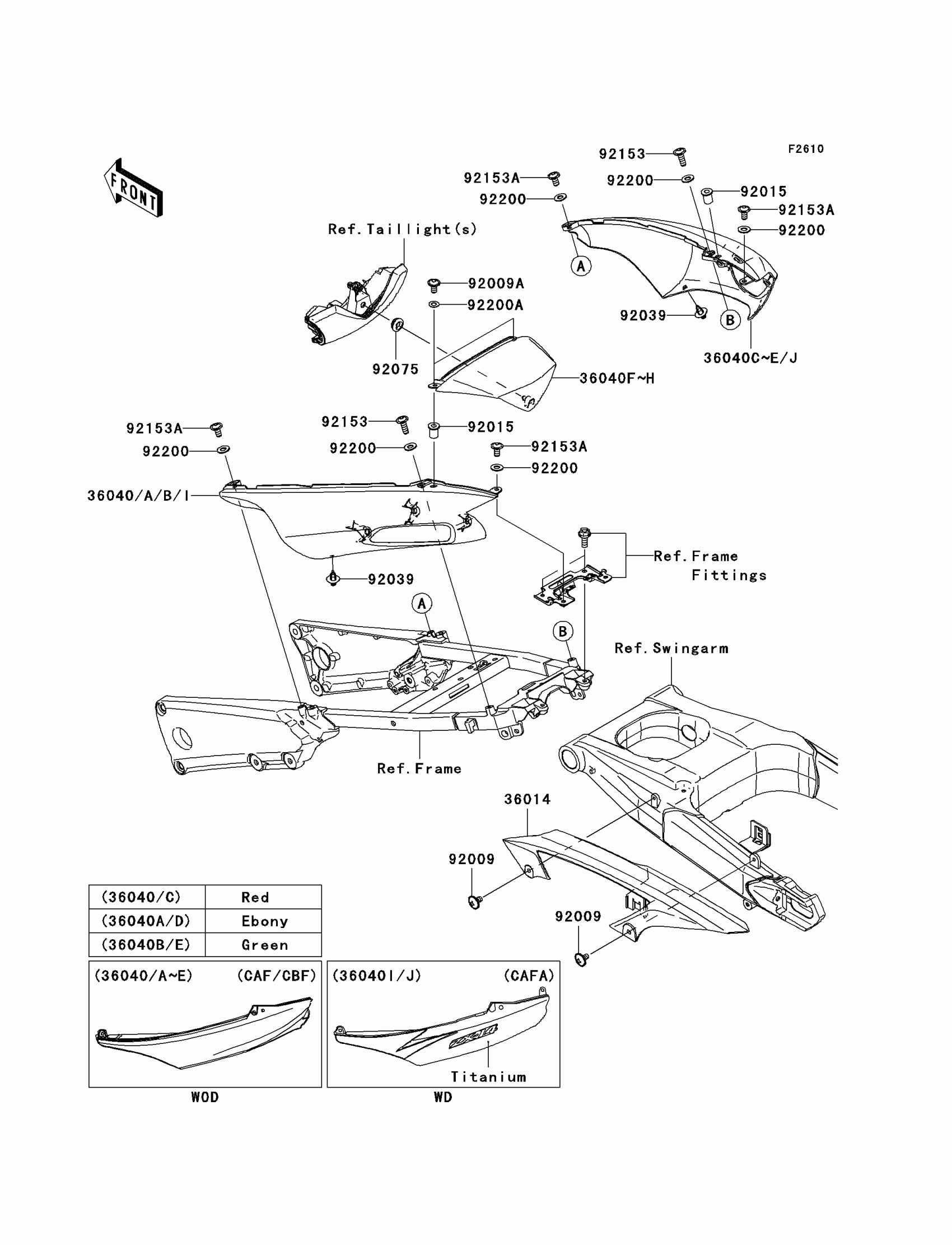

Kawasaki Ninja® ZX™-14 Side Covers/Chain Cover Diagram

Description

Price

36014

CASE-CHAIN

36014-0030

$74.54

36040A

COVER-TAIL,LH,M.BLACK

36040-0033-17K

$290.73

36040B

COVER-TAIL,LH,SILVER

36040-0033-17M

$290.74

36040E

COVER-TAIL,LH,C.P.BLUE

36040-0033-723

$290.74

36040G

COVER-TAIL,RH,M.BLACK

36040-0034-17K

$290.73

36040H

COVER-TAIL,RH,SILVER

36040-0034-17M

$290.74

36040K

COVER-TAIL,RH,C.P.BLUE

36040-0034-723

$290.74

36040M

COVER-TAIL,CNT,M.D.BLACK

36040-0058-17K

$96.96

36040N

COVER-TAIL,CNT,SILVER

36040-0058-17M

$106.87

36040R

COVER-TAIL,CNT,C.P.BLUE

36040-0058-723

$106.87

92009

SCREW,6X10

92009-1661

$4.31

92009A

SCREW,5X16

92009-1909

$2.03

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0015

$3.07

92075

DAMPER,6X16X7

92075-1011

$7.33

92153

BOLT,6X18

92153-0478

$2.55

92153A

BOLT,SOCKET,6X12

92153-1617

$1.34

92200

WASHER,6.5X14X1

92200-1388

$2.46

92200A

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.59
